SECTION 3: OSCOR MANUAL OPERATION
31 REI OSC-5000E
This is an example of an individual signal can easily be viewed by narrowing the
frequency span and adjusting the frequency display.

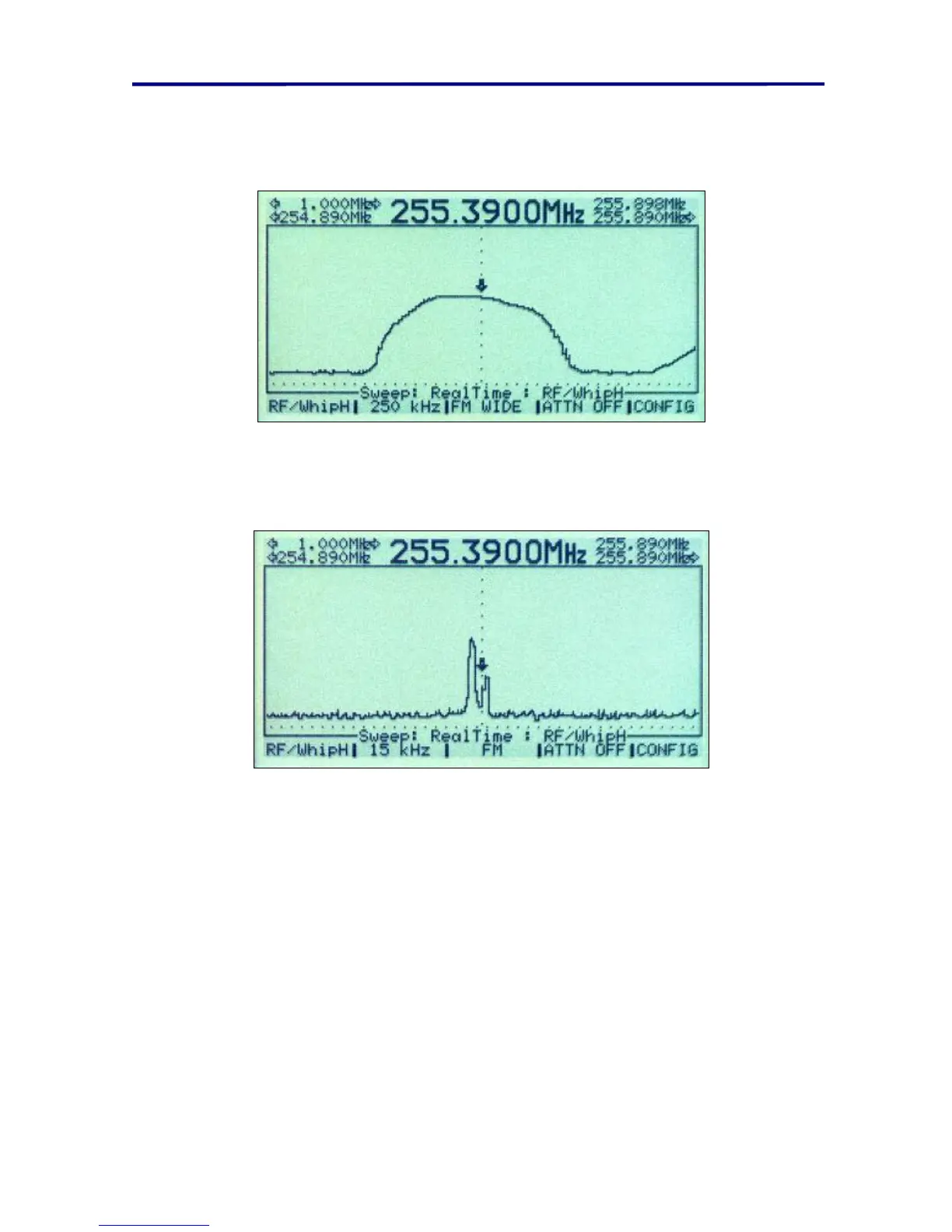

FIGURE 18 SWEEP MODE SCREEN DISPLAY WITH WIDE BANDWIDTH
Furthermore, the narrow 15 kHz and 6 kHz are designed primarily for narrow band FM
and AM signals. In the above example, these filters will indicate if two signals are hiding
within a wide filter profile.
FIGURE 19 SWEEP MODE SCREEN DISPLAY WITH NARROW BANDWIDTH
Figure 19 shows that upon closer inspection, using a narrow bandwidth, the above signal
contains a “snuggled” transmitter.
