SECTION 1: INTRODUCTION AND EQUIPMENT DESCRIPTION
REI OSC-5000E 8
Storage Compartment and Accessories

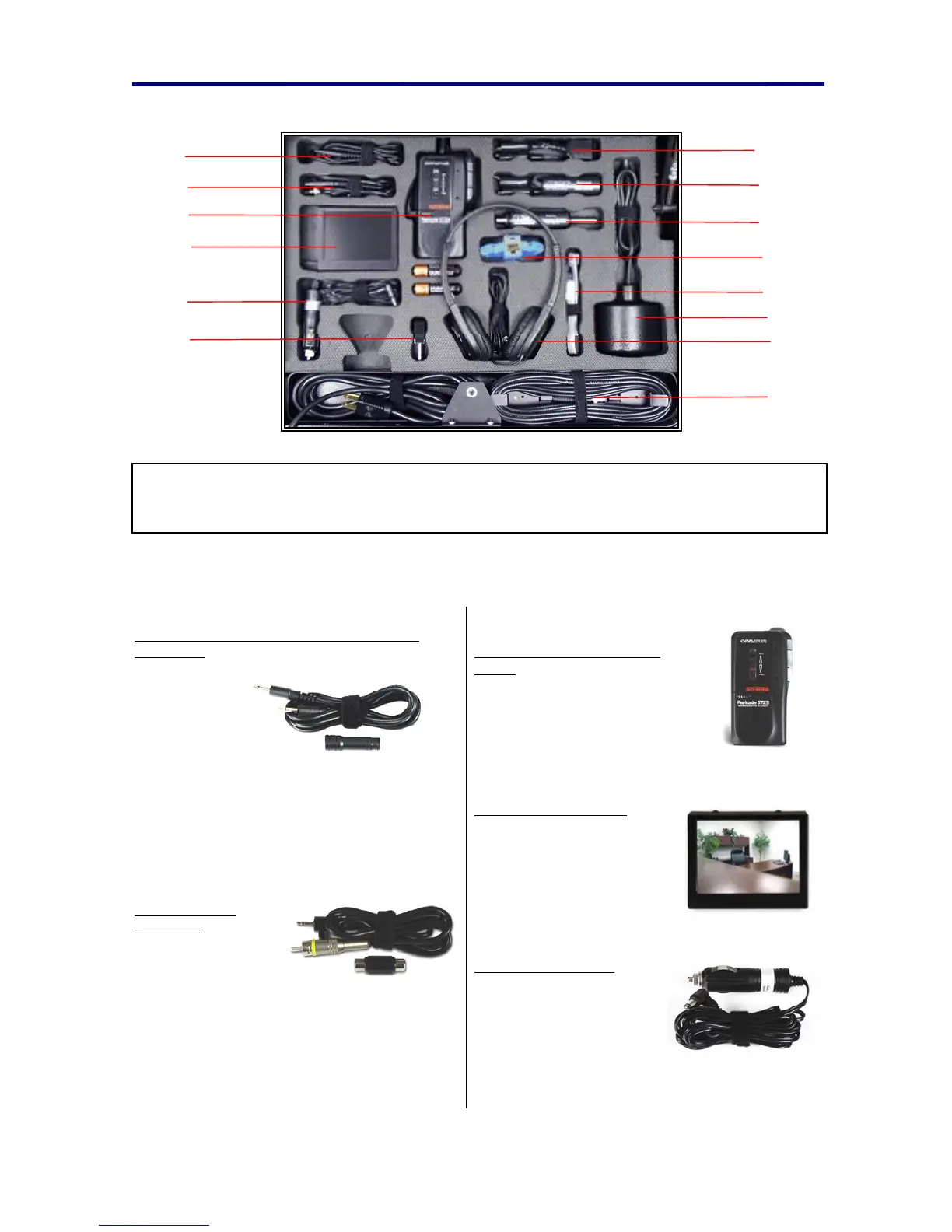

FIGURE 7 STORAGE COMPARTMENT
WARNING: Antenna Array damage can occur if packaged improperly. Be sure to
replace each item as suggested above. Do not force when closing.
NOTE: The storage compartment shown might be different from others due to the
standard and/or optional accessories chosen.
1. Audio Patch Cord 4 ft (1.22 M) and Miniature
Microphone
The Audio Patch
Cord with 3.5
mm male-to-
male
connectors is
used with the
Balanced Audio
Coupler, Mini Microphone, or inputs to the EXT REF
audio input. The may Miniature Microphone be used
with the Audio Patch Cord to provide a remote
microphone input.
2. OSCOR Video
Patch Cord
This patch cord allows
received video signals
to be fed directly into
an alternative video monitor or a video recorder.
Video output is provided in a standard RCA plug.
3. OSCOR Audio Recorder and
Cables
An audio micro-cassette recorder
connects directly into the connector
tray to use the OSCOR audio
recorder functions.
4. OSCOR Video Monitor
This allows the OSCOR to
provide viewing of video signals
and can be used for detection of
covert surveillance cameras. It
supports NTSC, PAL and SECAM
(See page 65 Detecting Video
Threats.)
5. 12 VDC Car Adapter
14
15
13
10
11
,
12
9
8
7
6
5
4
3
2
1
