Table 1. Main Instrument Panel Controls and Indicators. - Continued
Key
Control/
Indicator Function
32 BLACK OUT
LIGHTS Switch
Two-position switch used to control BLACK OUT DRIVE and
BLACK OUT MARKER switches. When turned on, other
lighting is inoperative.
33
BLACK
OU T
DRIVE
BLACK
OU T
MARKE R
BLACK
OU T
LIGHTS
CHECK
GAUGES
CHECK
ENGINE
AIR
LOW
CROSS COUNTRY
HIGHWAY
MUD SAND & SNOW
9 MAX SPEED 45 MPH)
(MAX SPEED 30 MPH)
( MAX SPEED 15 MPH)
( MAX SPEED 5 MPH)
EMERGENCY
OVERSPEED
LOW AI R
START
CTI OFF - ON
CTI CONTROLLER MODEL 101
TRAILER
AIR SUPPLY
ENGINE
OFF
ON
START
FILTER MINDE R
AIR CLEANER RESTRICTION
RESET
H O
2
—20—
—15—
—10—
— 8
—
PARKING
BRAKE
35 34
ENG
PREHEAT
36

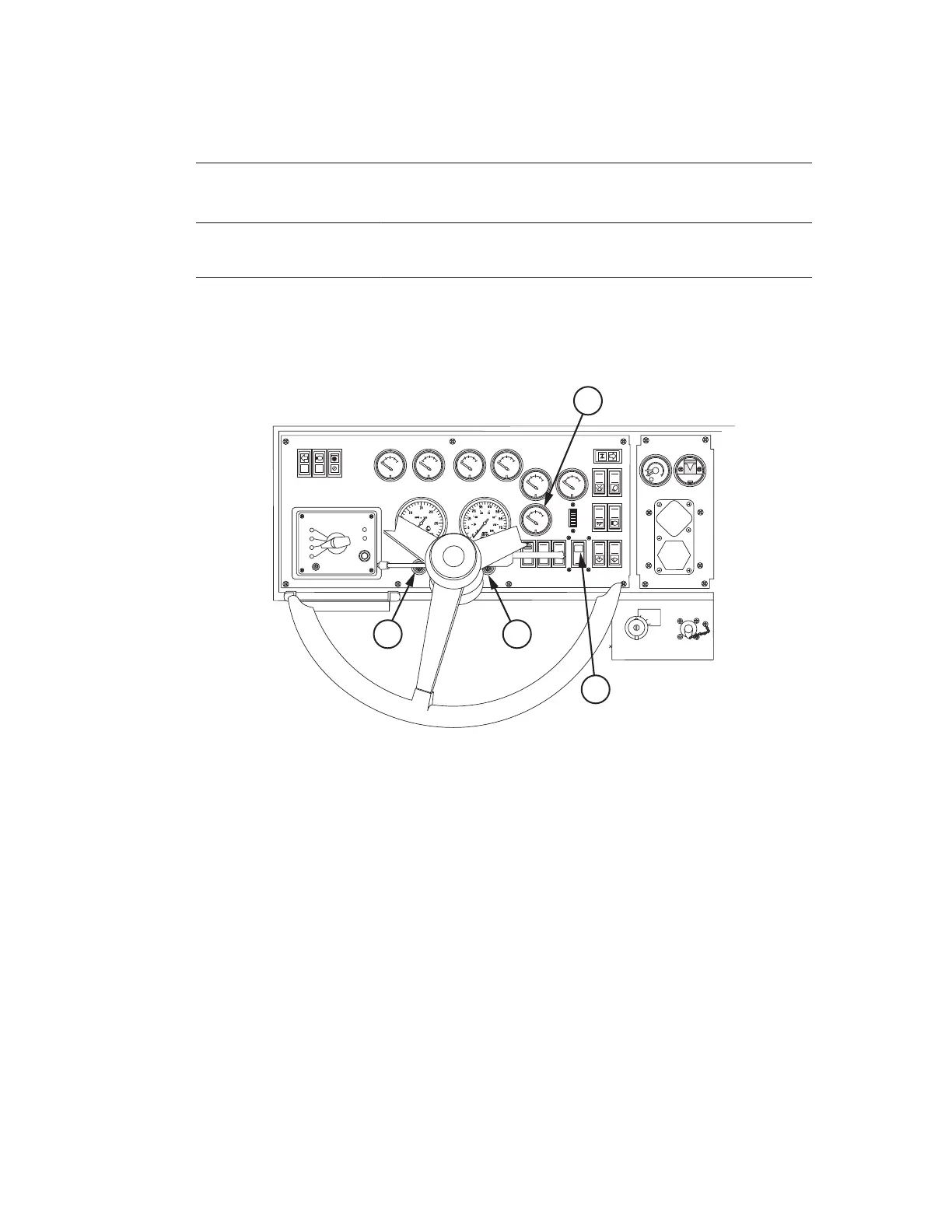

Figure 3.
33 FUEL Gauge Shows amount of fuel in fuel tank.
34 Warning Alarm Sounds when engine coolant level is too low, engine (oil or
coolant) temperature is too high, or oil pressure is too low.
Indicator lights at the same time alarm sounds.
35 Warning Alarm Sounds when air system pressure is below 60 psi (414 kPa).
TM 9-2320-360-10 0015
