Table 1. Exterior-Mounted Controls and Indicators - Passenger Side.
Key
Control/
Indicator Function
1
2
4
5
3

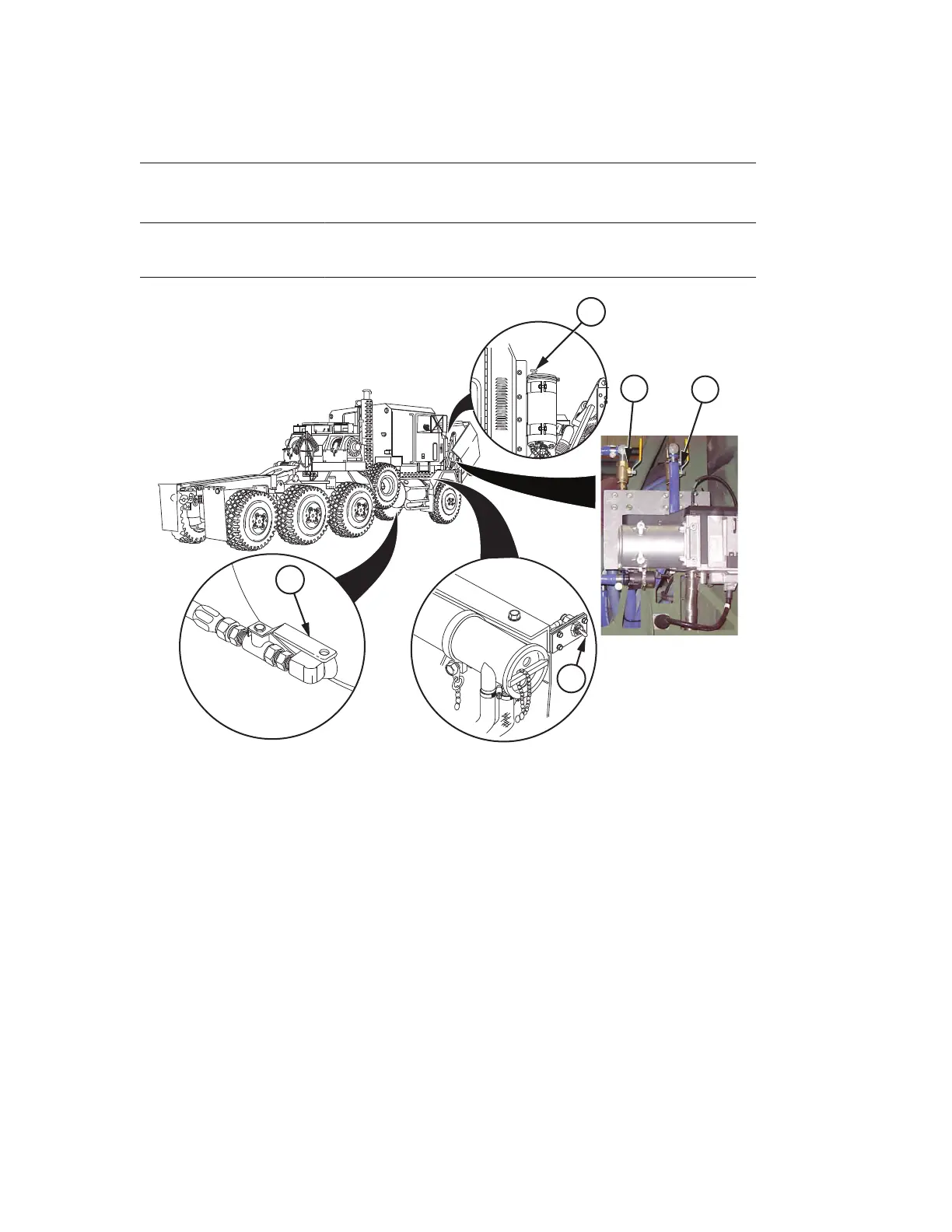

Figure 1.
1 M12 EMI Arctic
Heater Outlet
Valve (if
equipped)
Move valve handle counterclockwise to connect arctic heater
outlet to engine cooling circuit. Move valve handle clockwise
to isolate arctic heater outlet from engine cooling circuit.
2 M12 EMI Arctic
Heater Inlet
Valve (if
equipped)
Move valve handle counterclockwise to connect arctic heater
inlet to engine cooling circuit. Move valve handle clockwise to
isolate arctic heater inlet from engine cooling circuit.
