TOW BAR DISCONNECTION - Continued
19. Two assistants lift tow bar (5) until lunette eye (19) is clear of pintle hook (18).
20. Drive towing vehicle forward with aid of ground guide. When vehicle is clear, lower
tow bar (5) to ground.
21. Pull latch (21) and close pintle hook (18). Install cotter pin (20) in pintle hook.
22. While two assistants hold leg of tow bar (5), remove cotter pin (13) from pin (14) on
tow eye shackle (15). Remove pin (14) from tow eye shackle.
14
15
13
5
11
10
12

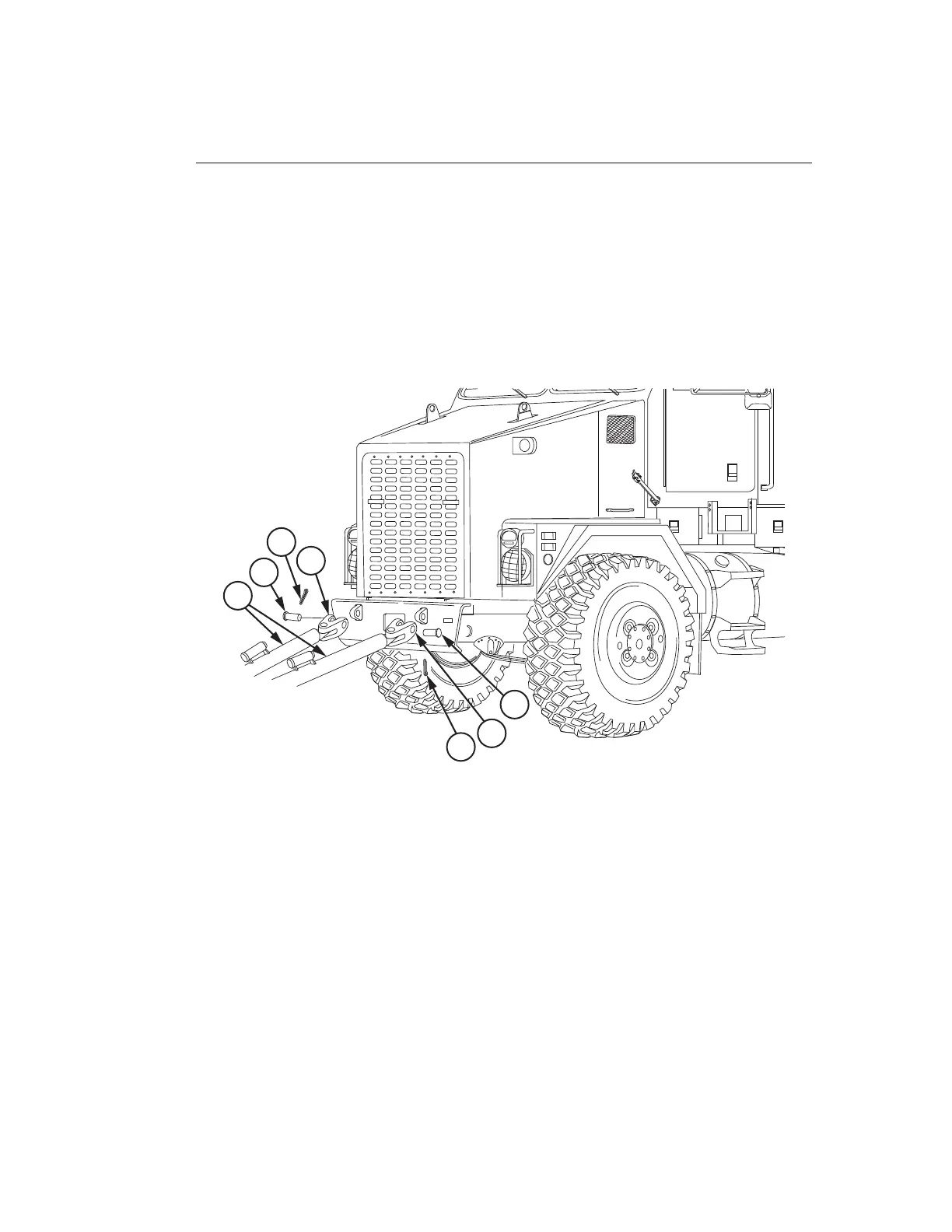

Figure 14.
23. While two assistants hold leg of tow bar (5), remove cotter pin (10) from pin (11) on
tow eye shackle (12). Remove pin from tow eye shackle.
24. Install pin (14) in tow eye shackle (15). Install cotter pin (13) in pin.
25. Install pin (11) in tow eye shackle (12). Install cotter pin (10) in pin.
26. Return tow bar (5) to unit maintenance.
27. Remove cotter pins (1) from pins (2) on front tow eye shackles (3).
TM 9-2320-360-10 0070
0070-15
