Oshkosh M1070 - Prepare HET for Towing Using M984 Wrecker

PREPARE TOWING VEHICLE USING TOW BAR - Continued
BLACK
OUT
DRIVE
BLACK
OUT
MARKER
BLACK
OUT
LIGHTS
CHECK
GAUGES
CHECK
ENGINE
AIR
LOW
CROSS COUNTRY
HIGHWAY
MUD SAND & SNOW
9 MAX SPEED 45 MPH)
(MAX SPEED 30 MPH)
( MAX SPEED 15 MPH)
( MAX SPEED 5 MPH)
EMERGENCY
OVERSPEED
LOW AIR
START
CTI OFF - ON
CTI CONTROLLER MODEL 101
TRAILER
AIR SUPPLY
ENGINE
OFF
ON
START
FILTER MINDER
AIR CLEANER RESTRICTION
RESET
H O
2
—20—
—15—
—10—
— 8 —
PARKING
BRAKE
1
2

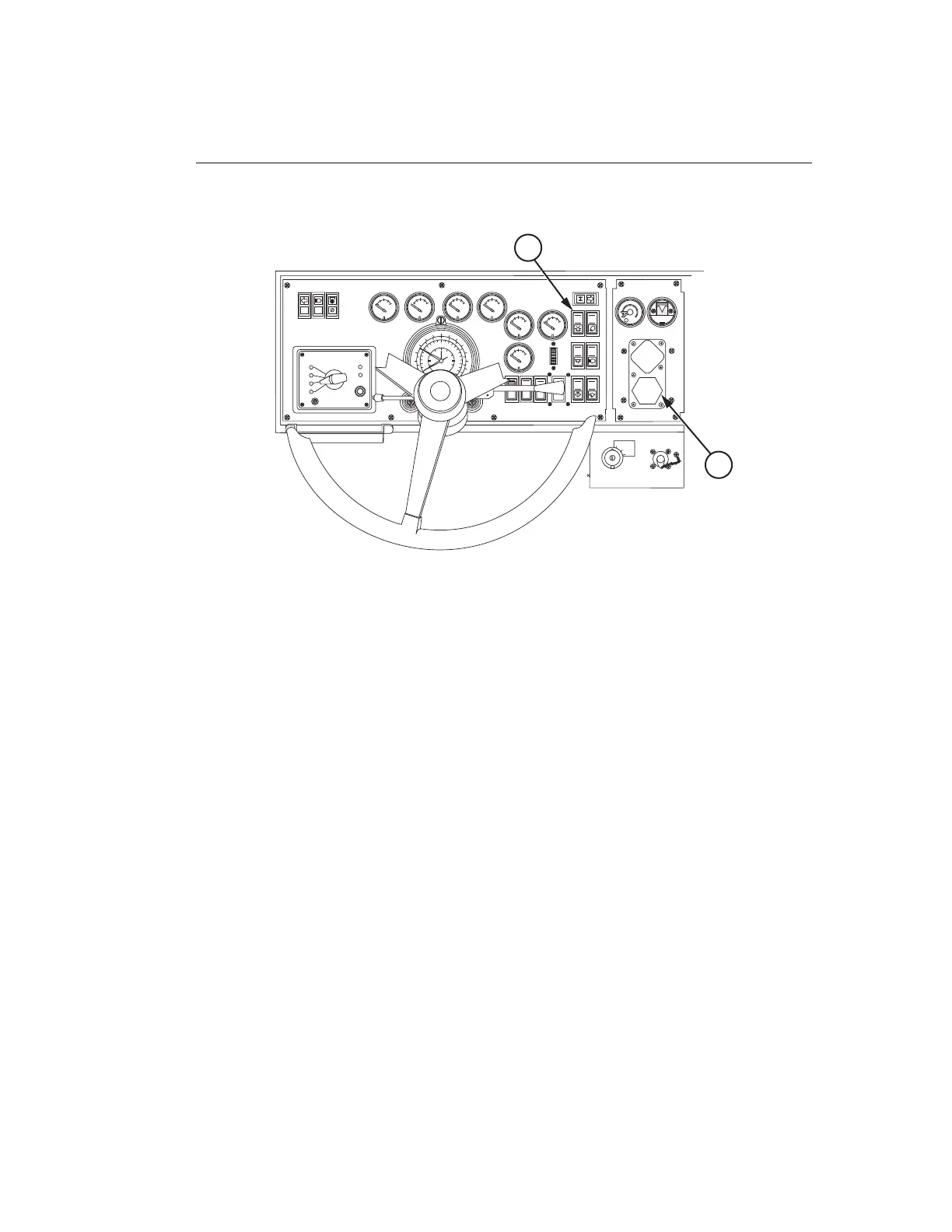

Figure 2.
3. Turn on rotating beacon light switch (2).
PREPARE HET FOR TOWING USING M984 WRECKER
CAUTION
The appropriate propshaft must be removed prior to performing lift and
tow operations. Failure to comply may result in damage to transfer case.
NOTE
Perform Steps (1) and (2) only if towing from the rear.
1. Secure steering wheel with steering column lock pin. (WP 0014)
2. Remove transfer case to axle No. 1 propshaft.
NOTE
Perform Step (3) only if towing from the front.
3. Remove transfer case to axle No. 2 propshaft.
CAUTION
Fold in outside rear view mirrors. Failure to comply may result in damage
to equipment.
TM 9-2320-360-10 0071
0071-3
