CROSS COUNTRY
HIGHWAY
MUD SAND & SNOW
9 MAX SPEED 45 MPH)
(MAX SPEED 30 MPH)
( MAX SPEED 15 MPH)
( MAX SPEED 5 MPH)
EMERGENCY
OVERSPEED
LOW AIR
START
CTI OFF - ON
CTI CONTROLLER MODEL 101
CTIS CONTROLS
BLACK
OUT
DRIVE
BLACK
OUT
MARKER
BLACK
OUT
LIGHTS
CHECK
GAUGES
CHECK
ENGINE
AIR
LOW
CROSS COUNTRY
HIGHWAY
MUD SAND & SNOW
9 MAX SPEED 45 MPH)
(MAX SPEED 30 MPH)
( MAX SPEED 15 MPH)
( MAX SPEED 5 MPH)
EMERGENCY
OVERSPEED
LOW AIR
START
CTI OFF - ON
CTI CONTROLLER MODEL 101
TRAILER
AIR SUPPLY
ENGINE
OFF
ON
START
FILTER MINDER
AIR CLEANER RESTRICTION
RESET
H O
2
—20—
—15—
—10—
— 8 —
PARKING
BRAKE
INSTRUMENT PANEL W/ TACHOGRAPH SHOWN,
INSTRUMENT PANEL W/ SPEEDOMETER & TACHOMETER SIMILAR

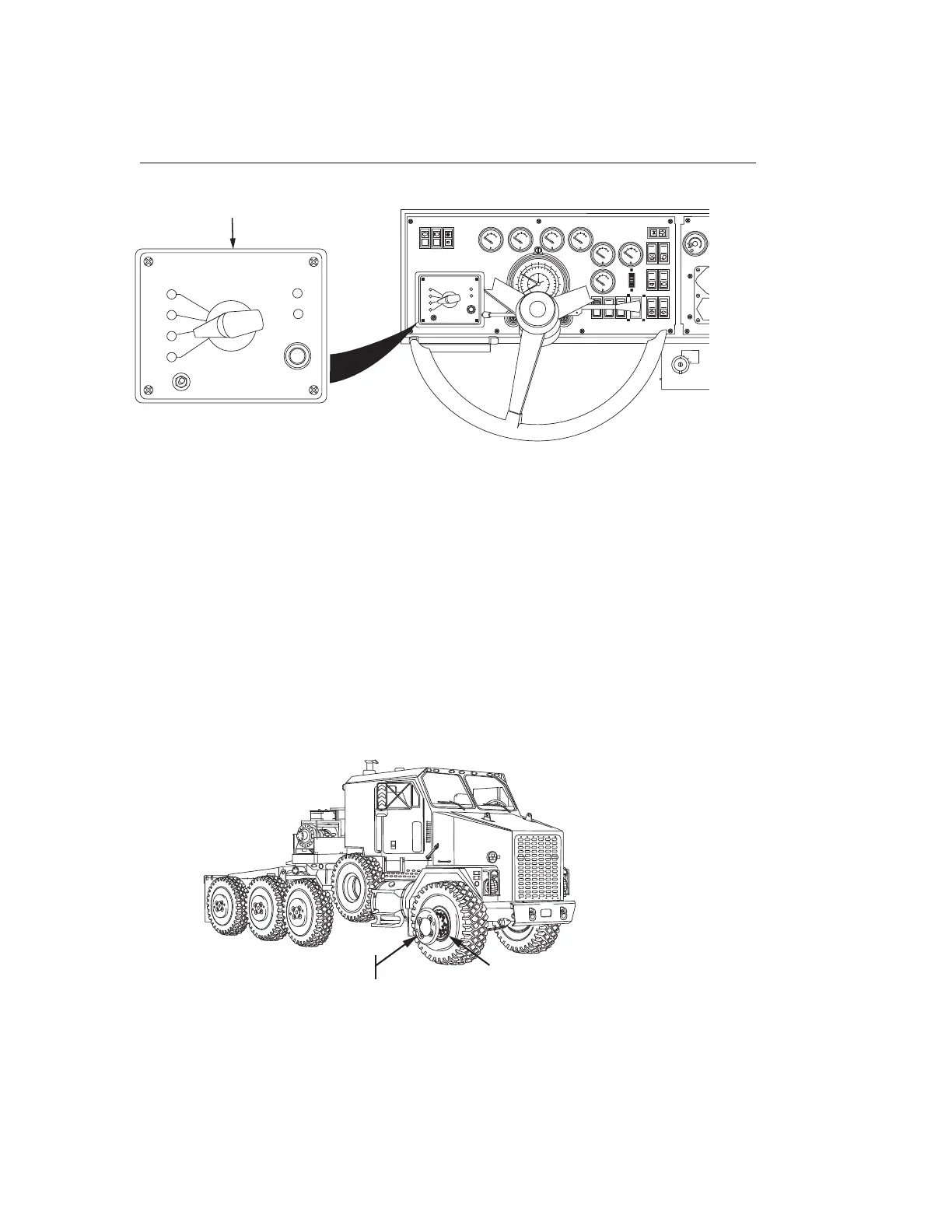

Figure 1. CTIS Control Panel.
CONDITION/INDICATION
Does CTIS operate properly?
DECISION
No -
Yes - Inflate tires to proper pressure using CTIS. (WP 0028)Test 8 - Does HET tractor
wander, pull to one side, lean, or shimmy?
TEST 3 - Are wheel lug nuts damaged, loose, or missing?
1. Turn ignition switch to OFF position.
2. Remove wheel covers (WP 0100) and inspect lug nuts.
WHEEL
COVER
WHEEL
Figure 2. Wheel and Wheel Cover-HET Base.
TM 9-2320-360-10 0084
0084-2
