WHEEL COVER
LINKAGE
FRAME
LINKAGE
AXLE
NO. 3
SHOCK
ABSORBER
FRONT
SPRING

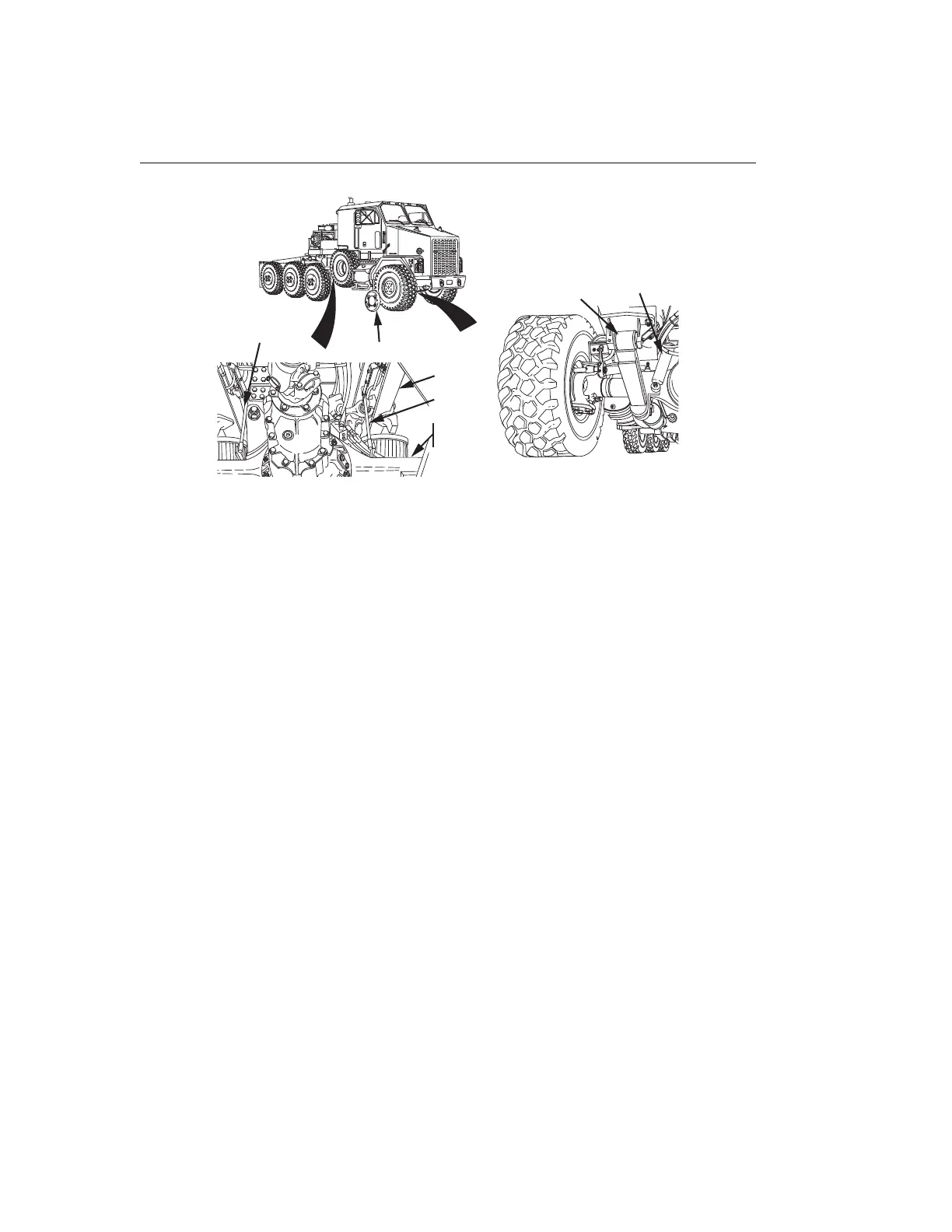

Figure 4. Linkage Breakdown.
CONDITION/INDICATION
Is ride height valve linkage damaged?
DECISION
No - Test 6 - Is ride height level?
Yes - Contact supervisor.
TEST 6 - Is ride height level?
NOTE
Difference in distance between bottom of frame and ground should be
less than or equal to 1.5 in. (38.1 mm) from side to side.
Check for level ride height.
TM 9-2320-360-10 0084
0084-4
