Table 1. PMCS - BEFORE - Continued
Item
No.
Interval
Item to
be
Checked
or
Serviced
Procedure
Equipment
Not Ready/
Available If:
OVERSPEED
LOW AIR
START
CTI OFF - ON
CTI CONTROLLER MODEL 101
CROSS COUNTRY
HIGHWAY
MUD SAND & SNOW
9 MAX SPEED 45 MPH)
(MAX SPEED 30 MPH)
( MAX SPEED 15 MPH)
( MAX SPEED 5 MPH)
EMERGENCY
CHECK
GAUGES
CHECK
ENGINE
AI
R
LOW
ENGINE
BRAKE
ENGINE
BRAKE
LO
HI
TRAILER
AIR SUPPLY
PARKING
BRAKE
1
2

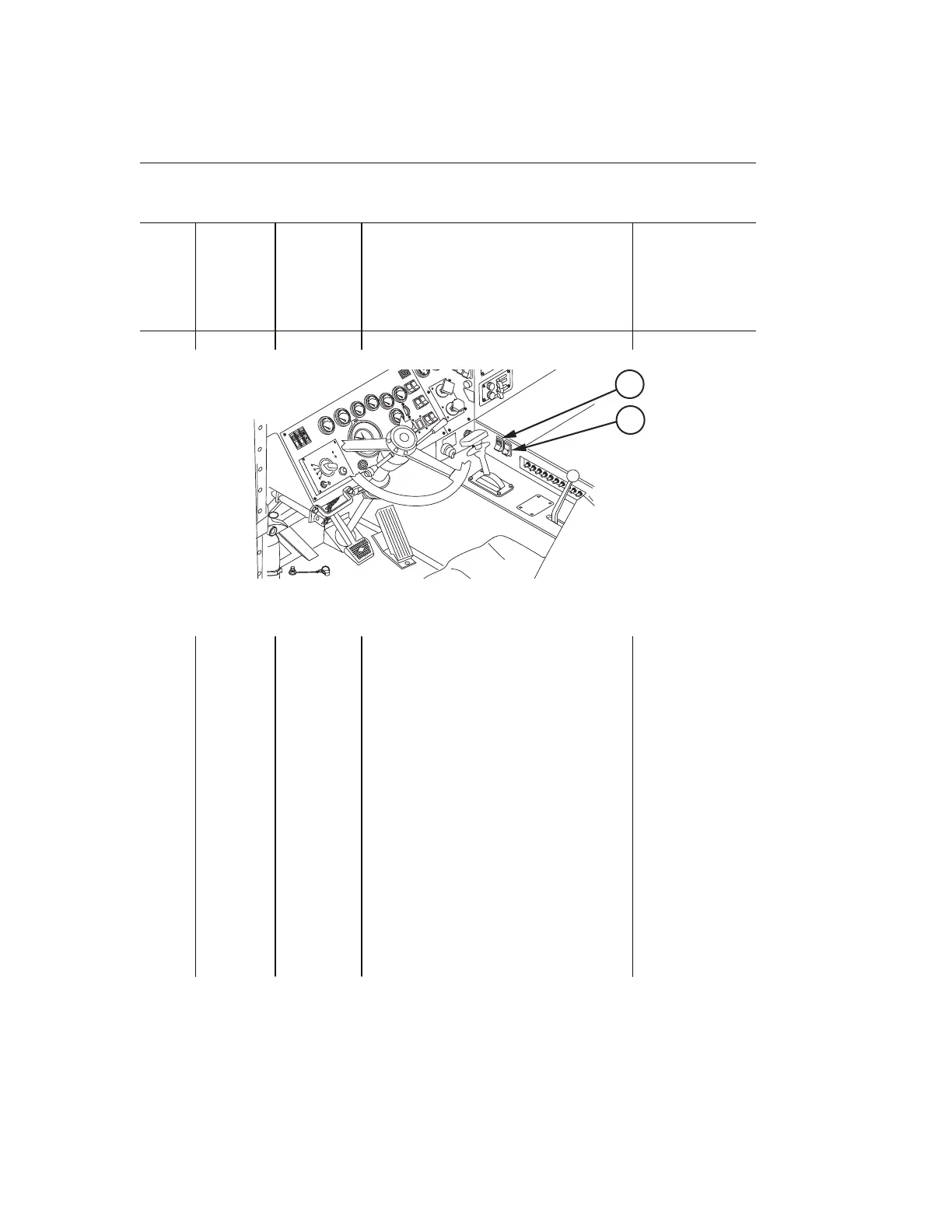

Figure 9.
4. Check operation of CTIS.
(WP 0028)
5. Check engine OIL PRESS gauge
(3) for normal operating range of
50 to 70 psi (345 to 483 kPa)
between engine speeds of 1800
to 2100 rpm. Minimum for safe
operation is 30 psi (207 kPa). At
idle, oil pressure can go as low as
5 psi (35 kPa).
Gauge indi-
cates less
than 30 psi
(207 kPa)
during nor-
mal opera-
tion or less
than 5 psi
(35 kPa) at
idle and
CHECK
GAUGES
indicator
lights/alarm
sounds.
