FLAT TIRE REMOVAL - Continued
19
18
16
14
15
17
15
7

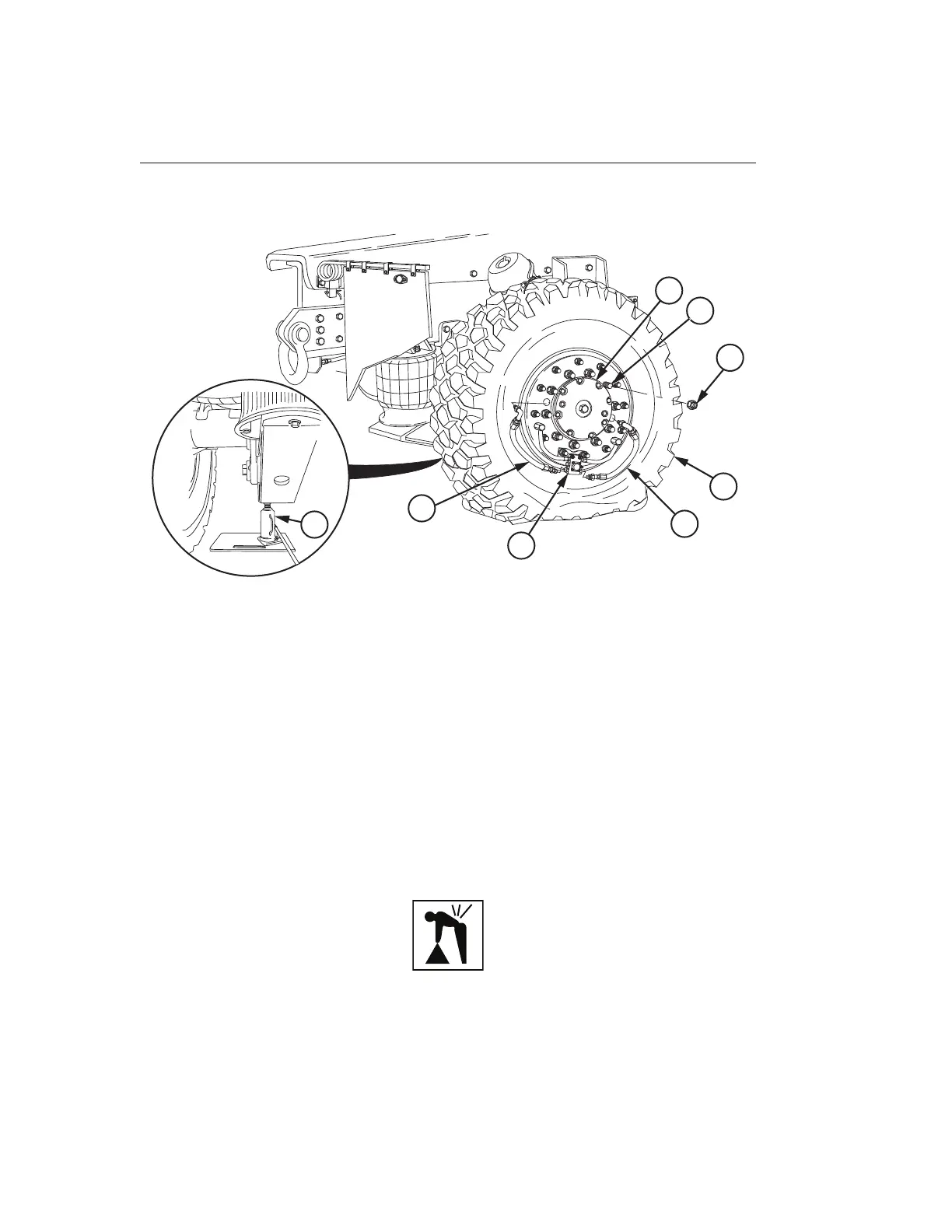

Figure 11.
WARNING
Do not remove nuts. Tire assembly could pop off. Failure to comply may
result in serious injury or death to personnel.
WARNING
Never loosen or remove the 12 smaller nuts around the outside of the rim
assembly. Rim could separate. Failure to comply may result in serious
injury or death to personnel.
19. Loosen 10 nuts (18) on flat tire assembly (14). Do not remove nuts.
20. Raise jack No. 2 (7) until flat tire assembly (14) is off ground.
WARNING
Wheel/tire assembly weighs 523 lbs (237 kg). Attach suitable lifting
device prior to moving to prevent possible injury to personnel. Use caution
TM 9-2320-360-10 0108
0108-14
