Oshkosh M1070 - Page 749

SPARE TIRE INSTALLATION - Continued
16
4
16
2
17
22
21
18
BLACK
OUT
DRIVE
BLACK
OUT
MARKER
BLACK
OUT
LIGHTS
CHECK
GAUGES
CHECK
ENGINE
AIR
LOW
CROSS COUNTRY
HIGHWAY
MUD SAND & SNOW
9 MAX SPEED 45 MPH)
(MAX SPEED 30 MPH)
( MAX SPEED 15 MPH)
( MAX SPEED 5 MPH)
EMERGENCY
OVERSPEED
LOW AIR
START
CTI OFF - ON
CTI CONTROLLER MODEL 101
TRAILER
AIR SUPPLY
ENGINE
OFF
ON
START
FILTER MINDER
AIR CLEANER RESTRICTION
RESET
H O
2
—20—
—15—
—10—
— 8 —
PARKING
BRAKE
19
20
15
23

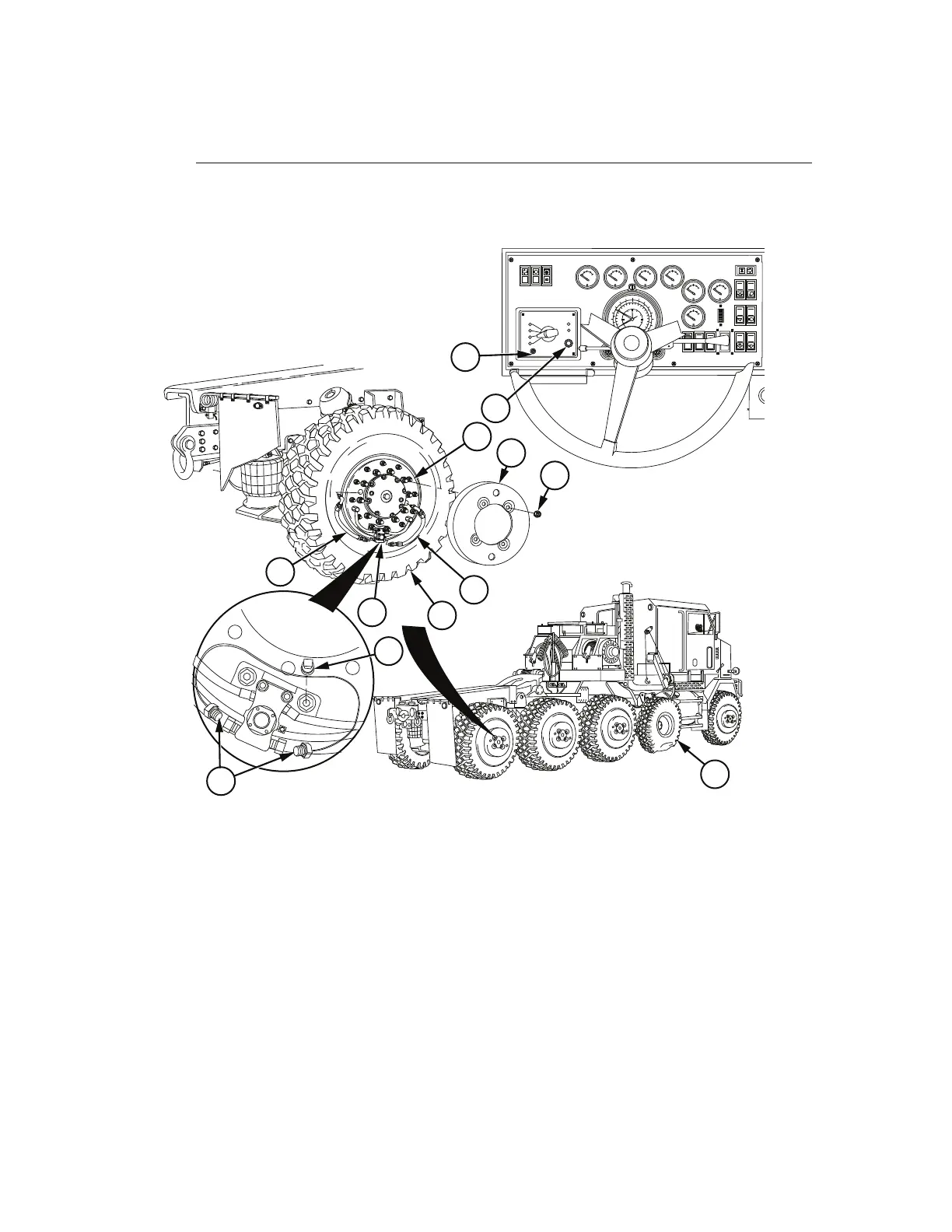

Figure 15.
CAUTION
Keep hoses clean and dry when removing from CTIS wheel valve. Failure
to comply may result in damage to CTIS wheel valve.
13. Install two hoses (16) on wheel valve (17) and hub (18).
14. Start engine (WP 0037).
15. Turn CTIS (19) to on position and push start switch (20).
16. Check two hoses (16) for leaks.
TM 9-2320-360-10 0108
0108-19
