MANUALLY CHECKING, INFLATING AND DEFLATING TIRES - Continued
2
7
8
75$-(&725<
3
4
1
5
5
4
1
1
6
2

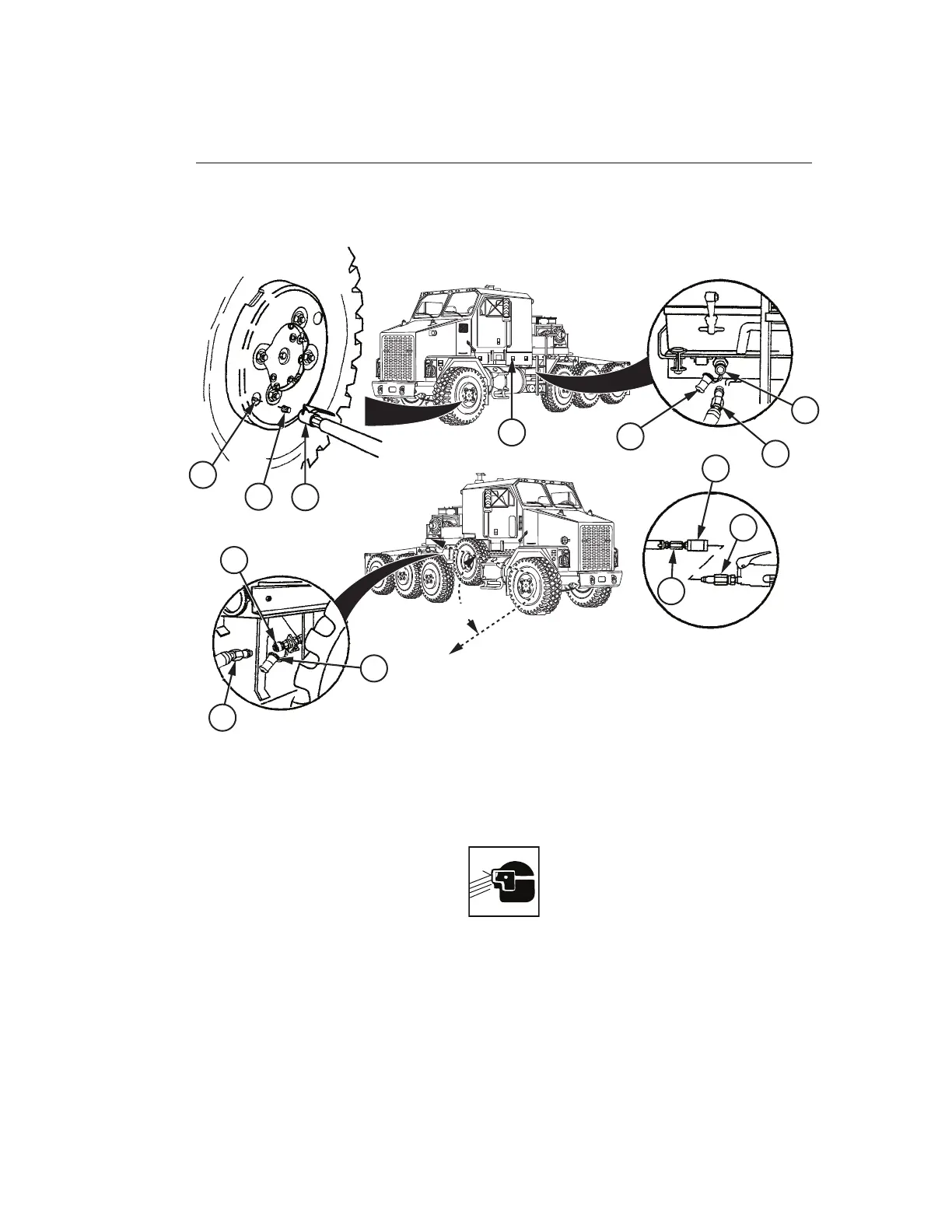

Figure 4.
10. Install cap (7) on air valve (8).
WARNING
Air hose is under pressure and can fly out at fast rate of speed. Wear
proper eye protection. Hold end of air hose when disconnecting from
quick-disconnect coupling. Failure to comply may result in serious injury
or death to personnel.
11. Remove tire inflator/gauge (2) from quick-disconnect coupling (5).
