Oshkosh M1070 - Closing Battery Box

OPENING BATTERY BOX - Continued
3. Remove two clevis pins (5) from battery box tray (6).
4. Pull on handle (7) and slide battery box (4) out.
5. Disconnect two rubber hooks (8) from brackets (9).
6. Remove cover (10) from battery box (4).
END OF TASK
CLOSING BATTERY BOX
NOTE
Retaining lip on inside of cover must hook over rear lip on battery box.
1. Install cover (10) on battery box (4).
10
4
5
67
9
8
2 1
3
4
1
2

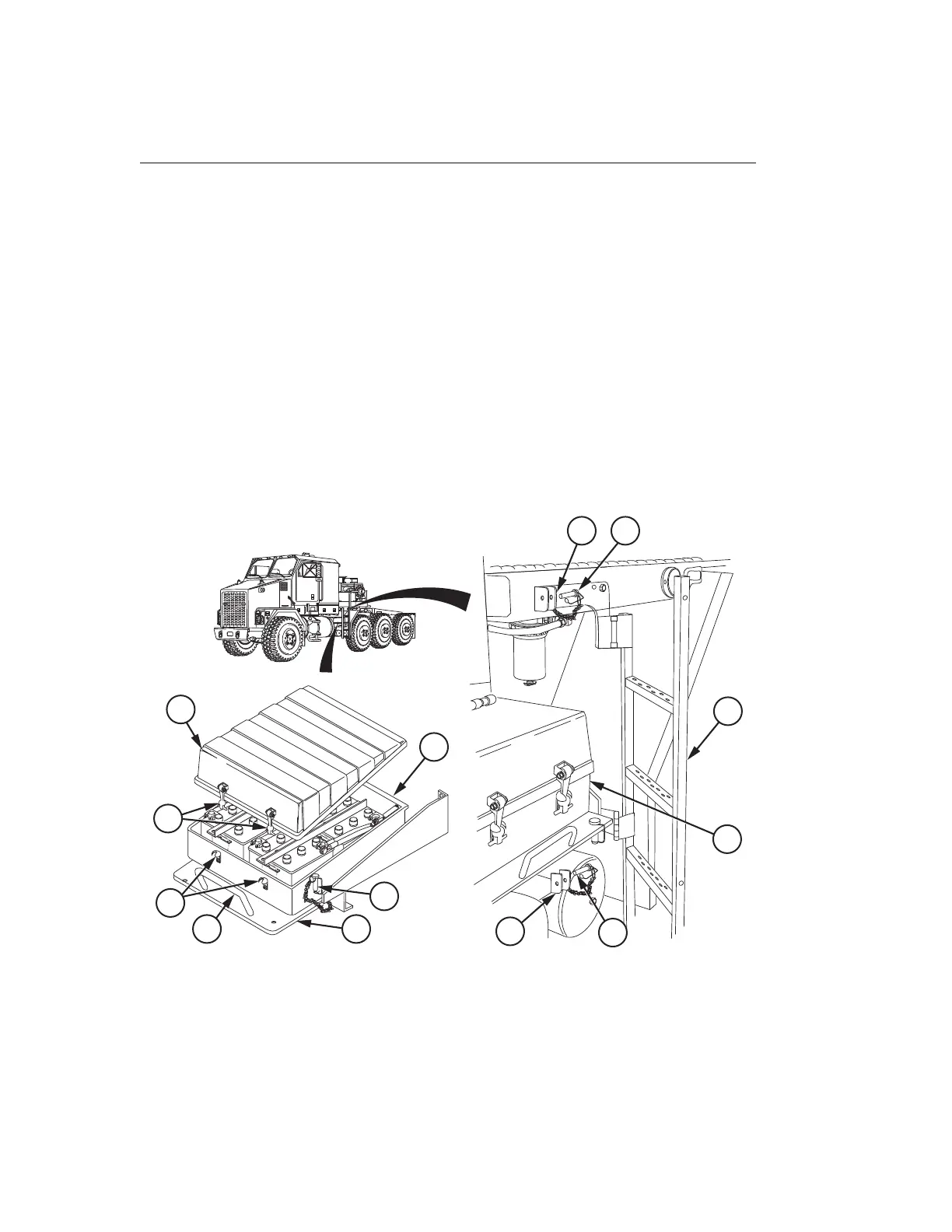

Figure 2.
2. Attach two rubber latches (8) on brackets (9).
TM 9-2320-360-10 0112
0112-2
