• The radiographic image shows the teeth row too curved
upward with the lower incisor not focused

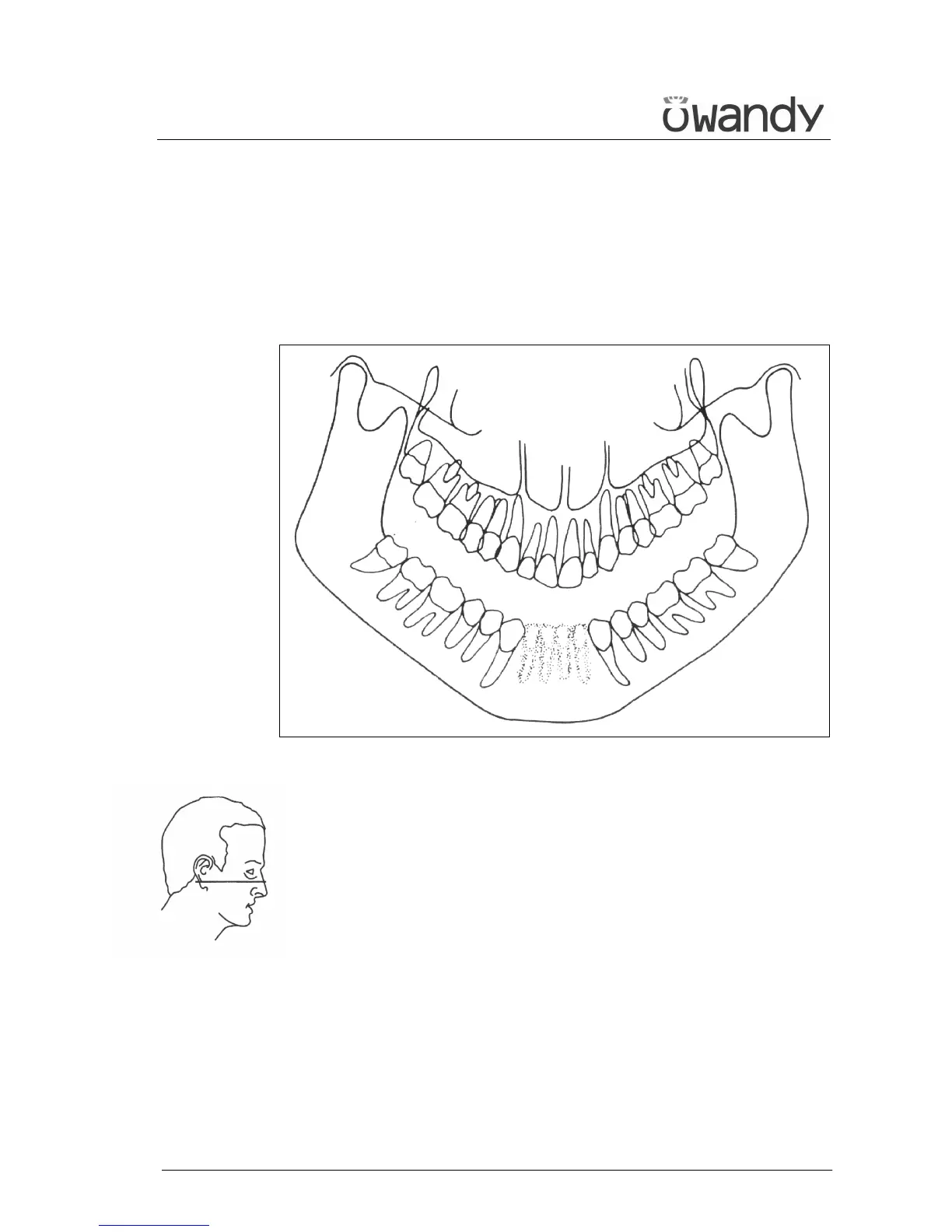

Figure 25 shows the result of this type of error. The temporo-
mandibular joints are shown very high up, with lines converging
towards the top. In some cases the upper condyle might not be
visible in the image.
Figure 25
Possible causes:
Patient’s head tilted downward, as on the diagram alongside.
Solution:
Check the positioning of the patient by aligning the Frankfurt plane
with the corresponding light beam.
