USER'S MANUAL
General instructions for use
(Rev. 0) I-Max Touch (110-120V)
93

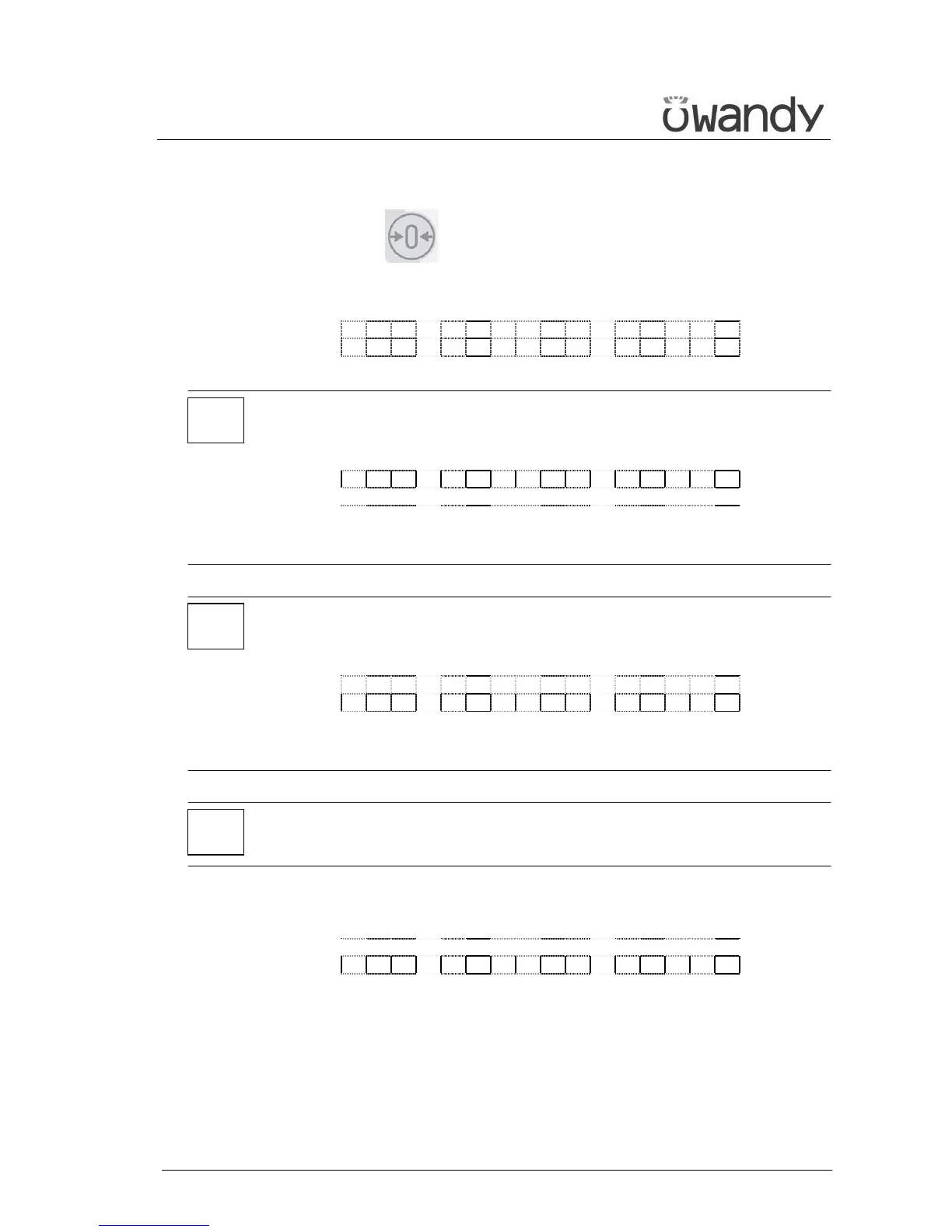

4. Once what was required is performed, press the key "Patient
Entrance" (6) ; messages will disappear and the machine will
align automatically with respect to the digital sensor and the
following message will be displayed:
A X I S P O S I T I O N I N G
P L E A S E W A I T . . .
NOTE:
In case of a single sensor unit, if the sensor holder is in PAN position,
once the alignment is completed, the following message will be displayed:
R E M O V E S E N S O R
I N P A N S L O T
Move the sensor in CEPH position following instruction in paragraph 6.2
and wait some seconds before to press "Patient Entrance" (6) key.
NOTE:
In case of a double sensor unit, once the alignment is completed, the
following message will be displayed:
C E P H - O P E N
C A S S E T T E H O L D E R
requesting the operator to open the sensor holder for panoramic
examination.
NOTE:
The position of the sensor holder for panoramic examination is controlled
by two micro-switches, it must therefore be completely opened.
The following message will be displayed:
x x k V x x m A 4 . 5 0 s
C A R P U S 1 8 x 2 2 n
This message indicates the image format predefined by the system;
the letter "n" after the format indicates that the execution will be in
Normal Resolution.
*
*
*
