21

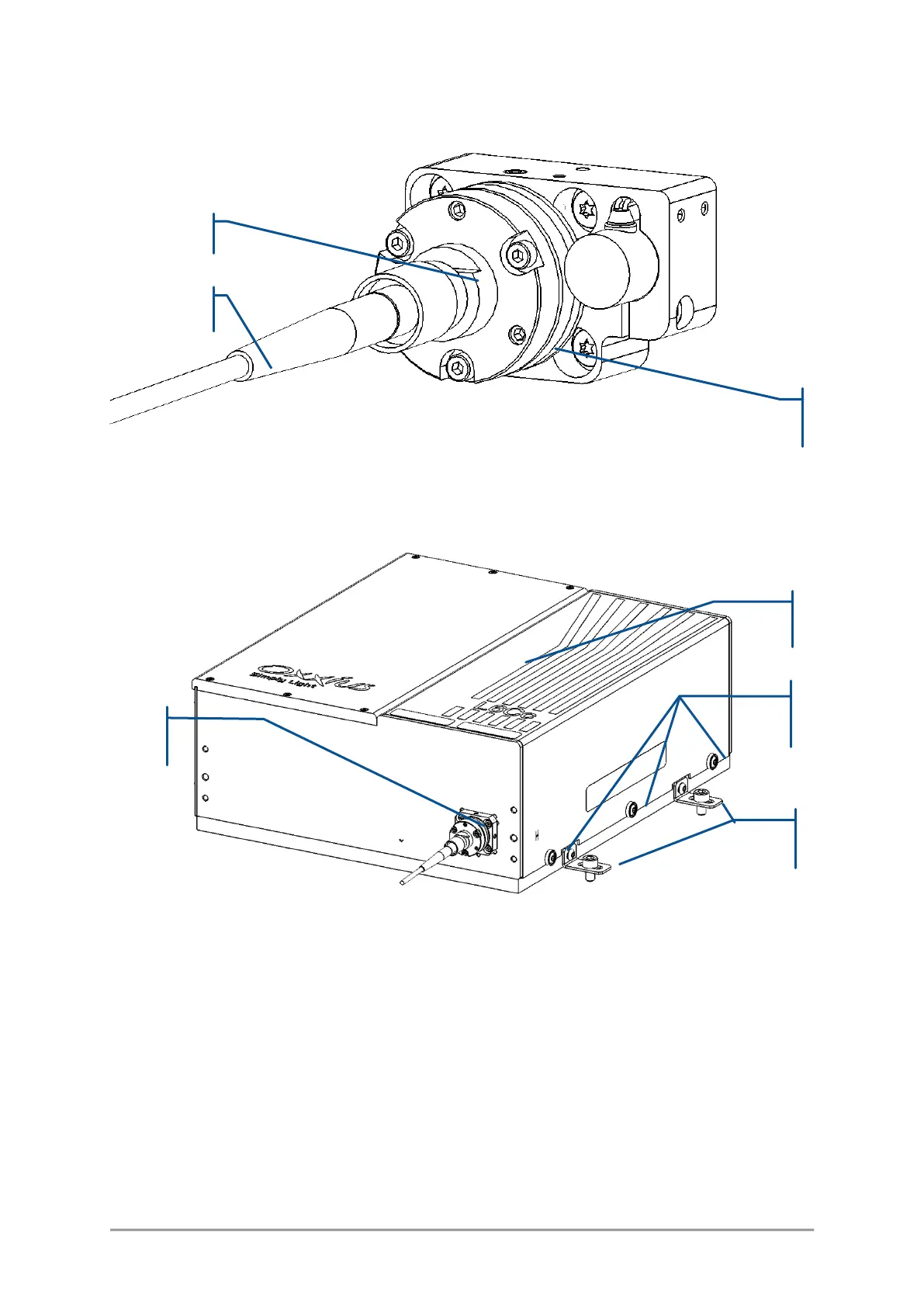

Figure 3-5: Detailed output channel with an optional fiber coupling system
Figure 3-6: Front view of the laser head of the L6Cc combiner (with a fiber coupling system)
The following elements are accessible to the user:
- Maintenance cover: this cover is designed to allow access to the optical elements for
maintenance. It acts as a protective medium against the laser radiations. A safety mechanism
halts the laser emission when this cover is opened.
- Cover fixation screws: these screws are holding the cover onto the base plate.
- Output channel: the combined laser beams are concentrated at this aperture and possibly
transmitted into a delivery fiber. It consists of the following elements:
