MS Series User Guide
14
DHCP Start/End: Assign the first and last IP addresses you would
like to use in the DHCP range. Each interface can have up to four
DHCP.
Primary DNS Server: Assign the primary DNS server.

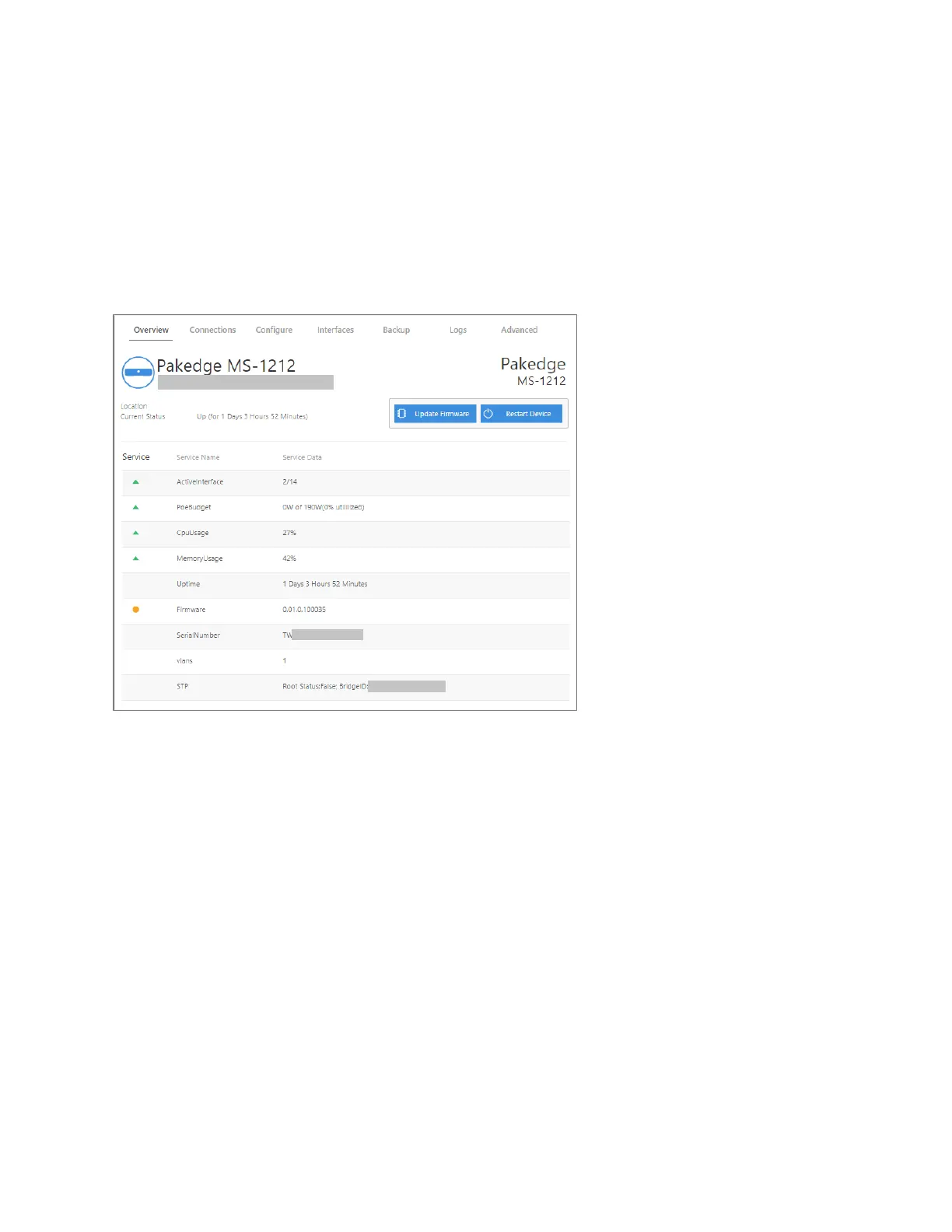

Overview
The Overview tab gives you a quick view of the switch’s status and critical settings.
On this page, you will find information on the current firmware version, number of active
ports on the switch, system-level PoE utilization, CPU and memory usage, uptime, serial
number, and more.
If there is new firmware available for the switch, you will see a message alerting you with an
option to download it.
• Notifications: System notifications display at the very top of the tab. This example
shows a firmware update is available.
• Device Name: The device name (assigned in the Configure tab) appears here.
• IP address and MAC address: The device’s assigned IP address and system MAC
address is shown here.
• Location: Displays the configured “Location” of the device.
• Current Status: Shows the switch’s up/down status.
• Update Firmware: Click to open the Update Firmware screen (also accessible under
the Advanced tab). The screen also displays the firmware’s release notes.
• Restart device: Click to restart (power cycle) the switch. It happens immediately, with
no confirmation dialog.
