Pakedge MS Series User Manual

MS Series User Guide
19

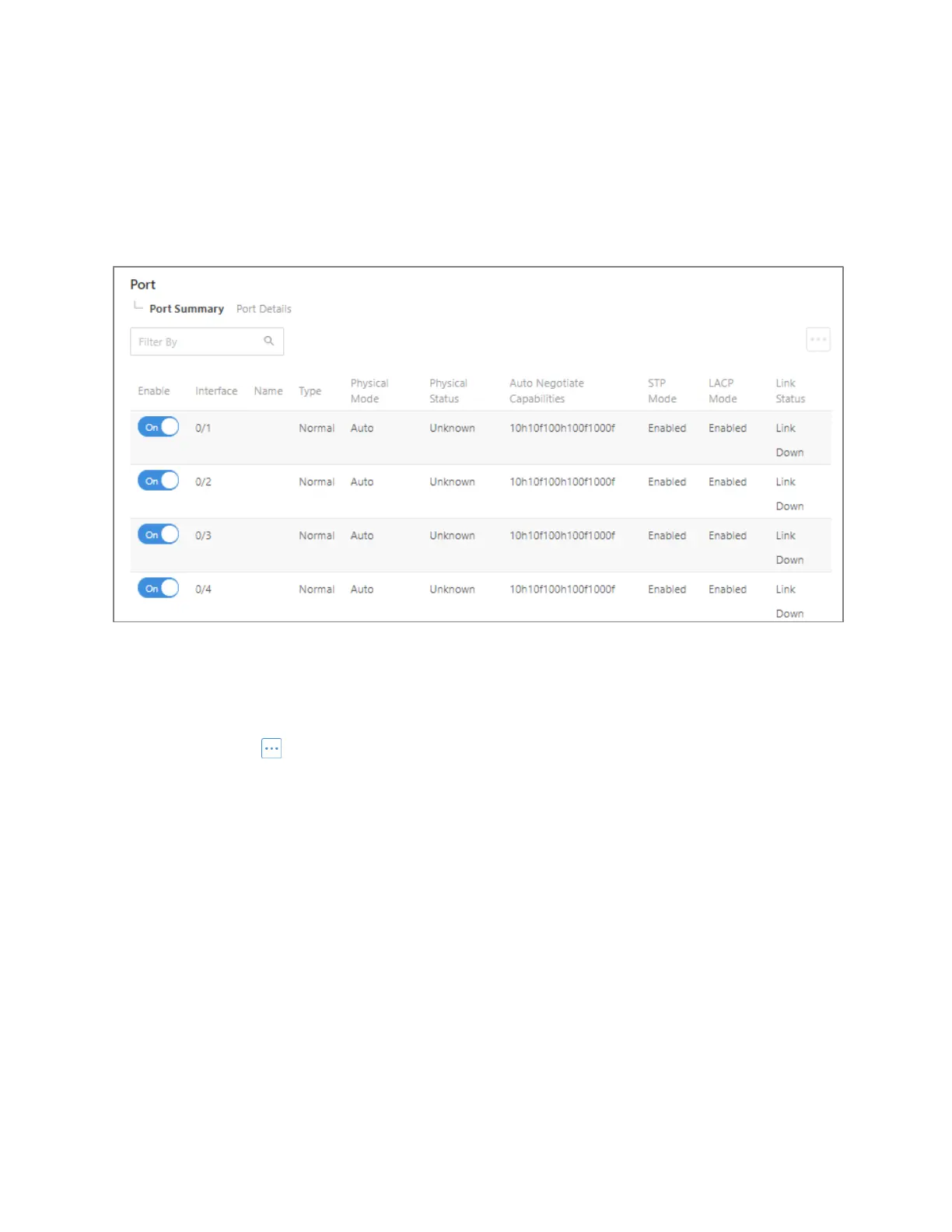

Port Summary
To access Port Summary, go to Interfaces > Ports > Port Summary.
The first sub-tab is Port Summary.
From the Port Summary sub-tab, view or configure key port settings. Monitor port status,
enable/disable various modes, and configure auto-negotiation and other settings.
Edit
To edit available Port Summary settings:
1. Log in to the switch, then click Interfaces > Port > Port Summary.
2. Click More ( ), then click Edit.
3. Check the box next to items you want to edit, then click Edit Selected.
Caution! When editing multiple ports, make sure the correct ports are selected before
making changes.
4. Complete the dialog (see below).
5. In the dialog, click Save, then click Apply at the top of the page to save your changes.
