Conguring the system
Setting

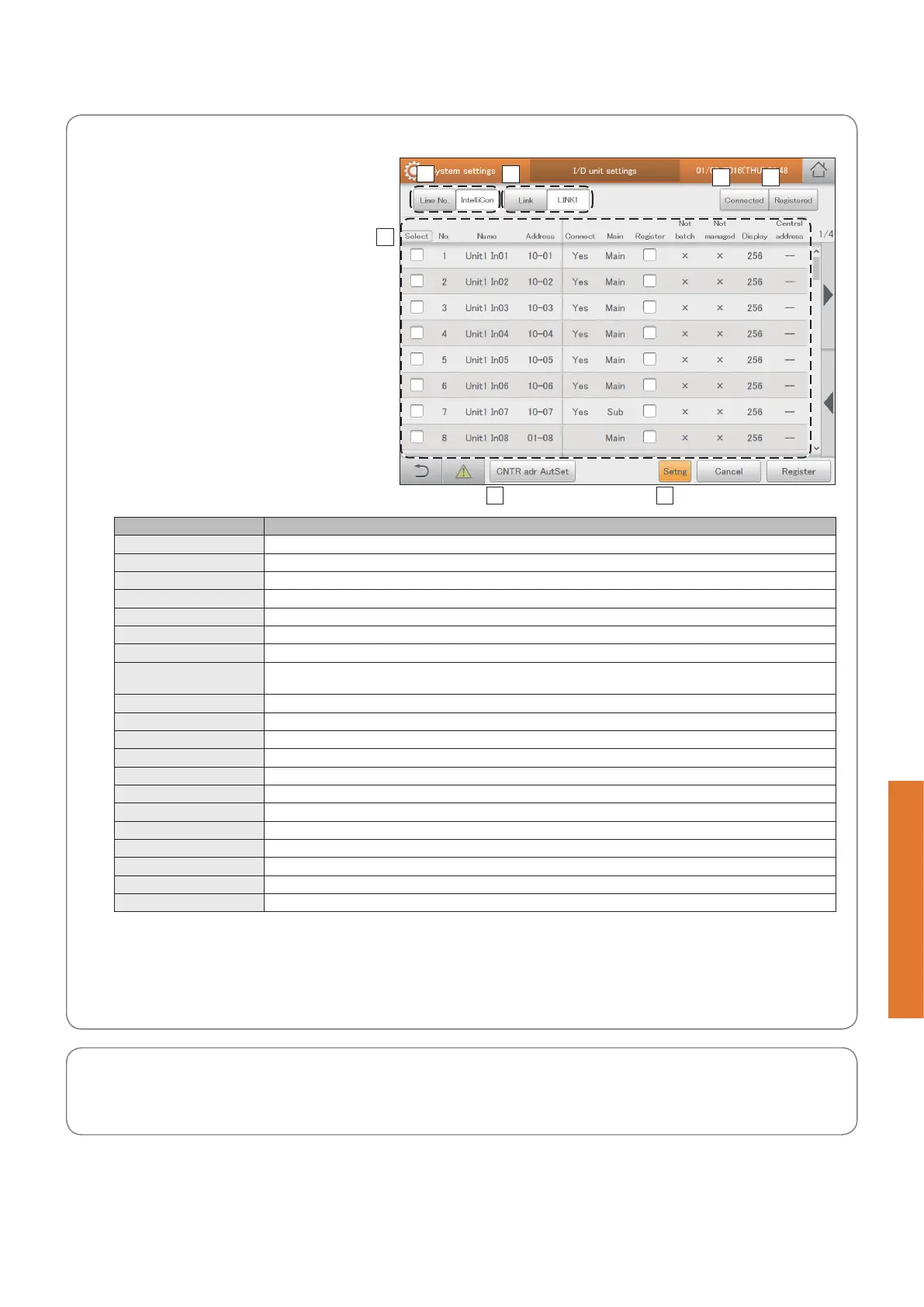

The “I/D unit settings” screen
A: Select the adaptor (this unit, communication
adaptor) that the indoor unit is connected to.
B: Select the linked system that the indoor unit
is connected to.
C: A list of indoor units with “Yes” in the
“Connect” column is displayed when you
touch this (turn the setting on). Touch again
and all indoor units are displayed in a list.
(turn the setting off)
D: A list of indoor units with a check mark in
the “Register” column is displayed when you
touch this (turn the setting on). Touch again
and all indoor units are displayed in a list.
(turn the setting off)
E: Details about indoor units are displayed in a
list.
Item Explanation
[Select] Select the indoor units whose settings you want to change.
No. The serial number is displayed.
Name The names of the indoor units are displayed.
Address The addresses of the indoor units are displayed.
Connect If connected to this unit, “Yes” is displayed.
Main If the main unit, “Main” is displayed.
Register If you want it to be managed by this unit, put a check mark here.
Not batch “” is displayed if the device is not subject to batch operations, and “” is displayed if it is subject to batch
operations.
Not managed “” is displayed if the device is not subject to management, and “” is displayed if it is subject to management.
Display This indicates the display order.
Central address This shows the central address.
Control Gr. This shows the control group name it belongs to.
SchedleGroup This shows the schedule group name it belongs to.
Area This shows the area group name it belongs to.
Distrib. Grp.* This shows the distribution group name it belongs to.
Cap This shows the operational capacity values for the indoor unit.
Fix cap The xed capacity values of the indoor unit.
I/D type This shows the model name of the indoor unit.
PrdctTyp This shows the product type (PAC or GHP).
ElcHeatr This shows the capacity values of the electric heater.
* If the distribution mode (P.160) is set to “Time”, do not allocate PAC and GHP to the same distribution groups.
F: Central addresses are automatically set for indoor units with a check mark in the “Register” column. (→ “Automatically setting
central addresses” (P.144))
G: When you touch this, the “Edit unit settings” dialogue is displayed for indoor units with a check mark in the “Select” column.
A
F G
E
B
C D
Attention
y If the distribution mode (→ “Set the distribution mode” (P.160)) is set to “Time”, do not allocate PAC and GHP to the same distribution
groups.
