Panasonic FP E Series User Manual

7-7

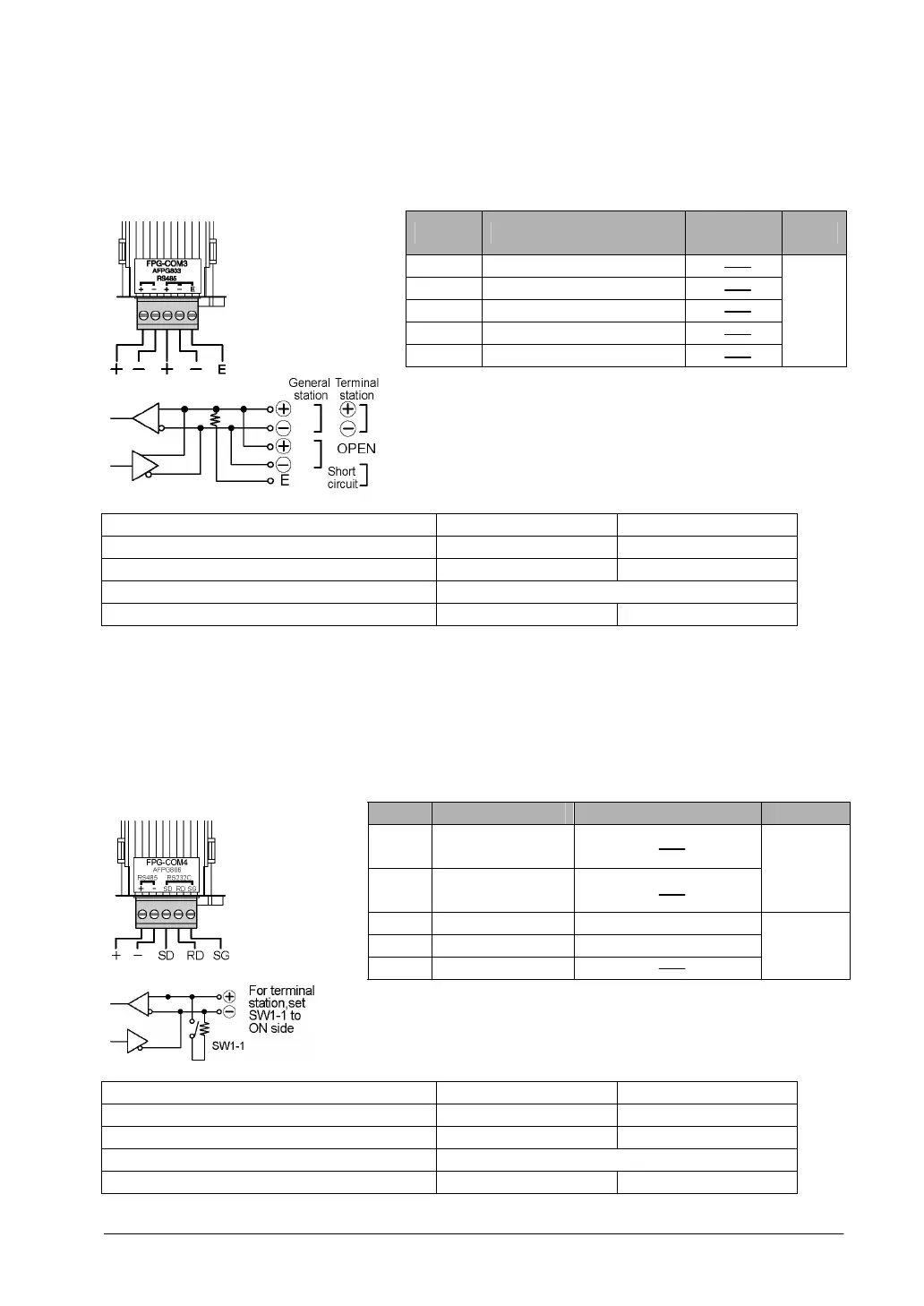

1-channel RS485 type (Product No. AFPG803)
This communication cassette is a 1-channel unit with a two-wire RS485 port.
Terminal layout
Abbr. Name
Signal
direction
Port
+ Transmission line (+)
− Transmission line (−)
+ Transmission line (+)
− Transmission line (−)
E Terminal station setting
COM
1 port
1:1 communication 1:N communication
Computer link Not available Available
General-purpose serial communication Not available Available
PC(PLC) link Available
Note)
MODBUS RTU Not available Available
Note) When using this cassette, the data transmission is executed with the STOP2 regardless of the
setting for the stop bit. The data reception is available with 1 or 2 regardless of the setting for the stop bit.
1-channel RS485 and 1-channel RS232C combination type (Product No. AFPG806)
This communication cassette equips a 1-channel unit with a two-wire RS485 port and 1-channel unit with
a three-wire RS232C port.
Terminal layout
Abbr. Name Signal direction Port
+
Transmission
line (+)
−
Transmission
line (−)
RS485
(COM1
port)
SD Sent Data FPΣ → External device
RD Received Data FPΣ ← External device
SG Signal Ground
RS232C
(COM2
port)
1:1 communication 1:N communication
Computer link Available Available
General-purpose serial communication Available Available
PC(PLC) link Available
Note)
MODBUS RTU Available Available
