AFPG806

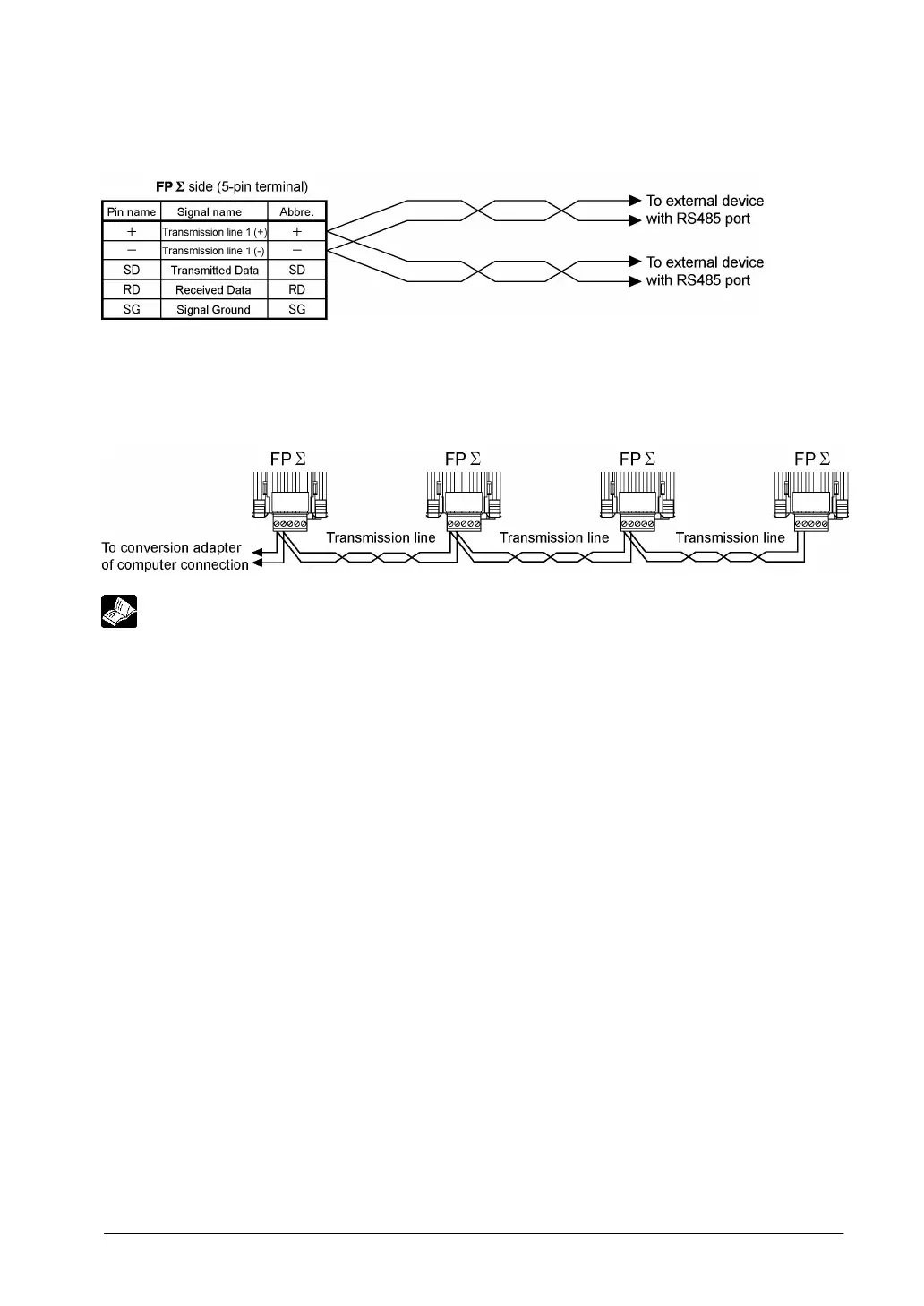

Connection diagram
In case of using the AFPG806, connect two cables each to the (+) terminal and (-) terminal.
Use the wires of the same cross-sectional area which should be 0.5 to 0.75 mm
2
.
Setting of terminal station
The terminal station is specified with the dip switch located in the communication cassette.
Reference: <7.1.4 Setting of AFPG806 switch>
