12-41

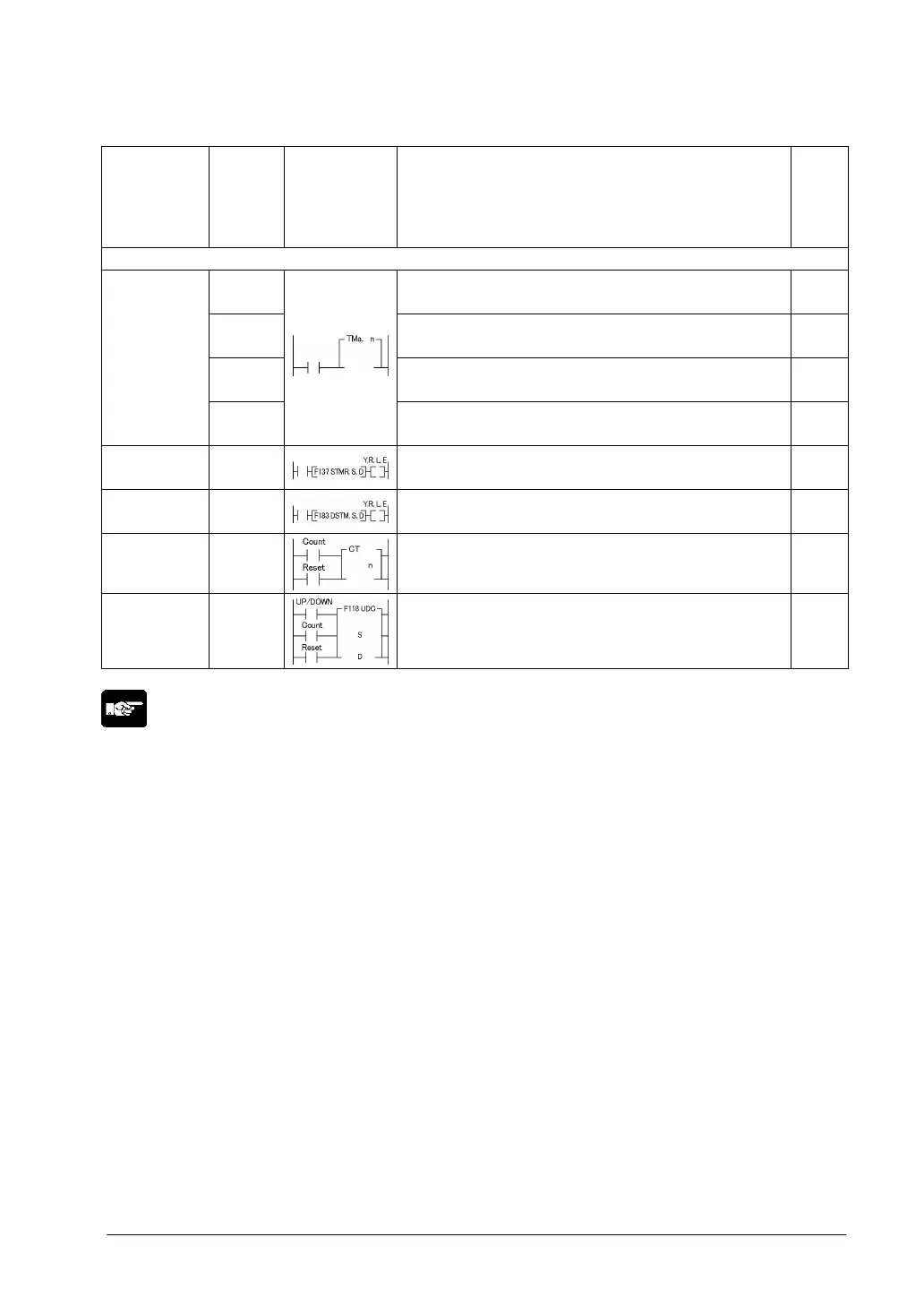

Name Boolean Symbol Description
Steps
(*1)
Basic function instructions
TML After set value “n” x 0.001 seconds, timer contact “a” is set
to on.
3 (4)
TMR After set value “n” x 0.01 seconds, timer contact “a” is set
to on.
3 (4)
TMX After set value “n” x 0.1 seconds, timer contact “a” is set to
on.
3 (4)
On-delay
timer
TMY
After set value “n” x 1 second, timer contact “a” is set to on. 4 (5)
Auxiliary
timer (16-bit)
F137
(STMR)
After set value “S” x 0.01 seconds, the specified output and
R900D are set to on.
5
Auxiliary
timer (32-bit)
F183
(DSTM)
After set value “S” x 0.01 seconds, the specified output and
R900D are set to on.
7
Counter CT Decrements from the preset value “n” 3 (4)
UP/DOWN
counter
F118
(UDC)
Increments or decrements from the preset value “S” based
on up/donw input.
5
Note:
*1) In the FP2/FP2SH/FP10SH, when timer 256 or higher, or counter 255 or lower, is used, the number
of steps is the number in parentheses. Also, in the FP2/FP2SH/FP10SH, when a timer number or
counter number has an index modifier, the number of steps is the number in parentheses.
