Hardware Installation
FP Modem-EU Technical Manual
• Installation space

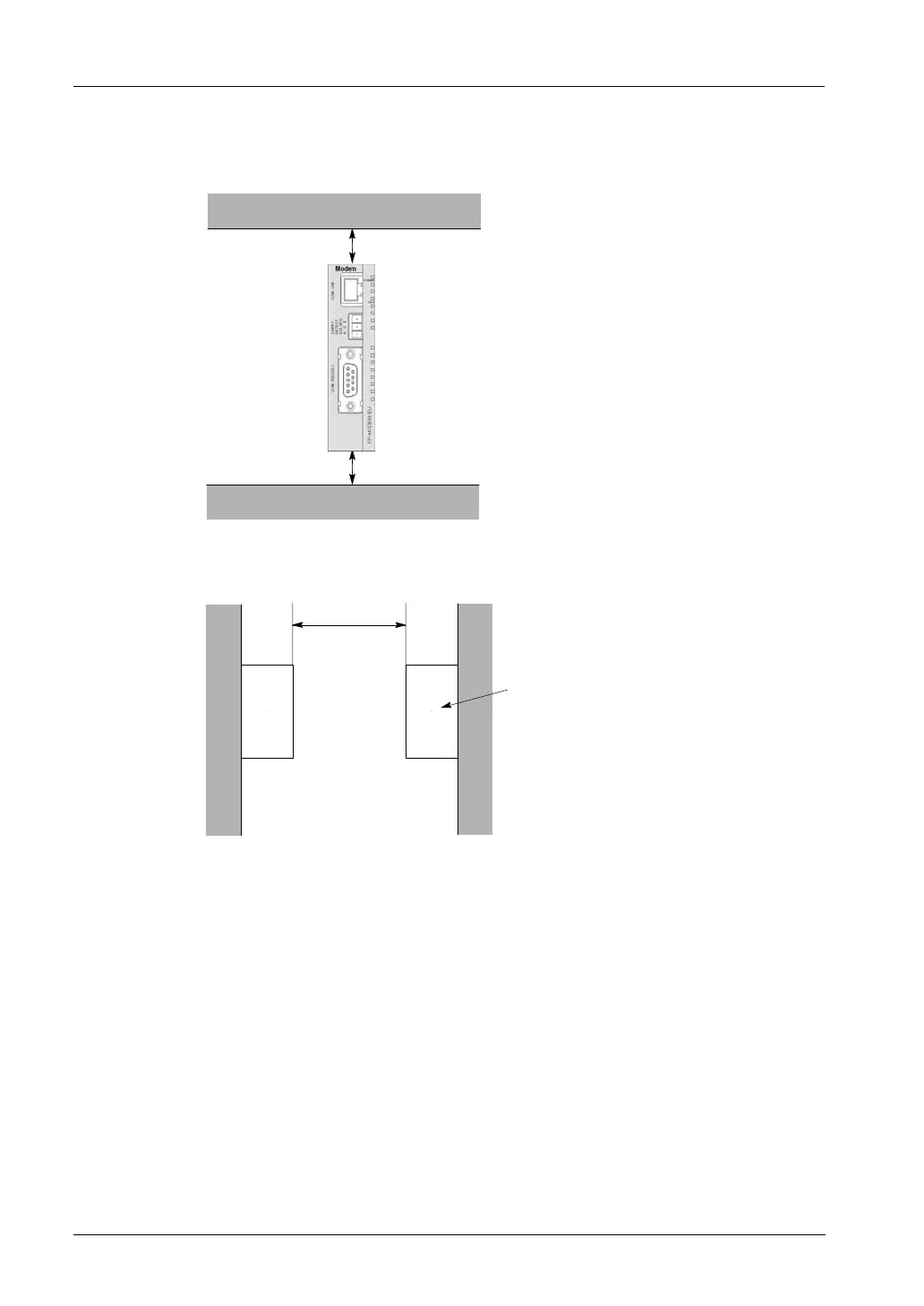

- Leave at least 50mm of space between the wiring ducts of the unit and
other devices to allow heat radiation and unit replacement.
50mm or more
50mm or more
- Maintain a minimum of 100mm between devices to avoid adverse affects
from noise and heat when installing a device or panel door to the front of
the FP Modem-EU.
100mm or more
Other device or
panel door
Modem
- Keep the first 100mm from the front surface of the FP Modem-EU open in
order to allow room for programming tool connections and wiring.
