FP Modem-EU Technical Manual

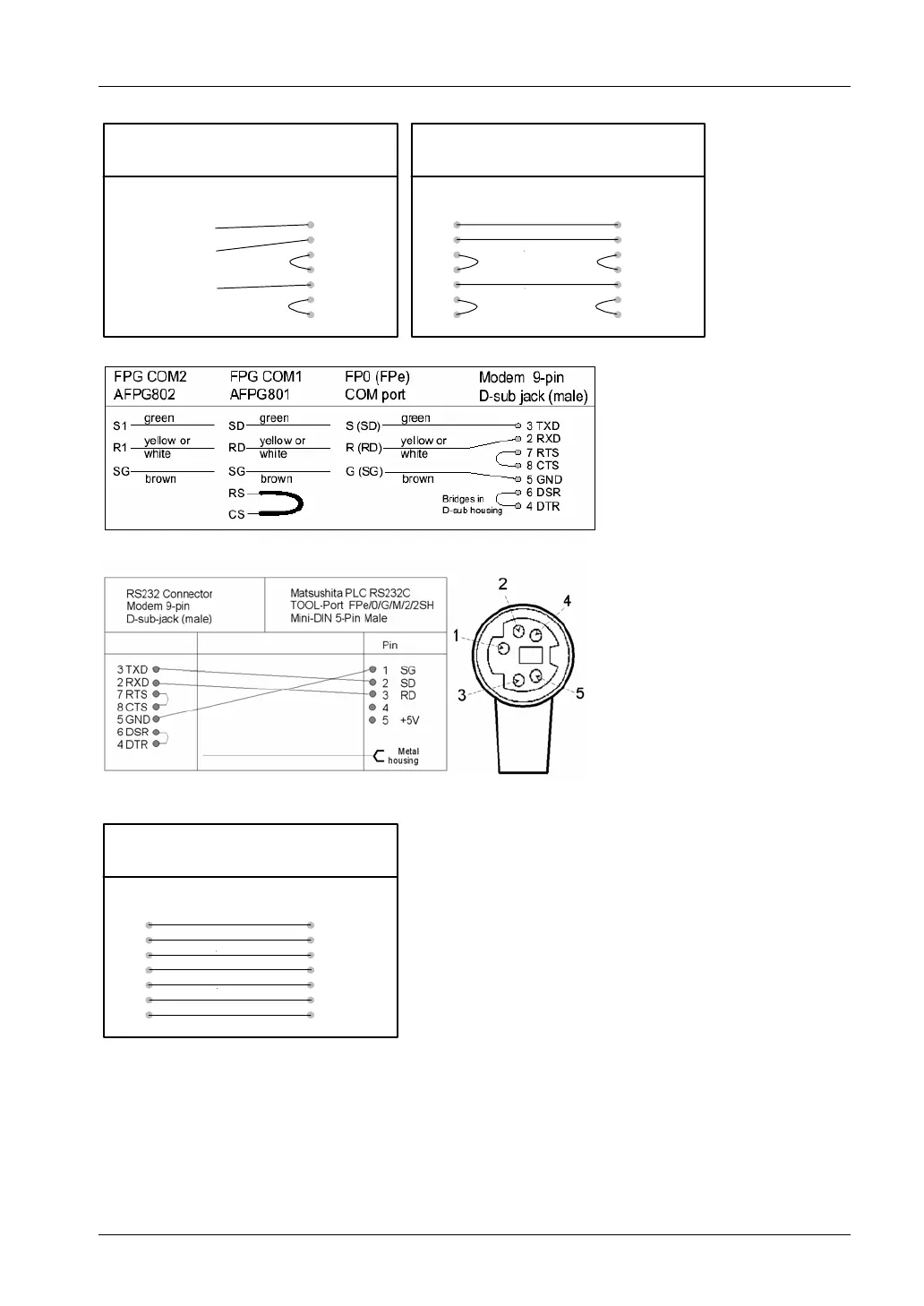

2.7 Wiring
COM Port: FP0/e
using cable [CABMODPLC111]
Wire color
3 TXD
2 RXD
7 RTS
8 CTS
5 GND
6 DSR
4 DTR
Modem 9-pin
D-sub jack (male)
green
yellow or
white
brown
S (SD)
R (RD)
G (SG)
COM Port: FP1/M/2/2SH/10SH
SDU FP2/3/C [CABMODPLC211]
PLC 9-pin
D-sub jack (male)
3 TXD
2 RXD
7 RTS
8 CTS
5 GND
6 DSR
4 DTR
Modem 9-pin
D-sub jack (male)
2
3
4
5
7
8
9
PC-Modem
Computer (PC) or FP Web-Server
using standard 1:1 serial cable
PC or FP Web 9-pin
D-sub plug (female)
3 TXD
2 RXD
7 RTS
8 CTS
5 GND
6 DSR
4 DTR
Modem 9-pin
D-sub jack (male)
3
2
7
8
5
6
4
