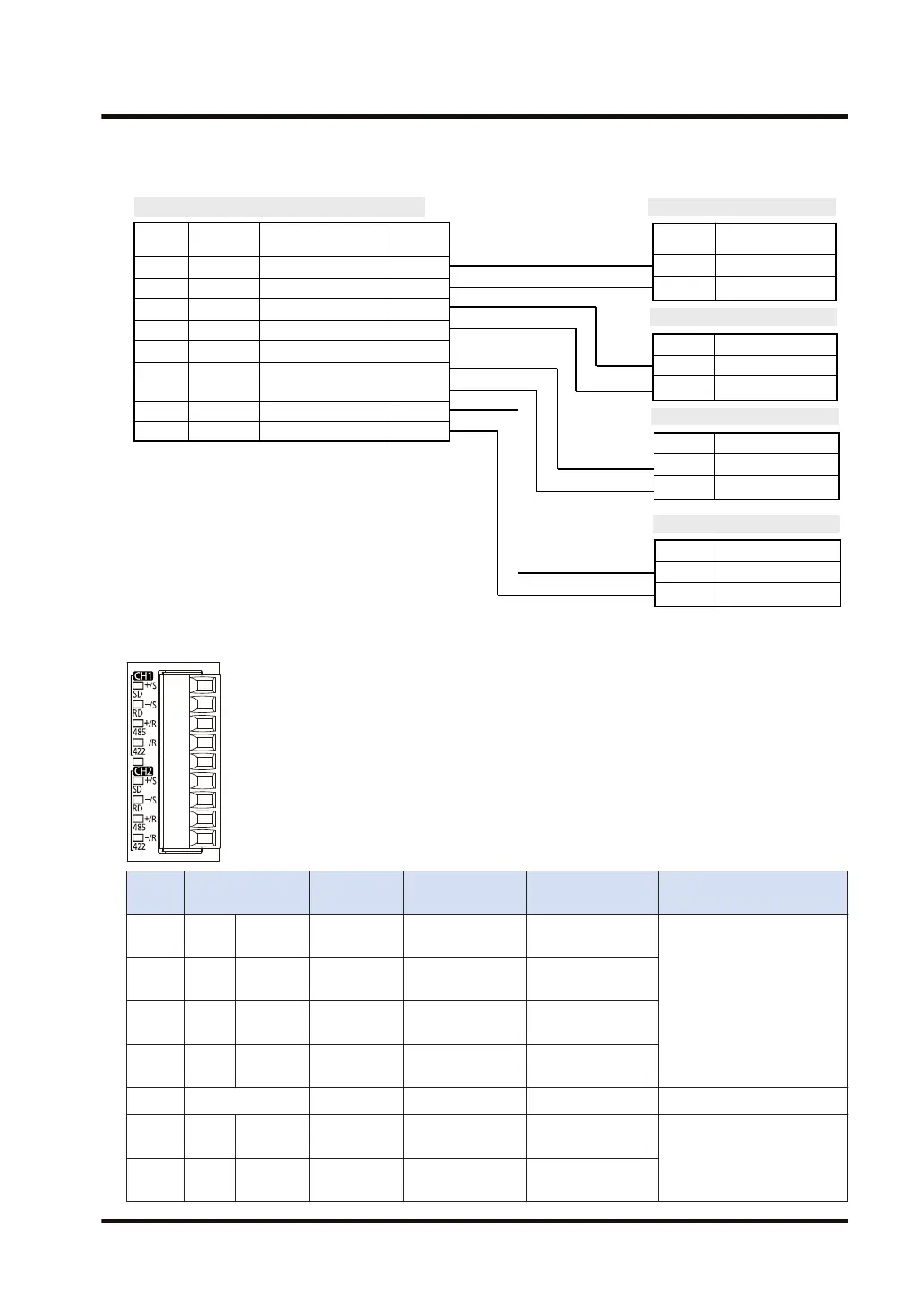

Example of wiring (in the setting of RS-485)
AFP7CCRM2
Terminal
No.
Terminal
part symbol
Signal name Functions
1 + / S Transmission line 1 (+) +
2 - / S Transmission line 1 (-) -
3 + / R Transmission line 1 (+) +
4 - / R Transmission line 1 (-) -
5 － NC NC
6 + / S Transmission line 2 (+) +
7 - / S Transmission line 2 (-) -
8 + / R Transmission line 2 (+) +
9 - / R Transmission line 2 (-) -
Terminal Signal name
+ Transmission line (+)
- Transmission line (-)
Terminal Signal name
+ Transmission line (+)
- Transmission line (-)
Terminal Signal name
+ Transmission line (+)
- Transmission line (-)
Terminal Signal name
+ Transmission line (+)
- Transmission line (-)
Transmission line 1 Partner 1
Transmission line 1 Partner 2
Transmission line 2 Partner 1
Transmission line 2 Partner 2
■
Terminal layout (in the setting of RS-422)
1
2
3
4
5
6
7
8
9
Termin
al no.
LED part
symbol
Terminal
part symbol
Functions that
can be allocated
Signal direction
Ports that can be
allocated in the software
1 CH1 SD + / S Sent Data (+)
PLC → External
device
COM.1/COM.3
2 RD
- / S
Sent Data (-)
PLC → External
device
3 485
+ / R Received Data
(+)
PLC ← External
device
4 422
- / R
Received Data (-)
PLC ← External
device
5 - - - - -
6 CH2 SD + / S Sent Data (+)
PLC → External
device
COM.2/COM.4
7 RD
- / S
Sent Data (-)
PLC → External
device
3.4 Wiring for Communication Cassettes COM.1 to COM.4 Ports
WUME-FP7COM-07 3-17
