Panasonic KX-NS Series Installation Manual

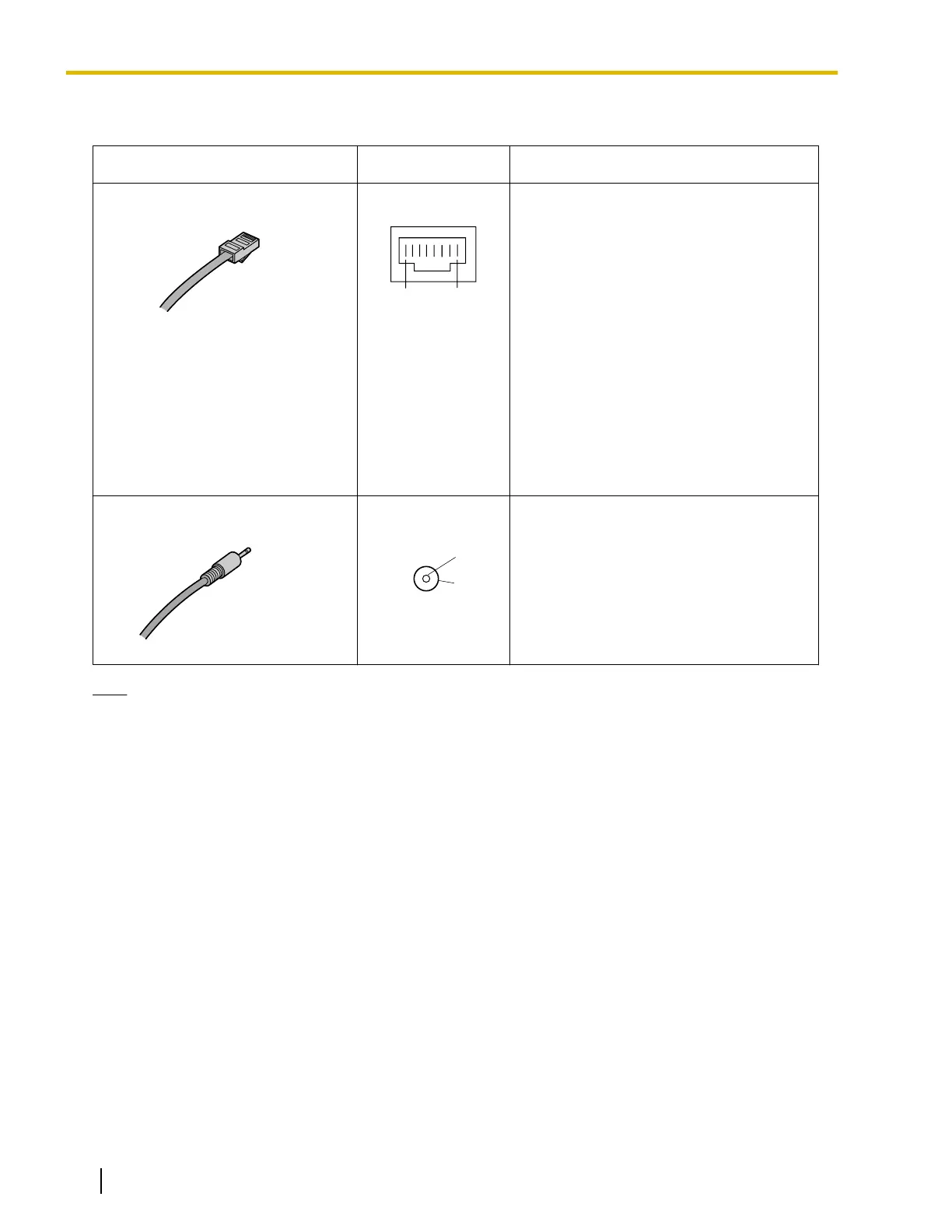

4.2.7 Types of Connectors
Connector Type Pin Number Used for
RJ45
(Twisted pair cable)
81
• Mother board (KX-NS700
)
– LAN Port
– PFT I/F Port
– DPT I/F Port
– SLT I/F Port
• EXP-M port
• EXP-S port
• LCOT6 (KX-NS5180)
• PRI23 (KX-NS5290)
• DPH2 (KX-NS5162)
• DHLC4 (KX-NS5170)
• DLC8 (KX-NS5171)
• DLC16 (KX-NS5172)
• MCSLC8 (KX-NS5173)
• MCSLC16 (KX-NS5174)
Mini Plug
2
4
• EPG/MOH
Note
• Pin assignments for RJ45 connectors differ depending on the card. Refer to the
"Pin Assignments"
section of each card in "Section 4 Installation".
100 Installation Manual Document Version 2016-03
