4.8.2 Parallel Connection of the Extensions
Any SLT can be connected in parallel with an APT or a DPT as follows.
Note
In
addition to an SLT, an answering machine, a fax machine or a modem (PC) can be connected in parallel
with an APT or a DPT.

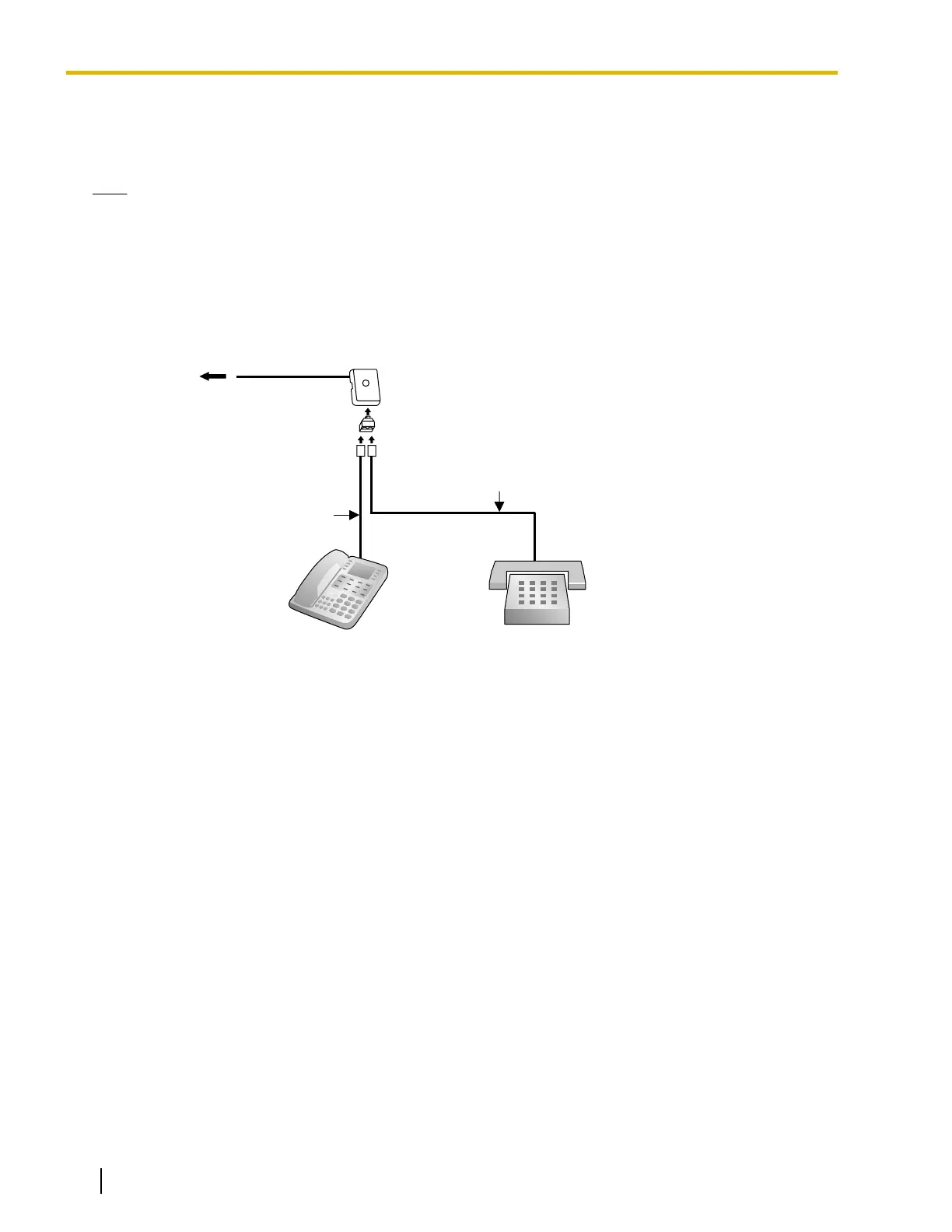

With APT
For parallel connection, eXtra Device Port (XDP) mode must be disabled for that port through system
programming. Refer to "15.1.2 Paralleled Telephone" and "6.1.11 Extension Port Configuration" in the Feature
Manual for further information.
To DHLC4 card
4-conductor wiring cord
Connect pins "T", "R", "D1",
and "D2".
2-conductor wiring cord
Connect pins "T" and "R".
SLTAPT
Modular
T-Adaptor
With DPT
Parallel mode or eXtra Device Port
(XDP) mode can be selected through system programming.
If XDP mode is enabled through system programming, parallel connection is not possible. Refer to
"15.1.2 Paralleled Telephone" and "6.1.11 Extension Port Configuration" in the Feature Manual for further
information.
134 Installation Manual Document Version 2016-03
4.8.2 Parallel Connection of the Extensions
