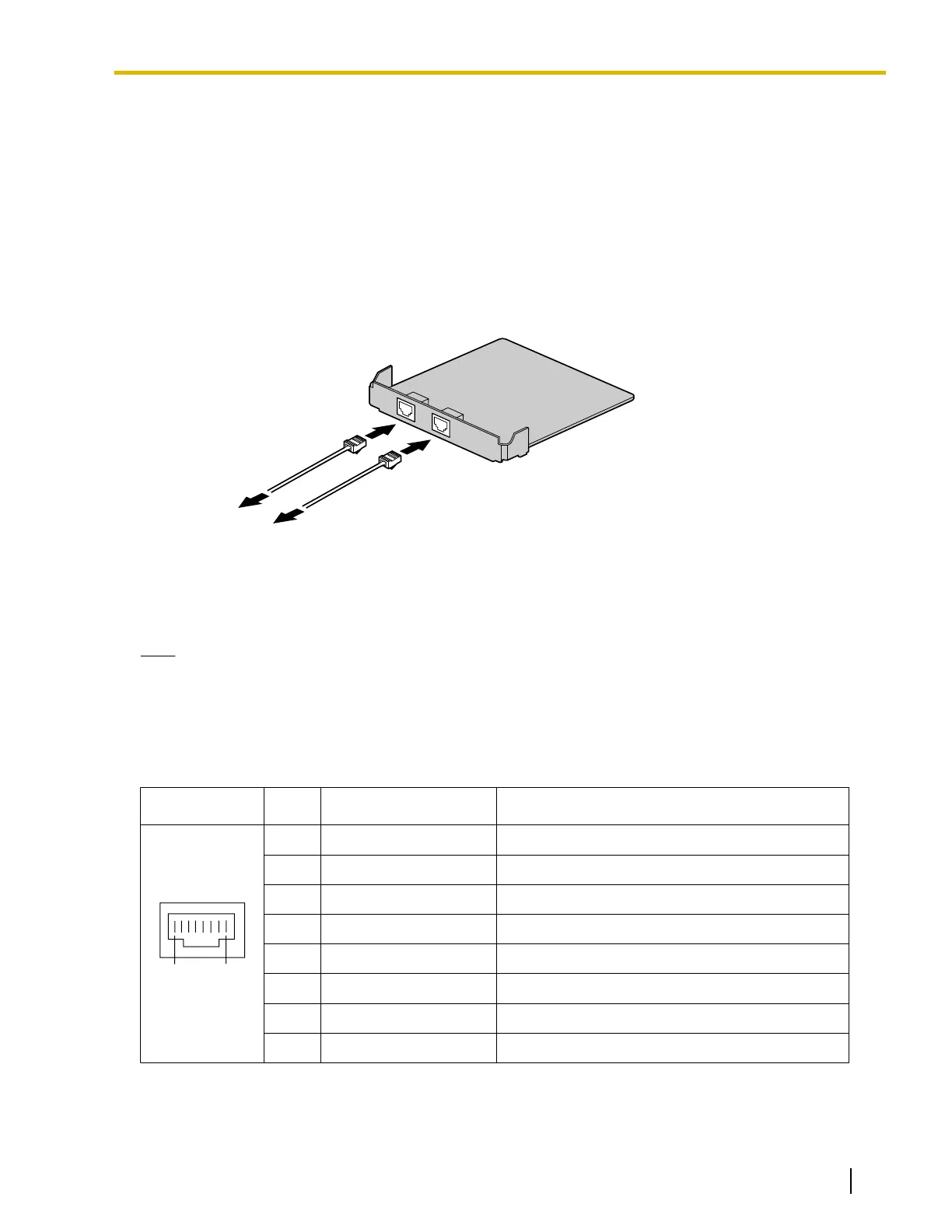

4.7 The Doorphone Card
4.7.1 DPH2 Card (KX-NS5162
)
Function
A doorphone card for 2 doorphone, 2 door opener, and 2 external sensor.
A Doorphone Card is installed in CO Line slot.
To doorphone/
external sensor
To door opener
Accessories and User-supplied Items
Accessories (included): Spacer ´ 3, slot cover ´ 1
User-supplied (not included): Copper wire
Note
For
details about connecting to a doorphone and/or door opener, refer to "4.9 Connecting to a Doorphone,
Door Opener, and/or External Sensor".
PIN Assignment
PIN Assignment for Doorphone Port
No. Signal Name Function
1 DP1 Doorphone 1 transmit
2 COM1 Doorphone 1 receive
3 SENS1a Sensor 1
4 DP2 Doorphone 2 transmit
5 COM2 Doorphone 2 receive
6 SENS1b Sensor 1 common
7 SENS2a Sensor 2
8 SENS2b Sensor 2 common
Document Version 2016-03 Installation Manual 131
4.7.1 DPH2 Card (KX-NS5162)
