Panasonic KX-NS Series Installation Manual

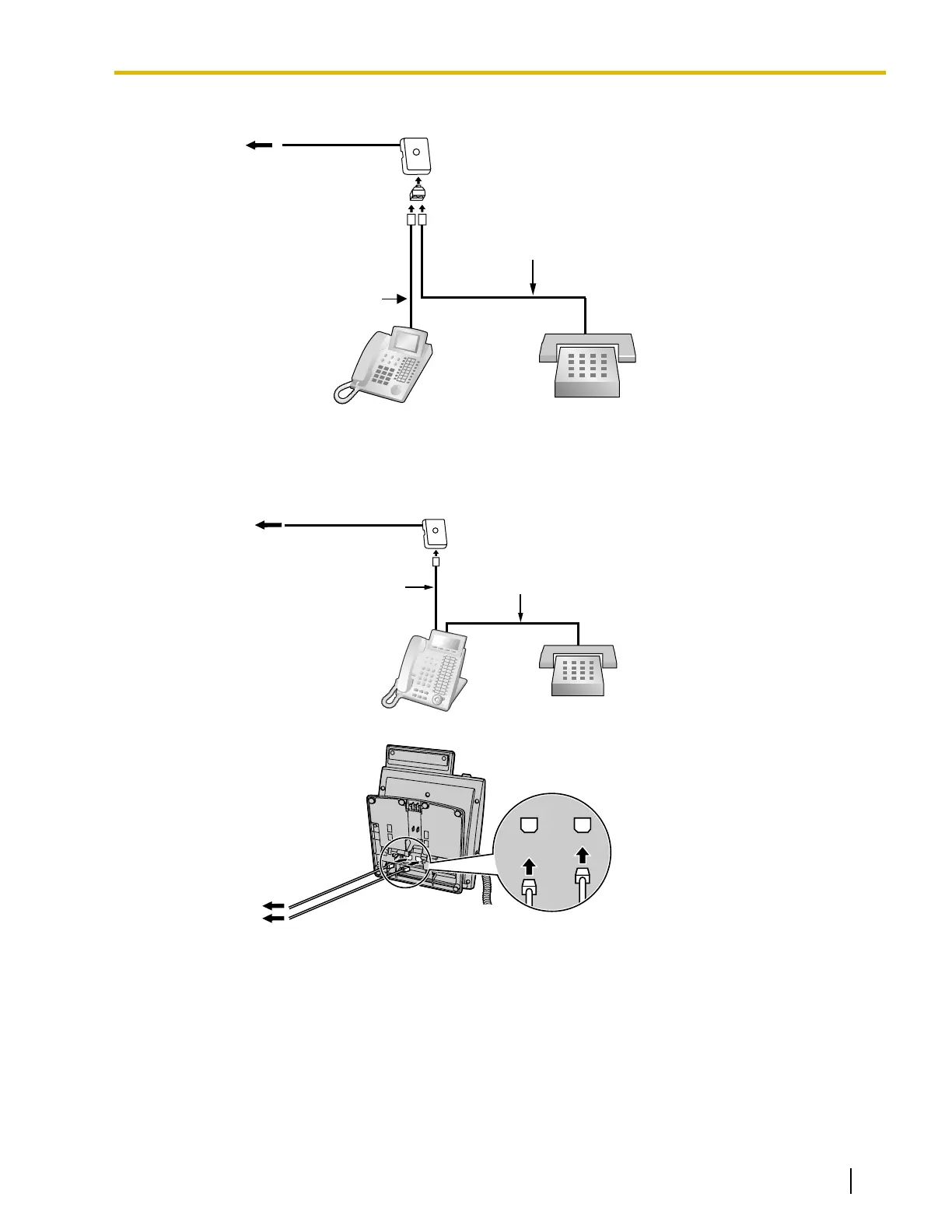

Using a Modular T-Adaptor
To DHLC4 card
SLTDPT
Modular
T-Adaptor
4-conductor wiring cord
Connect pins "D1" and
"D2".
2-conductor wiring cord
Connect pins "T" and "R".
Using an EXtra Device Port
Example: With KX-DT300 Series DPT
*1
To DHLC4 card
DPT SLT
To DHLC4 card
To SLT
2-conductor wiring cord
Connect pins "T" and "R".
4-conductor wiring cord
Connect pins "T", "R",
"D1" and "D2".
TO MAIN UNIT
/ PABX
TO TEL
*1
Available for KX-DT300 Series DPT (except KX-DT321), KX-T7600 Series DPT (except KX-T7665) and KX-DT500 Series DPT
(except KX-DT521).
Document Version 2016-03 Installation Manual 135
4.8.2 Parallel Connection of the Extensions
