4.3 The Mother Board and Expansion Cards
4.3.1 Mother Board
4.3.1.1 Mother Board in the Main Unit
Function
The
mother board is the preinstalled processing board with activation keys for CA Basic-Express for unlimited
users, use of 4 IP-PT, and 2 Unified Messaging ports. The Virtual Cards (CO line/extension) can be installed
in Virtual Slots of the mother board and can be activated with the activation keys. Also, the mother board
supports LAN connection so that IP telephones (IP-PTs, IP softphones, SIP phones) and PCs can be
connected on a private IP network.
Mountable Cards
• DSP Card (refer to "4.3.3 DSP Cards")
• SD Memory Card (refer to "4.3.2 SD Memory Cards")
• Remote Card (refer to "4.3.8 RMT Card in the Main Unit (KX-TDA0196)")

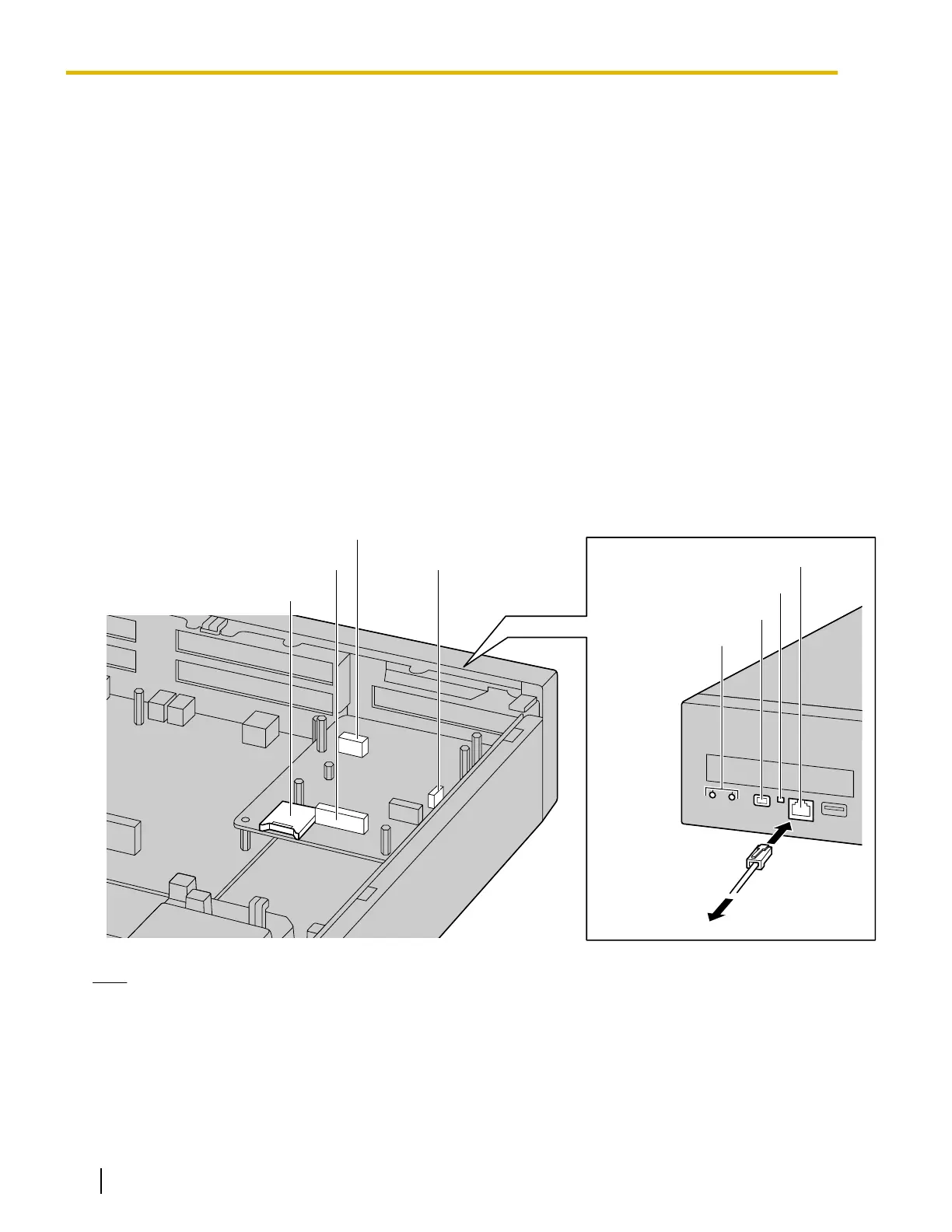

EXP-M Card Slot
DSP Card Slot
System Mode Switch
LEDs
LAN Port
LED
SD Card Slot
To LAN
RMT Card Slot
Note
• The
maximum length of the CAT 5/CAT 5e cables to be connected to the mother board is 100 m (328
ft).
• For installing and removing the SD Memory Card, refer to "4.2.6 Installing/Removing the SD Memory
Card".
• For details about Virtual Slots, refer to "2.3.3 System Capacity".
