8.5 Types of PBX Networks
This section gives an overview of the types of networks the PBX can participate in.
8.5.1 H.323 QSIG Network
This section gives an overview of
H.323 QSIG networks.

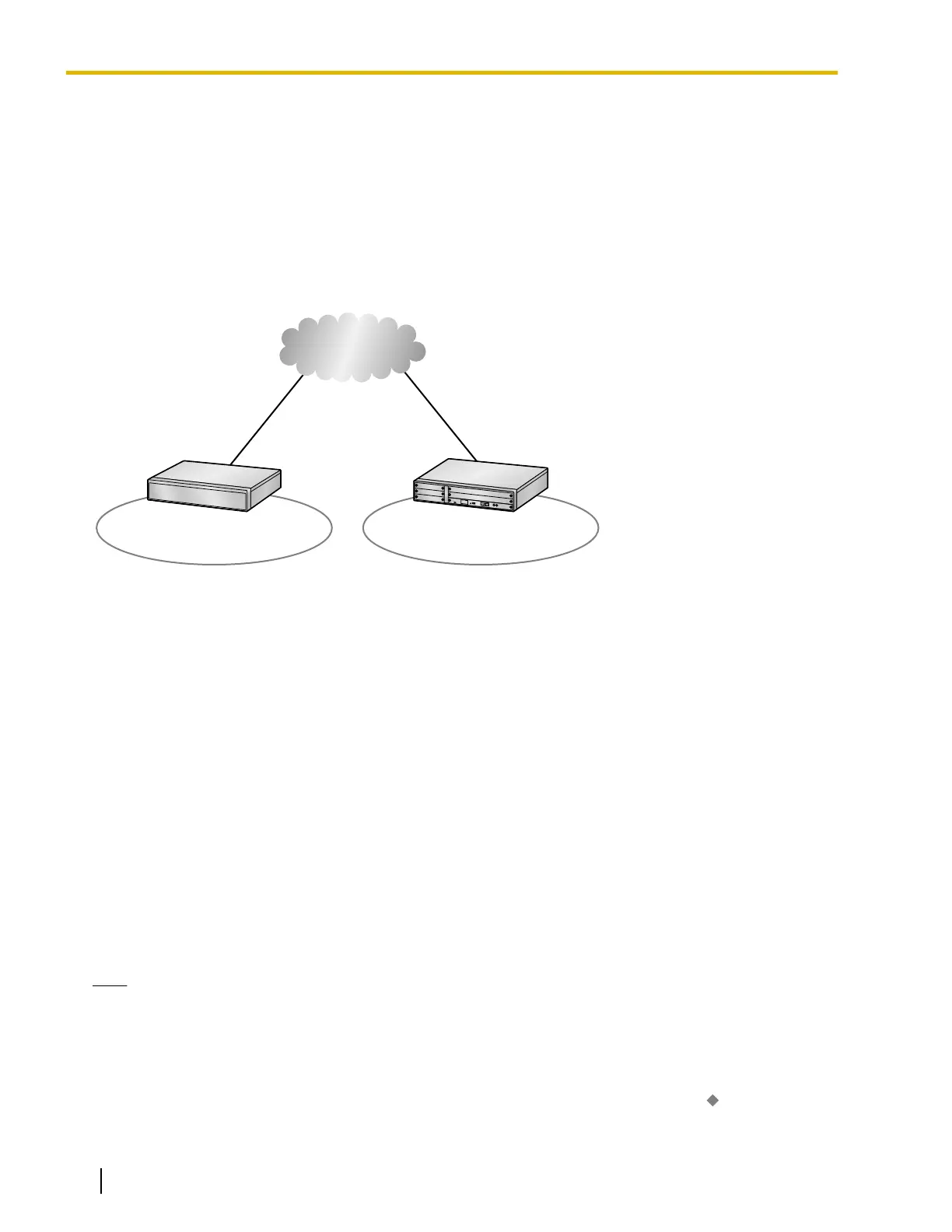

Image of an H.323 QSIG network:
Resources for Node 1
Node 1:
Main Unit*
1
Resources for Node 2
Node 2:
KX-NCP500
H.323 QSIG
Network
*1
KX-NS700
Features
• H.323 QSIG networks can include non
-KX-NS series PBXs (e.g., KX-TDE200, KX-NCP500).
• Resources are not available to extension users of other PBX without explicit configuration.
Conditions
• PBXs in an H.323 QSIG network must be connected over a private IP network.
Bandwidth Requirements
Refer to "8.3.3 Bandwidth Assessment".
Required Items
• V-IPGW16: Virtual 16-Channel VoIP Gateway Card
Note
• The
following activation key is required for enhanced QSIG network features (NDSS, Centralized Voice
Mail, etc.).
– KX-NSN002: Activation Key for QSIG Network (QSIG Network)
• For more details about H.323 QSIG networks, refer to "15.1.13 PRIVATE NETWORK FEATURES" in
the Feature Manual.
• For details about configuring and programming an H.323 QSIG network, refer to "
TIE Line
Access" in the PC Programming Manual.
