5.8.3 Installing SIP Phones at a Remote Site
If an SBC (Session Border Controller) is present on the same local network as the PBX, you can install SIP
phones at remote sites without needing to configure special network settings
(NAT traversal, etc.).
This section provides information about the procedure for connecting SIP Phones at a remote site that has
SBC hardware.
When SIP phones in remote sites use the internet to communicate with the PBXs, use the HTTPS protocol for
security. If the connection is within a VPN and protected, you may use the HTTP protocol.

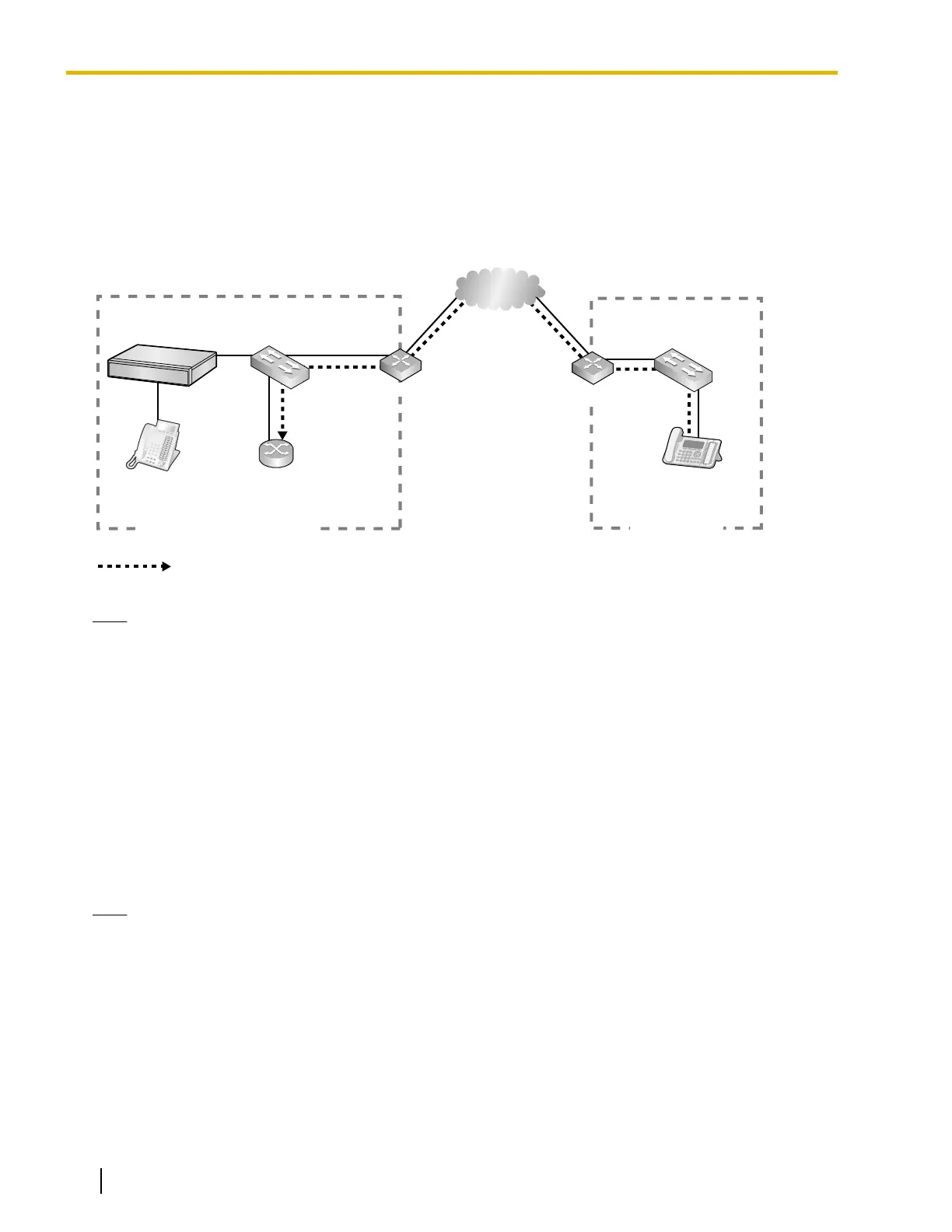

Main Site (Headquarters)
IP-PT
SBC
Router
Switching Hub
KX-UT series
SIP phone
Remote Site
Router
Main Unit*
1
Switching Hub
Internet
: RTP packets
*1
KX-NS700
Note
• Install the SBC in the same LAN as the PBX.
• A PBX can work with only one SBC. Also, multiple sites can share an SBC.
• The PBX can support up to 20 remote extensions at the same time via SBC when using the HTTPS
protocol.
• All
the RTP packets in between the main site and the remote site is routed to the SBC for security and
for IP address conversion.
• When settings of remote extensions being used at remote sites are changed at the PBX at the main
site, the reflection of the changes to the remote extension may require some time due to data transfer
protocols.
Programming the PBX
Follow the procedures below to configure remote port settings using Web Maintenance Console.
Note
For the procedures below, program WAN side IP information of the router at the main site.
This information is sent to KX-UT series SIP phones at the remote site after completing all programming.
For Site Property Settings
1. Click Setup ® PBX Configuration ® Configuration ® Slot.
2. Move the mouse pointer over System Property.
A menu will be shown under the mouse pointer.
3. Click Site.
4. Click the SIP Extension tab.
5. Click Advanced Setting for Remote SIP-MLT.
Program the WAN side IP information in Setting parameters assigned to Remote SIP-MLT.
230 Installation Manual Document Version 2016-03
5.8.3 Installing SIP Phones at a Remote Site
