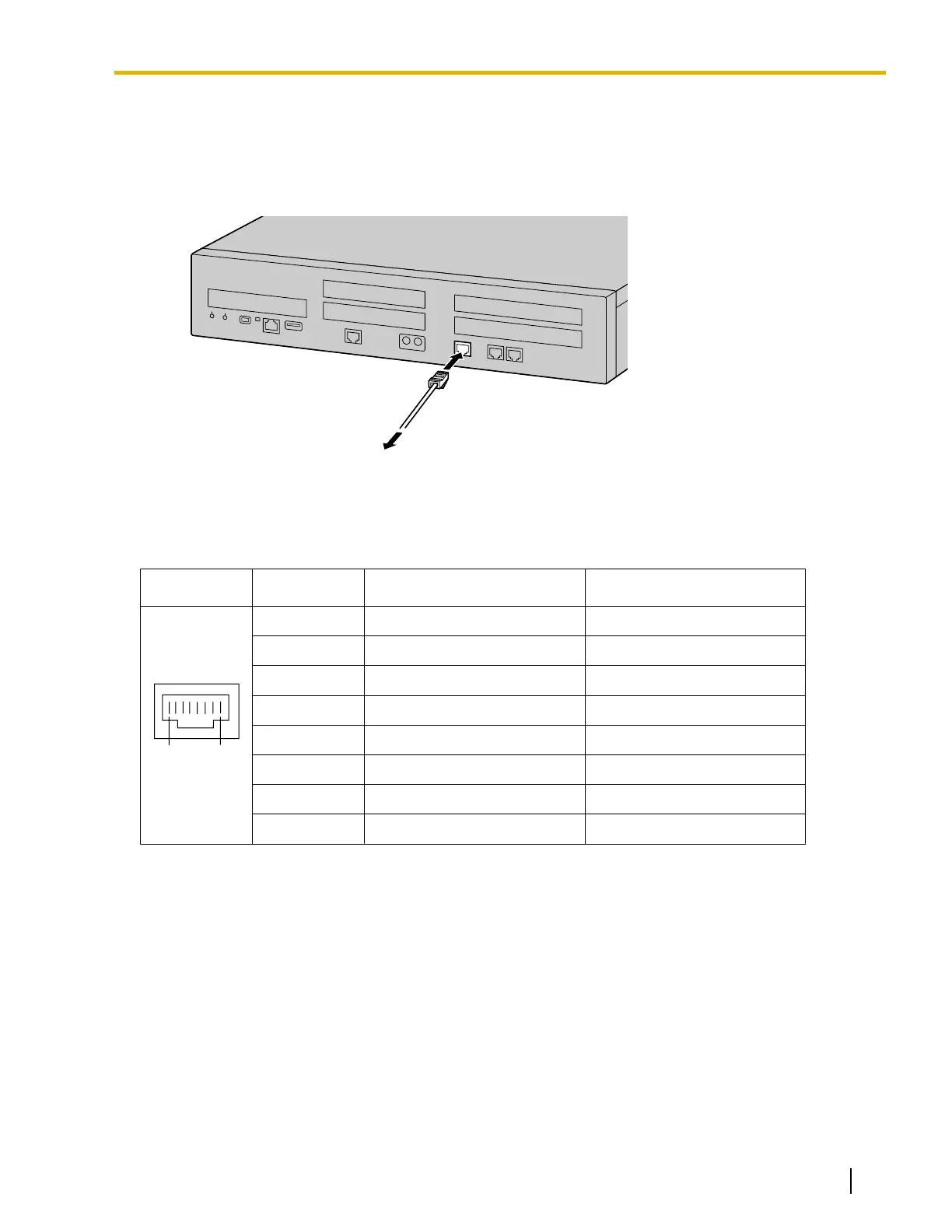

4.3.4 DLC2 in the Main Unit (installed by default)

Function

• 2 digital extension ports for DPTs and PT-interface CSs.

To Extension

Pin Assignments

For DLC port

No. Signal Name Function

1 D1 A Data port 1 (Low)

2 D2 A Data port 1 (High)

3 D1 B Data port 2 (Low)

4 Reserved –

5 Reserved –

6 D2 B Data port 2 (High)

7 Reserved –

8 Reserved –

Document Version 2016-03 Installation Manual 113

4.3.4 DLC2 in the Main Unit (installed by default)
