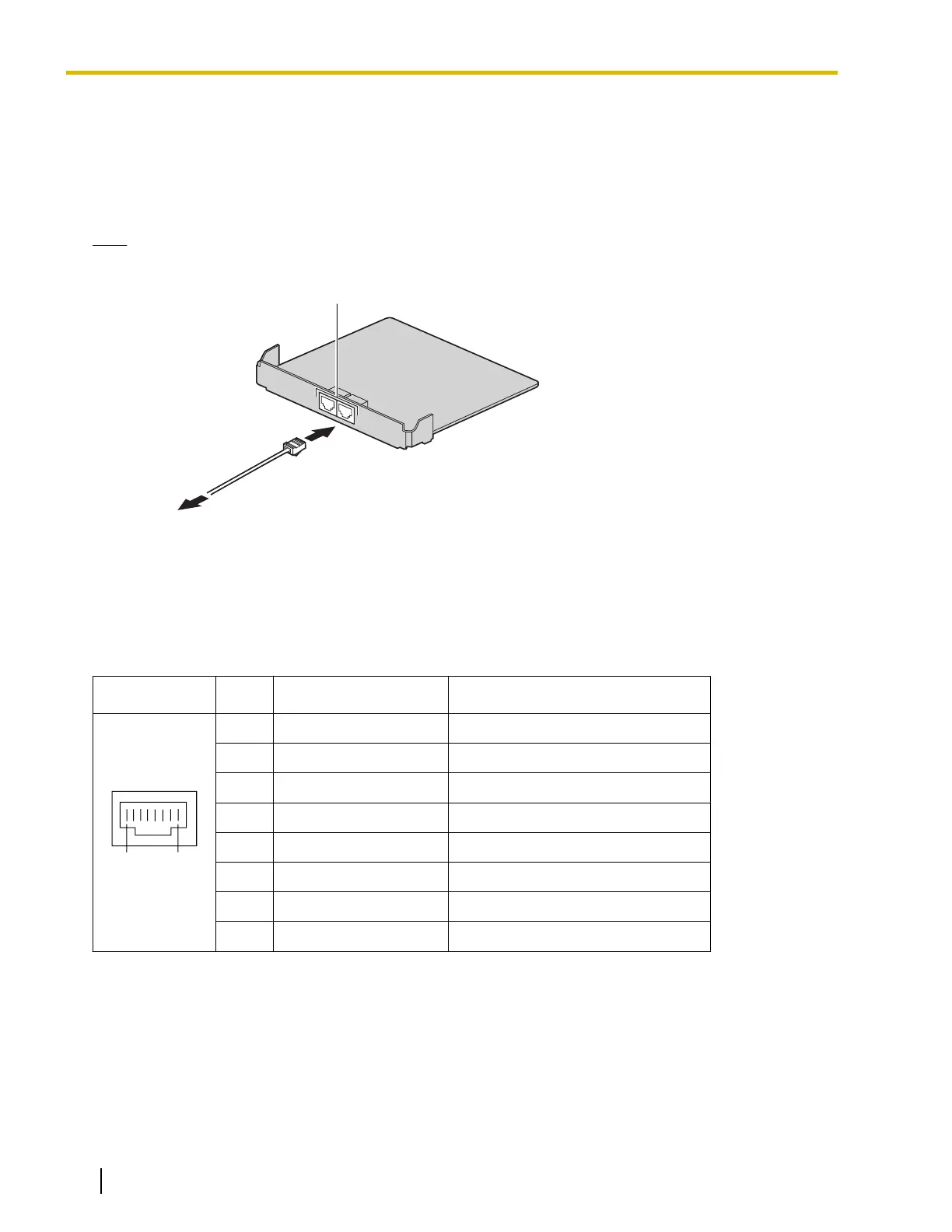

4.5.3 DHLC4 Card (KX-NS5170)
Function
4-port
digital hybrid extension card with Caller ID (FSK) for DPTs, APTs, SLTs, DSS consoles, and PT-interface
CSs.
Note
When using a DHLC4
card, the LPR software version must be 2.0 or later.
Accessories and User-supplied Items
Accessories (included): Spacer ´ 3, slot cover ´ 1
User-supplied (not included): RJ45 connector, Twisted pair cable
Pin Assignments
No. Signal Name Function
1 D1A Data port 1 (low)
2 D2A Data port 1 (High)
3 D1B Data port 2 (low)
4 TB Tip port 2
5 RB Ring port 2
6 D2B Data port 2 (High)
7 TA Tip port 1
8 RA Ring port 1
124 Installation Manual Document Version 2016-03
