4.8.3 Digital EXtra Device Port (Digital XDP) Connection
A DPT can be connected to another DPT on the Digital XDP connection. In addition, if the DPT is connected
to a DHLC4 card, it can also have an SLT connected in Parallel mode or XDP mode.
Note
• Both DPTs must be KX-DT300/KX-DT500/KX-T7600 series DPTs (except KX-T7640
). Note that the
KX-T7667 can only be connected as a slave DPT.
• Bluetooth
®
Modules or USB Modules must not be connected to DPTs in the Digital XDP connection.
• Parallel mode or XDP mode can be selected through system programming.
• If XDP mode is enabled through system programming, parallel connection is not possible. Refer to
"15.1.2 Paralleled Telephone" and "6.1.11 Extension Port Configuration" in the Feature Manual for
further information.

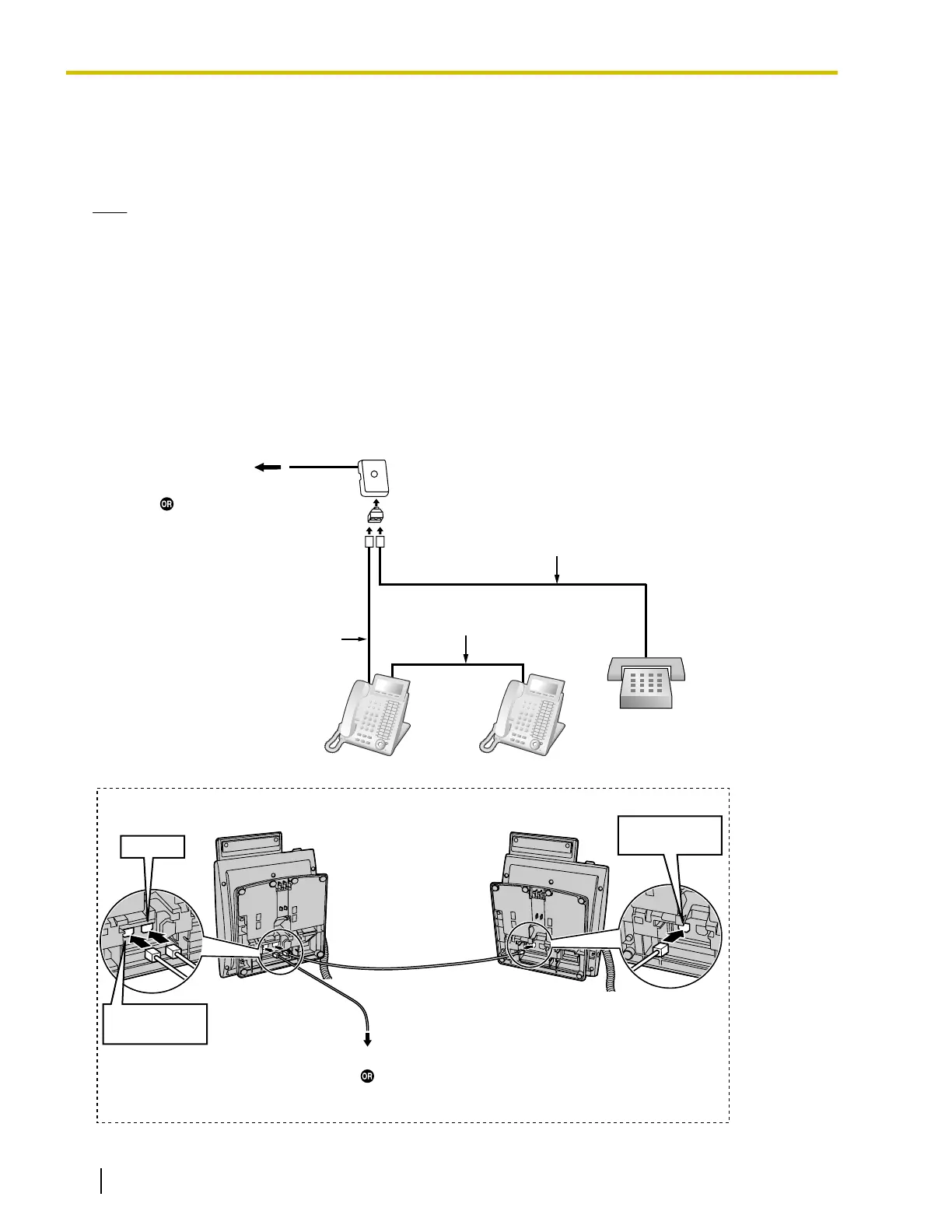

Example: With KX-DT300 Series DPT
Using a Modular T-Adaptor
Slave DPTMaster DPT
Cable Maximum Distance
26 AWG: 30 m (98 ft)
24 AWG: 50 m (164 ft)
22 AWG: 60 m (196 ft)
CAT 5: 50 m (164 ft)
Back View of DPTs
To DLC2/DLC8/DLC16 card
To DHLC4 card
(for connection of SLT)
TO MAIN UNIT
/ PABX
TO MAIN UNIT
/ PABX
TO TEL
To DLC2/DLC8/
DLC16 card
To DHLC4 card
(for connection of SLT)
4-conductor wiring cord
Connect pins "D1" and "D2".
Slave DPT
SLT
Master DPT
Modular
T-Adaptor
4-conductor wiring cord
Connect pins "D1" and
"D2".
2-conductor wiring cord
Connect pins "T" and "R".
136 Installation Manual Document Version 2016-03
4.8.3 Digital EXtra Device Port (Digital XDP) Connection
To Next Page
