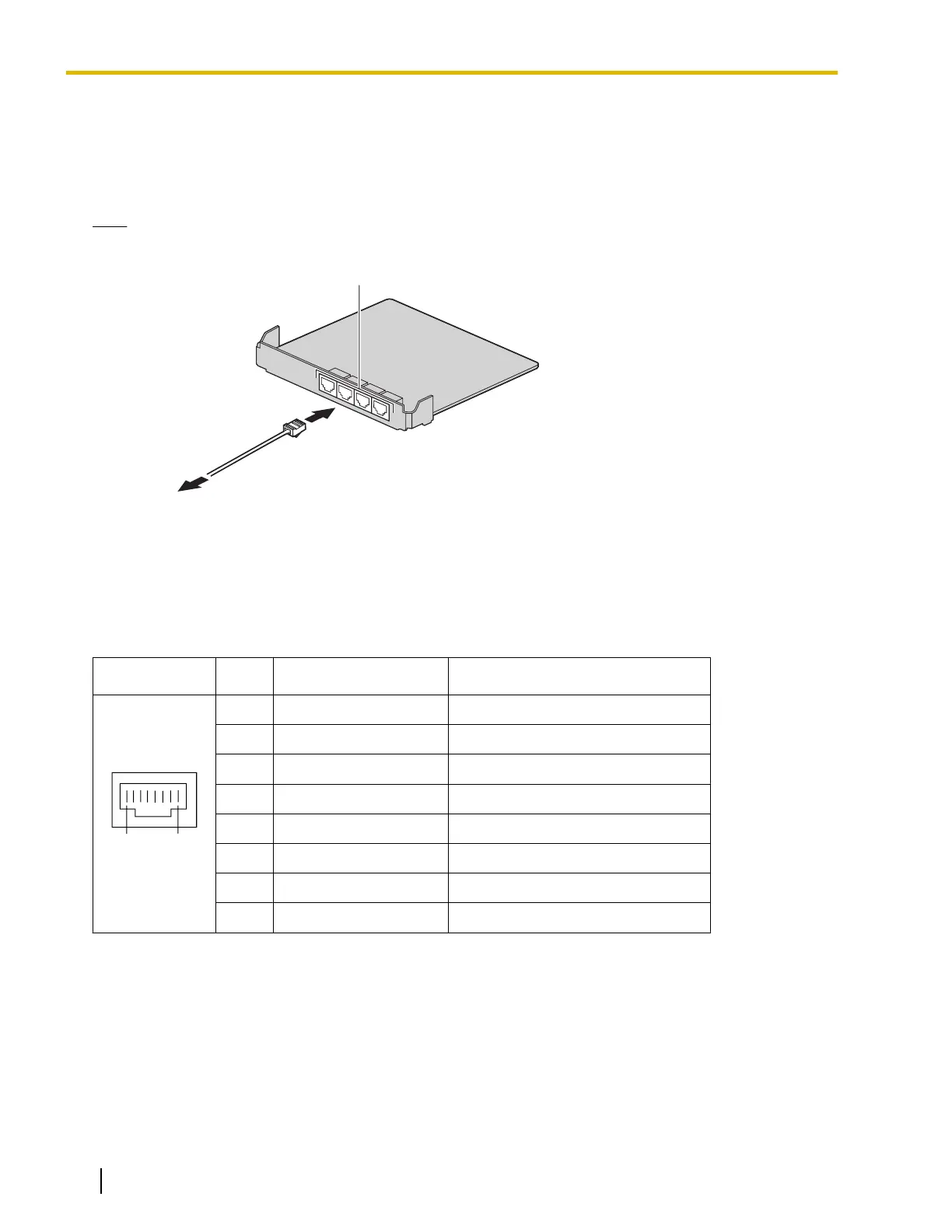

4.5.5 DLC16 Card (KX-NS5172)
Function
16-port digital extension card for DPTs and PT
-interface CSs.
Note
When using a DLC16
card, the LPR software version must be 2.0 or later.
Accessories and User-supplied Items
Accessories (included): Spacer ´ 4, slot cover ´ 1
User-supplied (not included): RJ45 connector, Twisted pair cable
Pin Assignments
No. Signal Name Function
1 D1A Data port 1 (Low)
2 D2A Data port 1 (High)
3 D1B Data port 2 (Low)
4 D1C Data port 3 (Low)
5 D2C Data port 3 (High)
6 D2B Data port 2 (High)
7 D1D Data port 4 (Low)
8 D2D Data port 4 (High)
126 Installation Manual Document Version 2016-03
4.5.5 DLC16 Card (KX-NS5172)
