3.

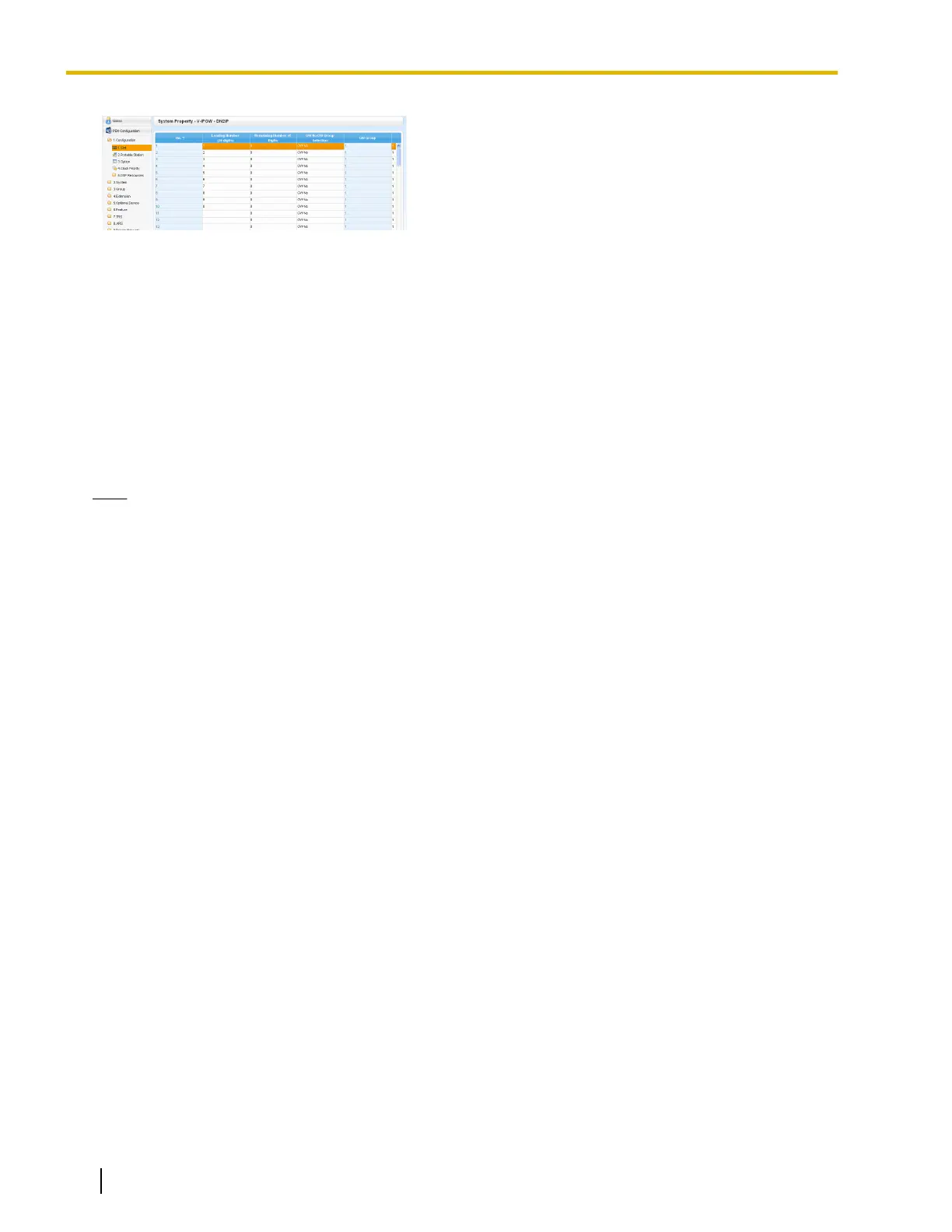

a. Click Setup ® PBX Configuration ®
Configuration ® Slot.
b. Click System Property.
c. Click the V-IPGW tab.
d. Click DN2IP.
e. When using the PBX code method:
In the Leading Number cell, type the remote PBX
code and starting digit of destination extension.
When using the extension number method:
In the Leading Number cell, type the remote PBX
code and starting digit of destination extension.
f. In the Remaining Number of Digits cell, type a
number
of digits to dial following the leading number.
g. In GW No./GW Group Selection, select GW No.
h. In the GW No. cell, select 1 (the gateway entry for
the destination gateway device at the remote PBX).
i. Click OK.
Note
For more details about gateway settings, refer to "9.2.1 PBX Configuration
—[1-1]
Configuration—Slot—System Property—Main—V-IPGW–GW Settings–Main" in the PC Programming
Manual.
178 Installation Manual Document Version 2016-03
5.5.2 Programming the Address Translation Table
