ELECTRICAL INSTALLATION
ACR7000 Controller Controller Installation Guide 41

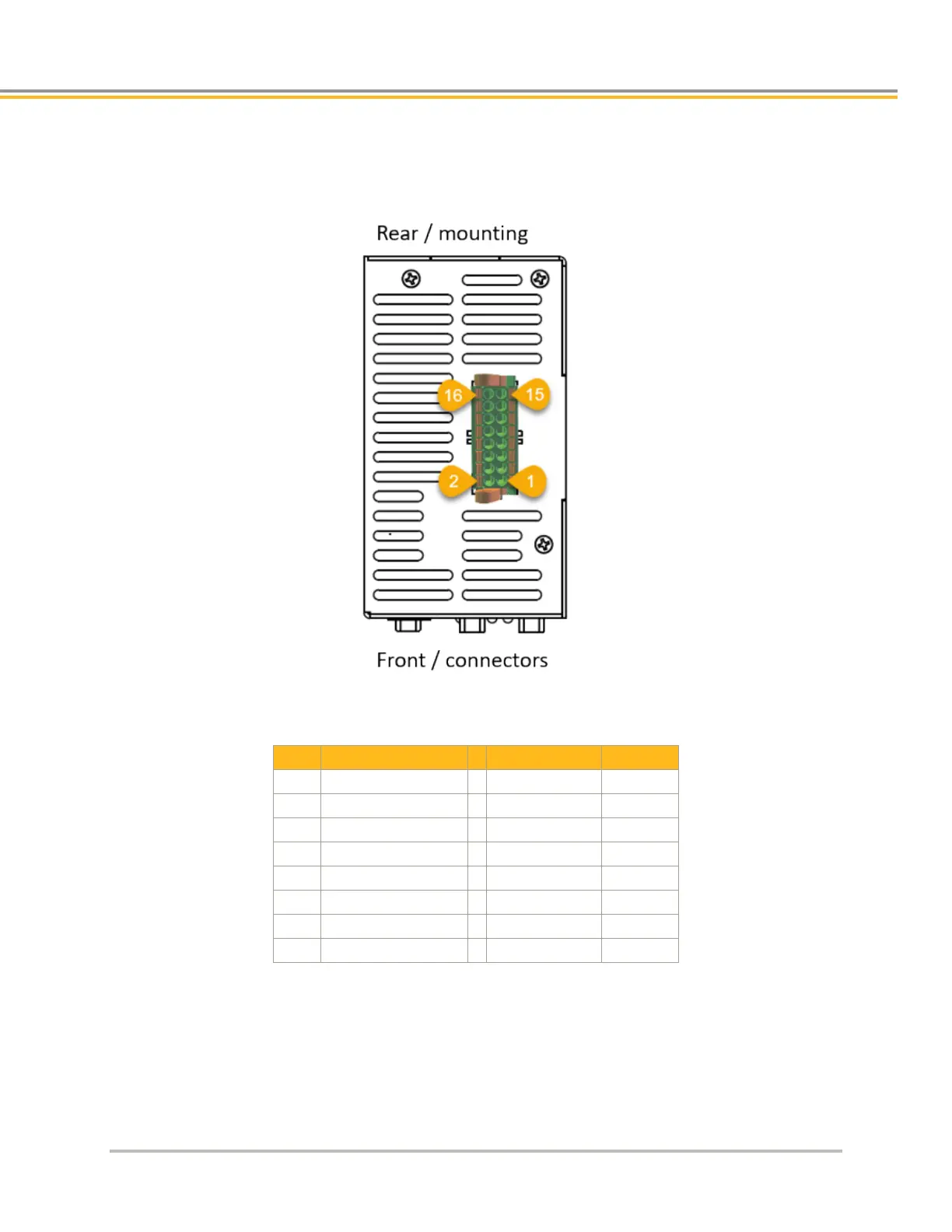

Analog Input Pinout
Pin Signal Signal Pin
16 Analog Ground 7 Analog Input 7 15
14 Analog Ground 6 Analog Input 6 13
12 Analog Ground 5 Analog Input 5 11
10 Analog Ground 4 Analog Input 4 9
8 Analog Ground 3 Analog Input 3 7
6 Analog Ground 2 Analog Input 2 5
4 Analog Ground 1 Analog Input 1 3
2 Analog Ground 0 Analog Input 0 1
