APPENDIX A
ACR7000 CONTROLLER Hardware Installation Guide 61

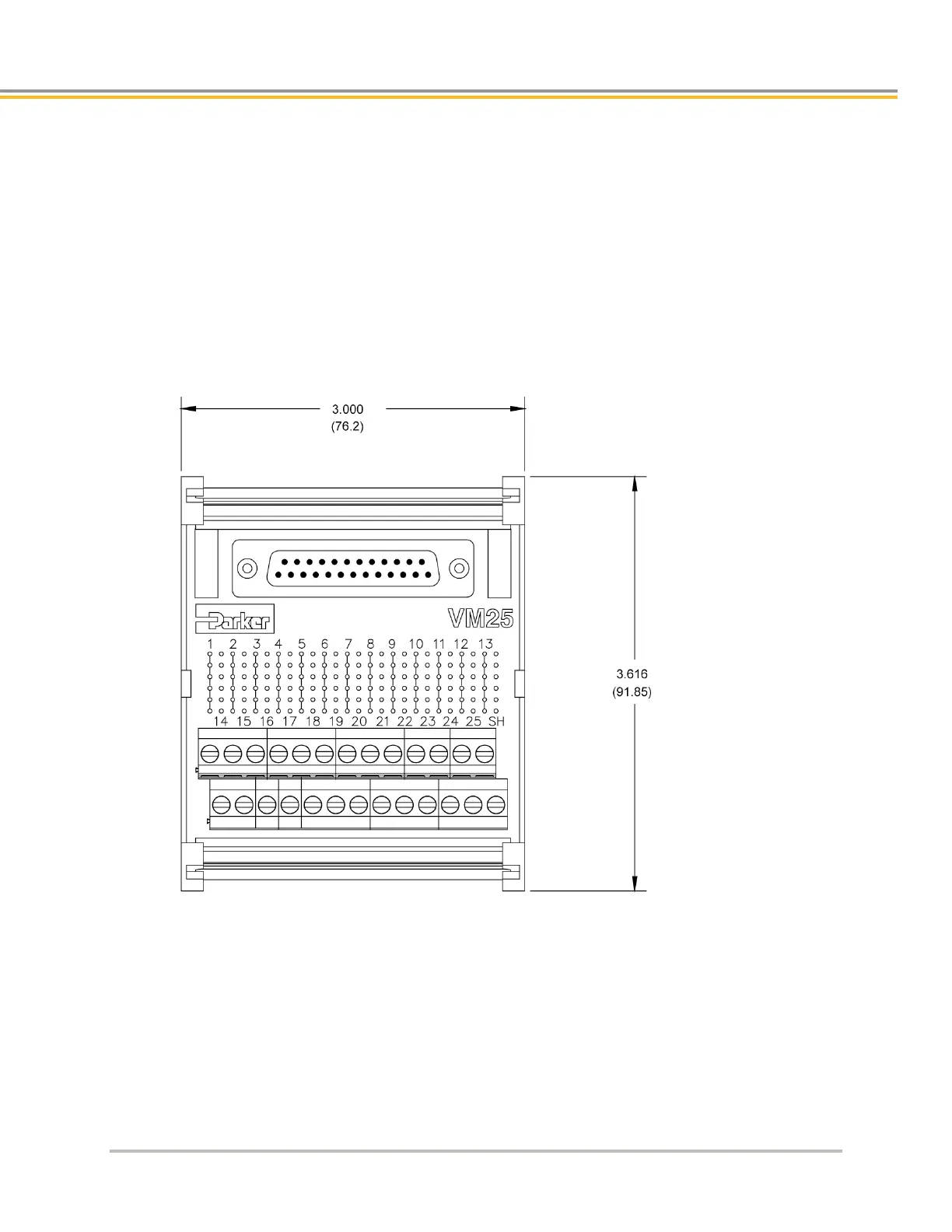

VM25 Breakout Module
The VM25 expansion module provides screw-terminal connections for I/O connectors. The VM25 comes
with a 2-foot cable (609.6 mm) that provides easy connection between the VM25 module and the 25-pin
I/O connectors. The VM25 expansion module is ordered separately (part number VM25-MC-02).
Notes
• The VM25 module ships with DIN-rail mounting clips installed.
• The overall cabinet depth with cable-bend radius is 5 inches (127 mm).
