Analog Inputs (- ANI Option)

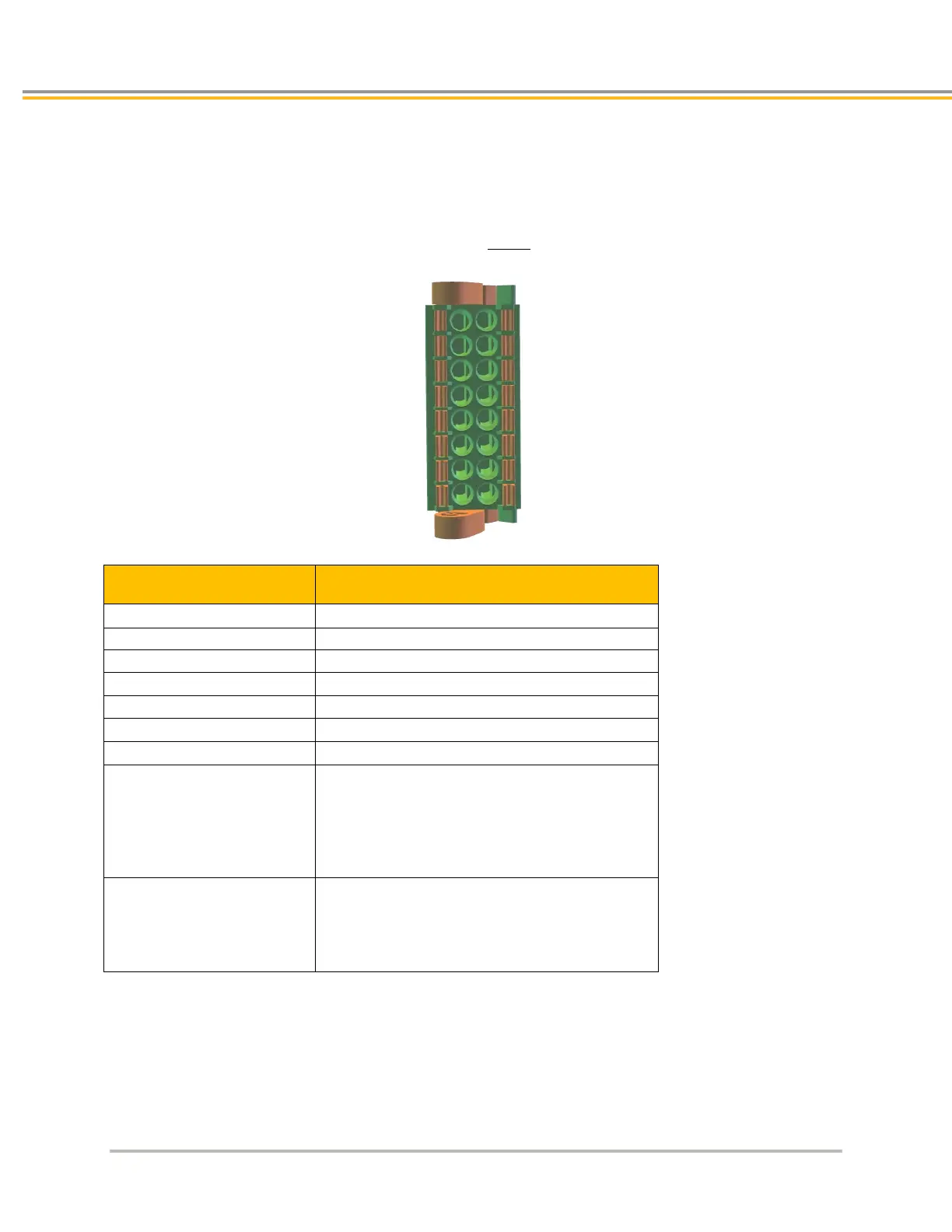

For controllers with the -ANI option, a removeable16-pin spring-cage connector provides access to eight single-
ended analog inputs, all referencing ground. The analog inputs can also be configured as four differential inputs by
connecting the input signals in pairs (connect to the inputs; do not connect to the grounds.)
Description Specification
Connector Type
16-Pin Push-in spring cage connector
Manufacturer Phoenix Contact
Phoenix Part Number 1790548
Connector Locking Lock and release lever
Wire range
16-24 AWG (0.2 mm² to 1.5 mm²)
Wire strip length
0.4 in (10 mm)
Wire Connection Method Push-in spring connection
Ferrules without insulating collar
Cross section: 0.25 mm²; Length: 5 mm ... 7 mm
Cross section: 0.34 mm²; Length: 7 mm
Cross section: 0.5 mm²; Length: 8 mm ... 10 mm
Cross section: 0.75 mm²; Length: 8 mm ... 10 mm
Cross section: 1 mm²; Length: 8 mm ... 10 mm
Cross section: 1.5 mm²; Length: 10 mm
Ferrules with insulating collar
Cross section: 0.14 mm²; Length: 8 mm
Cross section: 0.25 mm²; Length: 8 mm ... 10 mm
Cross section: 0.34 mm²; Length: 8 mm ... 10 mm
Cross section: 0.5 mm²; Length: 8 mm ... 10 mm
Cross section: 0.75 mm²; Length: 8 mm ... 10 mm
