ELECTRICAL INSTALLATION
26 ACR7000 Controller Installation Guide
Axis Connector Power Source
Each Axis (and Auxiliary Encoder) connector has a nominal +5 VDC power source to aid application installations.
The power source typically is used to power:
An external encoder
Optical inputs and/or outputs between the ACR7000 and an external drive
Description
Min
Max
Units
Continuous current, +5V
--
150
1
mA
Trip current, +5V
700
1200
mA
Voltage tolerance from +5V (@ 150 mA or less)
4.9
5.5
VDC
1. Maximum current draw per Axis/Encoder Connector is 250 mA, not to exceed a combined
1500 mA for eight axis connectors and two auxiliary encoder connectors.
Note: All parameters are at the connector pin.

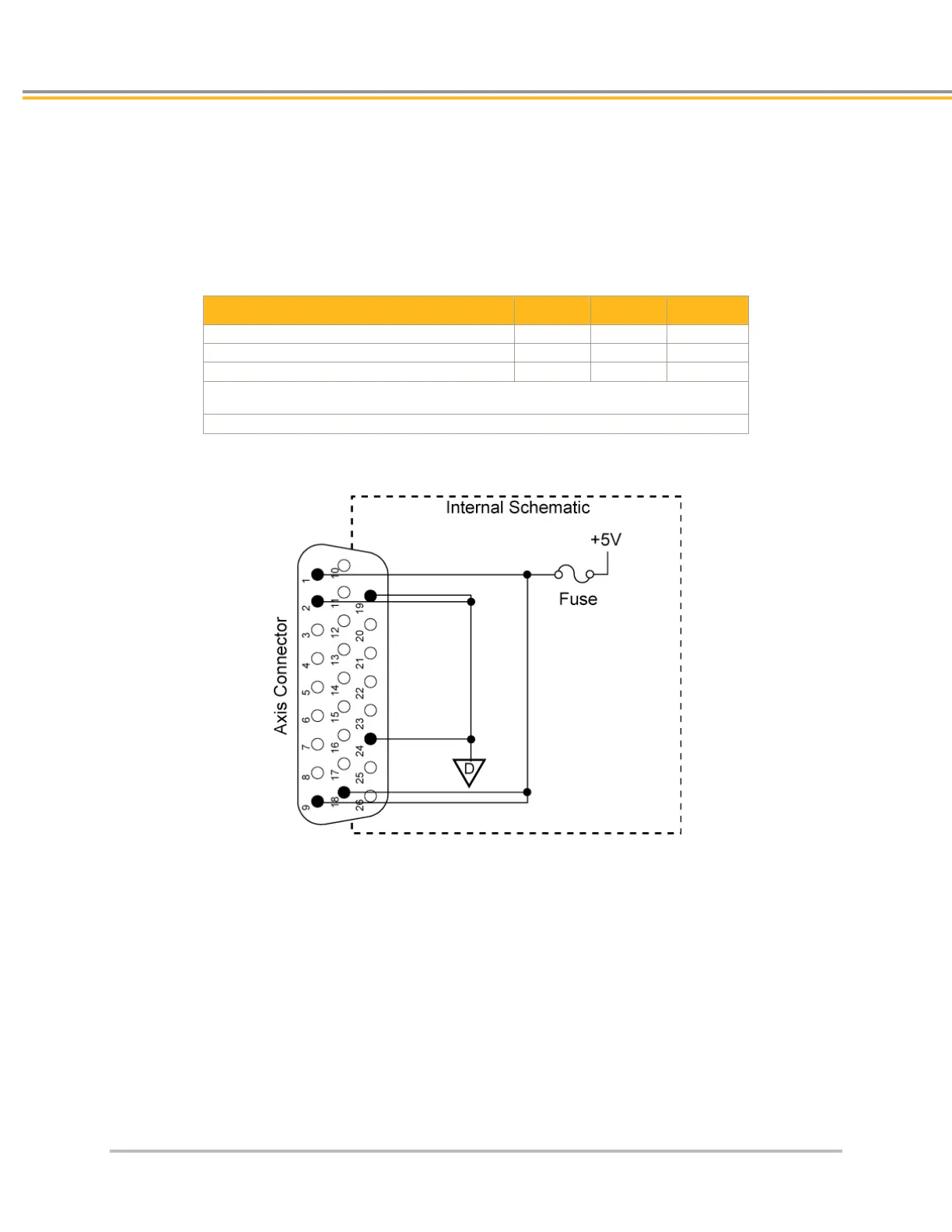

Equivalent Circuit for Axis Power Source
Axis Connector Fuse
The Axis connector has a +5V voltage source for powering an encoder and/or drive I/O, and includes a fuse, as
shown in Figure 8 above. In the event the +5V source shorts to ground, the internal reset-able fuse disables the
+5V source. When the short-circuit condition is removed and the fuse cools, the fuse automatically resets.
