APPENDIX A
60 ACR7000 Controller Installation Guide
VM26 Breakout Module

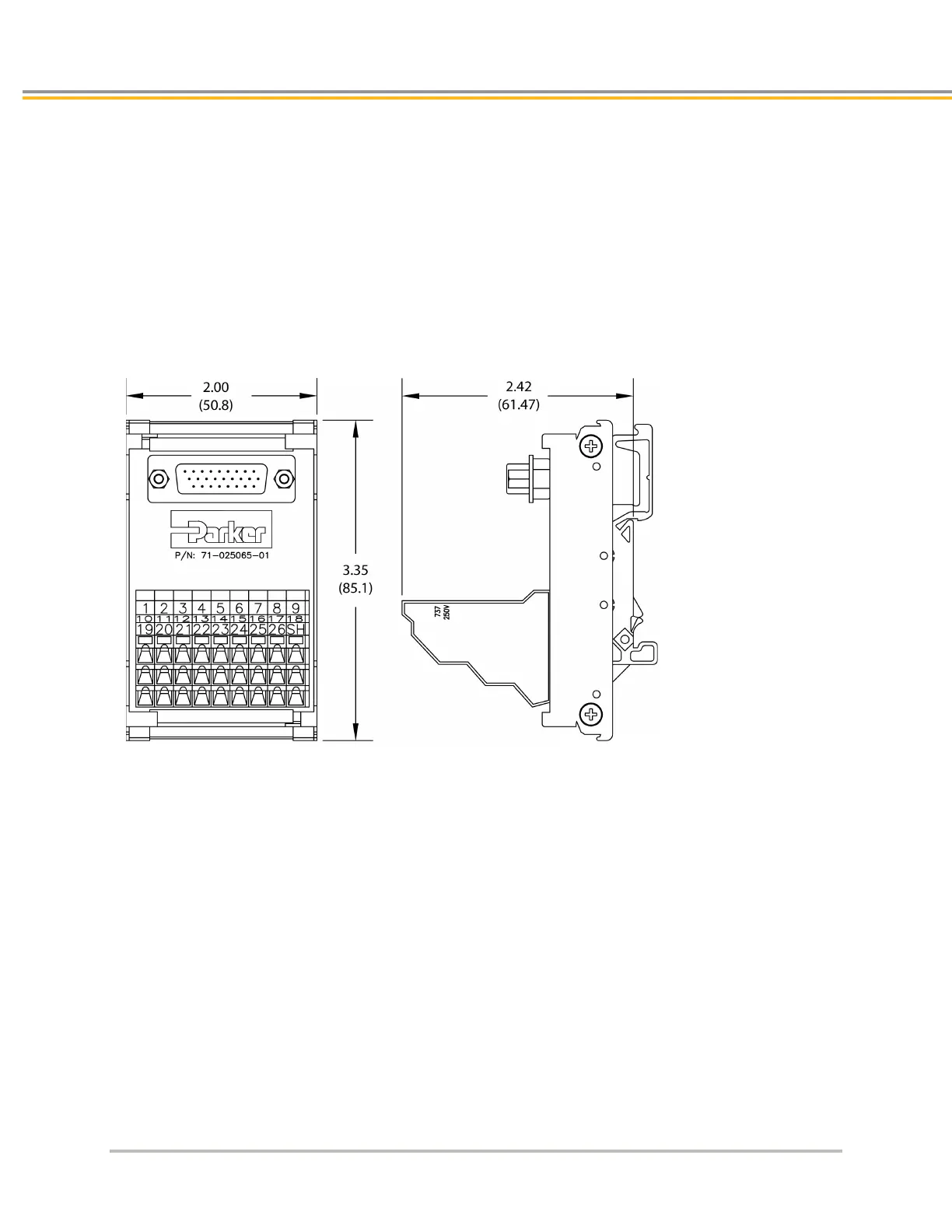

The VM26 expansion module provides screw-terminal connections for the Axis connections. The VM26
comes with a 2-foot cable (609.6 mm) that provides easy connection between the VM26 module and the
axis 26-pin connector. The VM26 expansion module is ordered separately (part number VM26-PM).
Notes
• The VM26 module ships with DIN-rail mounting clips installed.
• The overall cabinet depth with cable-bend radius is 5 inches (127 mm).
