APPENDIX A
IPA Hardware Installation Guide 103
Overview

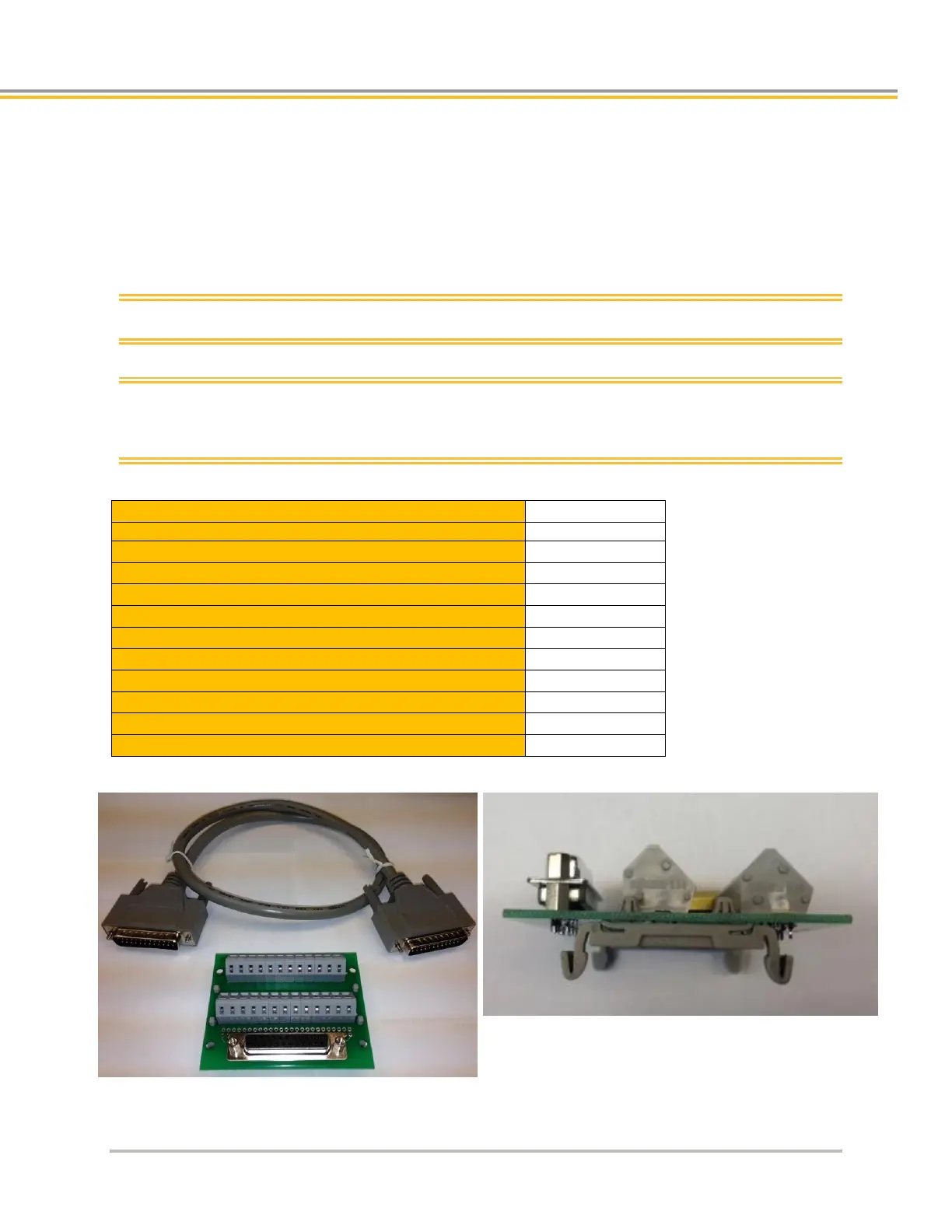

The VM25 Expansion Module provides screwcage clamp terminal connections for input/output on the 25-pin Drive
I/O connector. The VM25-MC-02 comes with a 2-foot cable that provides easy connection between the VM25 and
the drive’s 25-pin connector. The VM25 has clips for DIN-rail mounting. The VM25 is ordered separately from the
IPA (part number is “VM25-MC-02”).
Note: The VM25 module ships with DIN-rail mounting clips installed.
Note: While the module can support the wire gauge, current, and voltage listed above, the
molded cable that comes with this module uses 26 AWG conductors. Thus, the
connections to this module should not exceed the limitations of a 26 AWG conductor.
VM25-MC-02
Height (from top of DIN rail), in (mm)
DIN35-rail mounting clips
Overall cabinet depth with cable-bend radius, in (mm)
Ambient Operating Temperature
