Parker IPA04-HC User Manual

ELECTRICAL INSTALLATION
IPA Hardware Installation Guide 27
Connectors
All IPA models have the same set of connectors. Connector specifications are in this section and also “Chapter 7
Additional Specifications.”

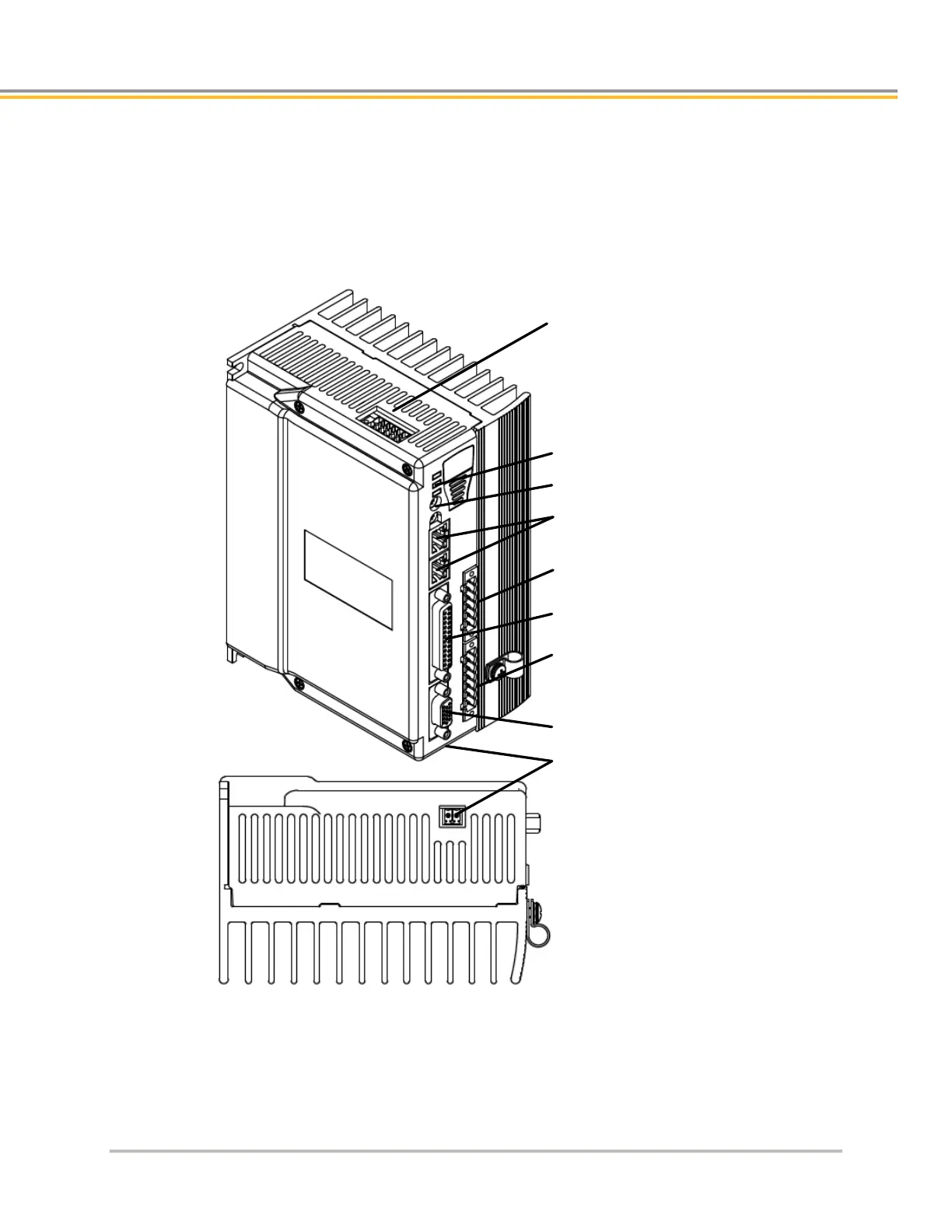

The following figure shows the name and location of the connectors.
Output Power - X1:
 Motor Output
 Break Relay
Input Power - X2:
 External Regeneration
 Control Power
 Motor Power (Mains)
Motor Feedback - X6
Drive I/O - X5
Ethernet - X3, X4
Address Switches
Status Indicators LEDs
Auxiliary - X7
 Torque Enable
 Torque Enable Bypass
Power
 Analog Inputs
 *Optional 24VDC Control
Power
Hiperface DSL - X8
Figure 4. - IPA Connectors
