ELECTRICAL INSTALLATION
IPA Hardware Installation Guide 35
X5 – Drive I/O Connector
The 25-pin Drive I/O connector has seven inputs and four outputs, which are described below. All drive input and
output signals are optically isolated.
Four general purpose inputs with both Anodes (+) and Cathodes (–) available
Three high-speed inputs with both Anodes (+) and Cathodes (–) available
Four General Purpose outputs available

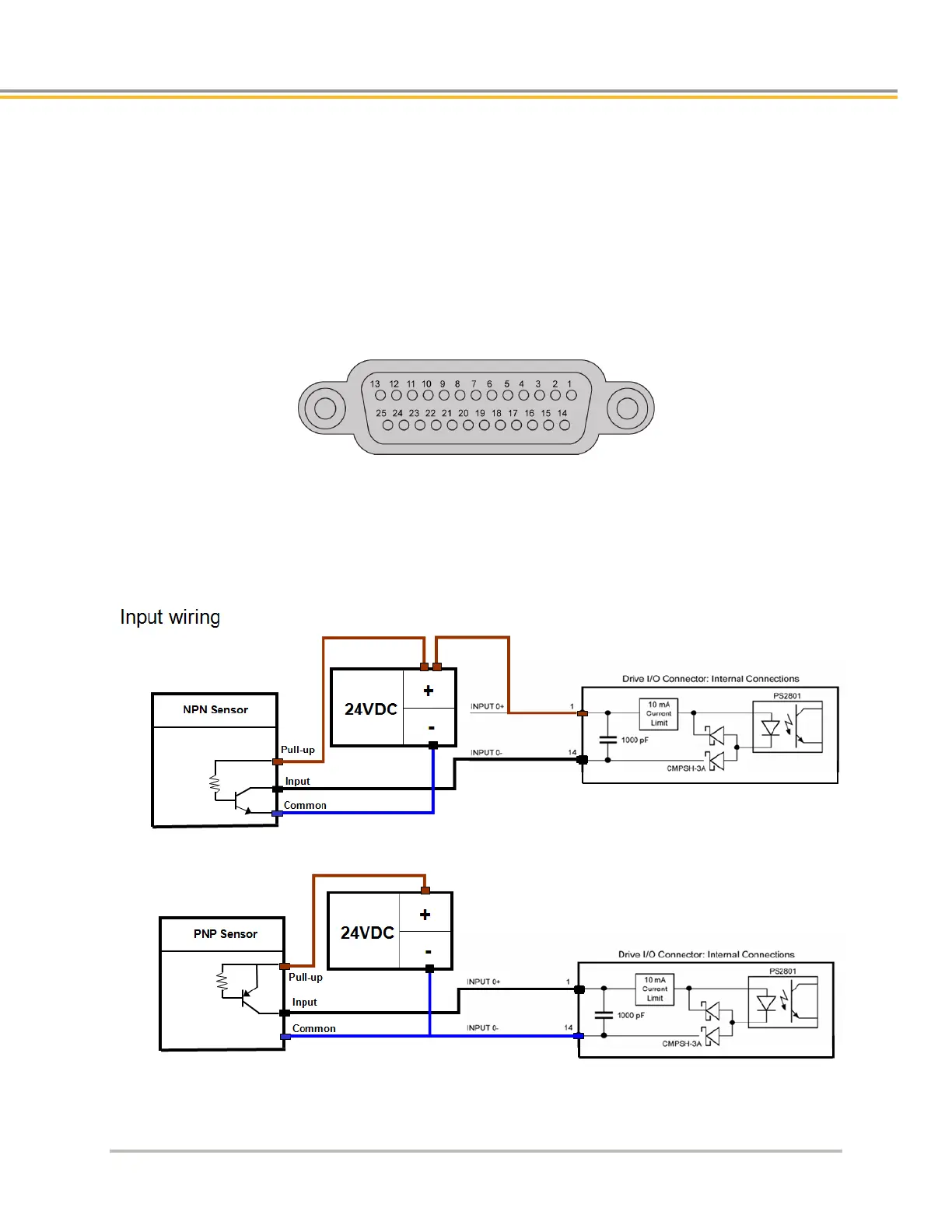

Figure 11. - Drive I/O Connector
Sample Wiring
To Next Page
