ELECTRICAL INSTALLATION
34 IPA Hardware Installation Guide
Linear Servo Motor Power and Feedback Cables
Motor Model
Description
Power Cable P/N
TxxxxxxxxNxxLAx
TxxxxxxxxNxxMAx
TxxxxxxxxNxxZAx
TxxxxxxxxNxxZAx
IForce & Ripped positioners with
connector box option, high flex
006-1740-mm
404LXRxxx
Linear servo positioner with
connector box, high flex
006-1741-mm
406LXRxxx
412LXRxxx
Linear servo positioner with
connector box, high flex
006-1740-mm
Motor Model
Description
Feedback Cable P/N
TxxxxxxxxNxxLAx
TxxxxxxxxNxxMAx
TxxxxxxxxNxxZAx
TxxxxxxxxNxxZAx
404LXRxxx
406LXRxxx
412LXRxxx
Linear servo positioner with
connector box, high flex
006-1889-mm
x in motor model number is place holder for any option (coil size, length, feedback, etc)
-mm denotes cable length in meters
Cable drawings available on website.
Linear servo positioned with connector box home and limit sensor cable P/N: 006-1742-01 (3.0m flying lead cable) or 006-1742-02 (7.5m flying
lead cable) or 006-1742-mm. For connections, see Appendix C.

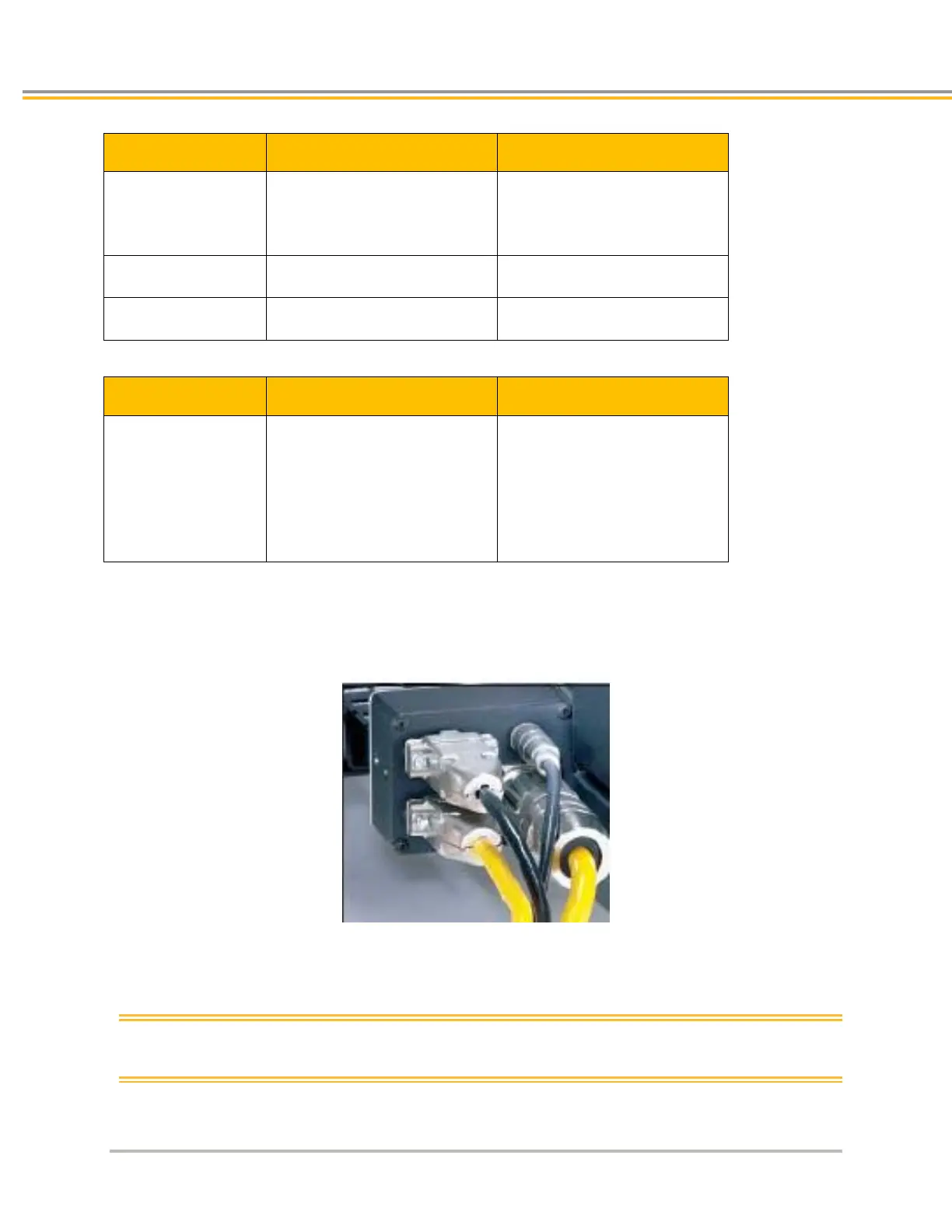

Figure 10. - Connector Box option
Note: For connecting T linear servo positioners (IForce or Ripped) with flying leads, and for
notes on using software to configure IForce or Ripped linear motors, see Appendix B.
