4.3 Location Requirements
When selecting a mounting location for the MultiController, the following should be taken into
consideration:
Avoid excessive sun exposure and if possible some form of environmental protection should be
provided.
If the unit is located in an area which is accessible to unauthorised personnel it is recommended
that access to the unit be restricted by some form of lockable cabinet.
4.4 Component Location

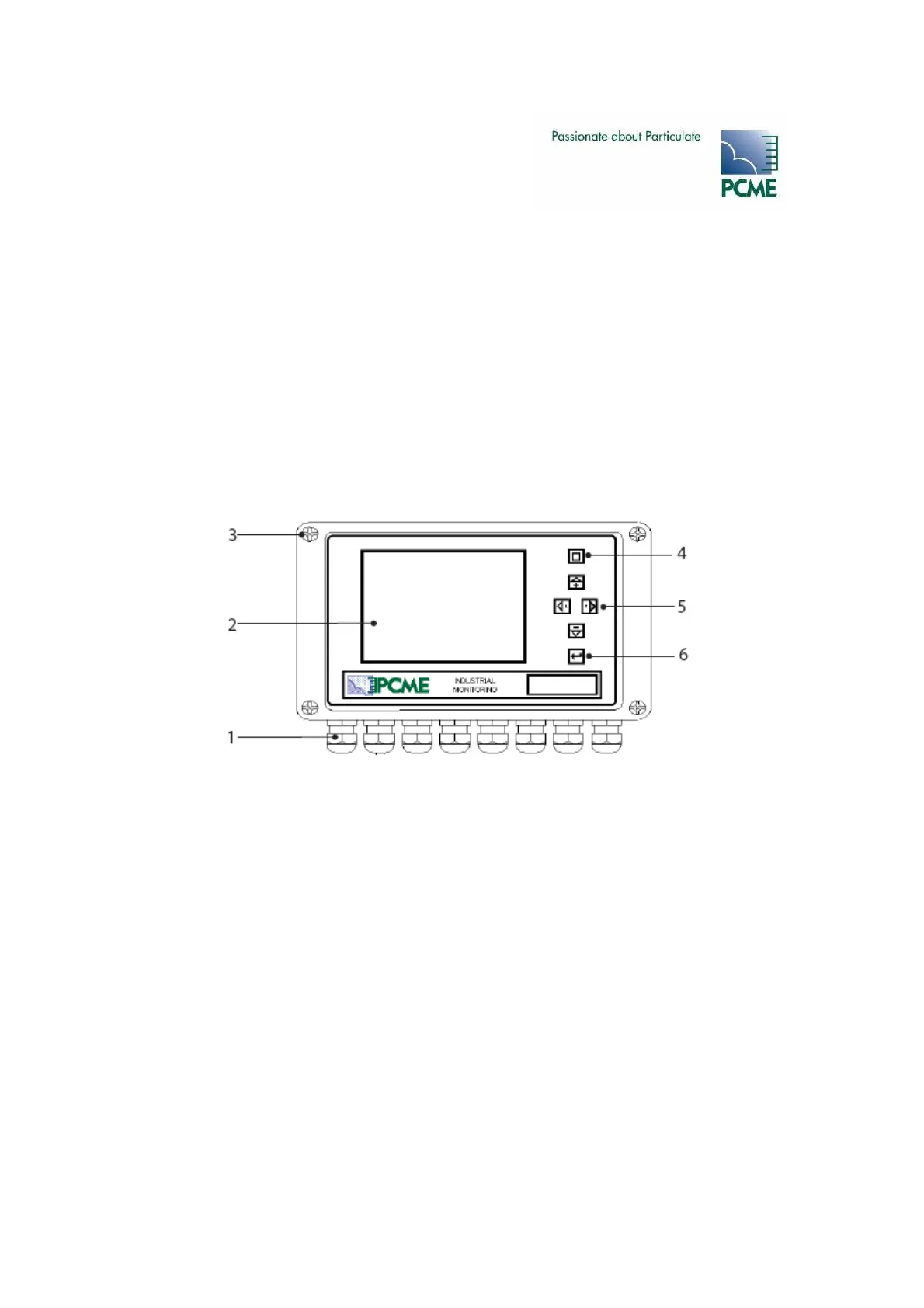

Figure 4-1 MultiController Front Panel
1. Cable entry gland (8 off) 4. Power-on indicator / alarm indicator
2. Back-lit graphical display (320 x 240 pixels) 5. Cursor keys (up, down, left, right)
3. Front cover securing screw (4 off) 6. Enter key
