"- LEVEL EXPERT- PELLENC POWER TOOL BATTERY" Workshop document
Issue 11/2016 ref. : DOCUMENT ATELIER_BATTERIE_EXP_OUTILS_PELLENC_V2_2016_ENG

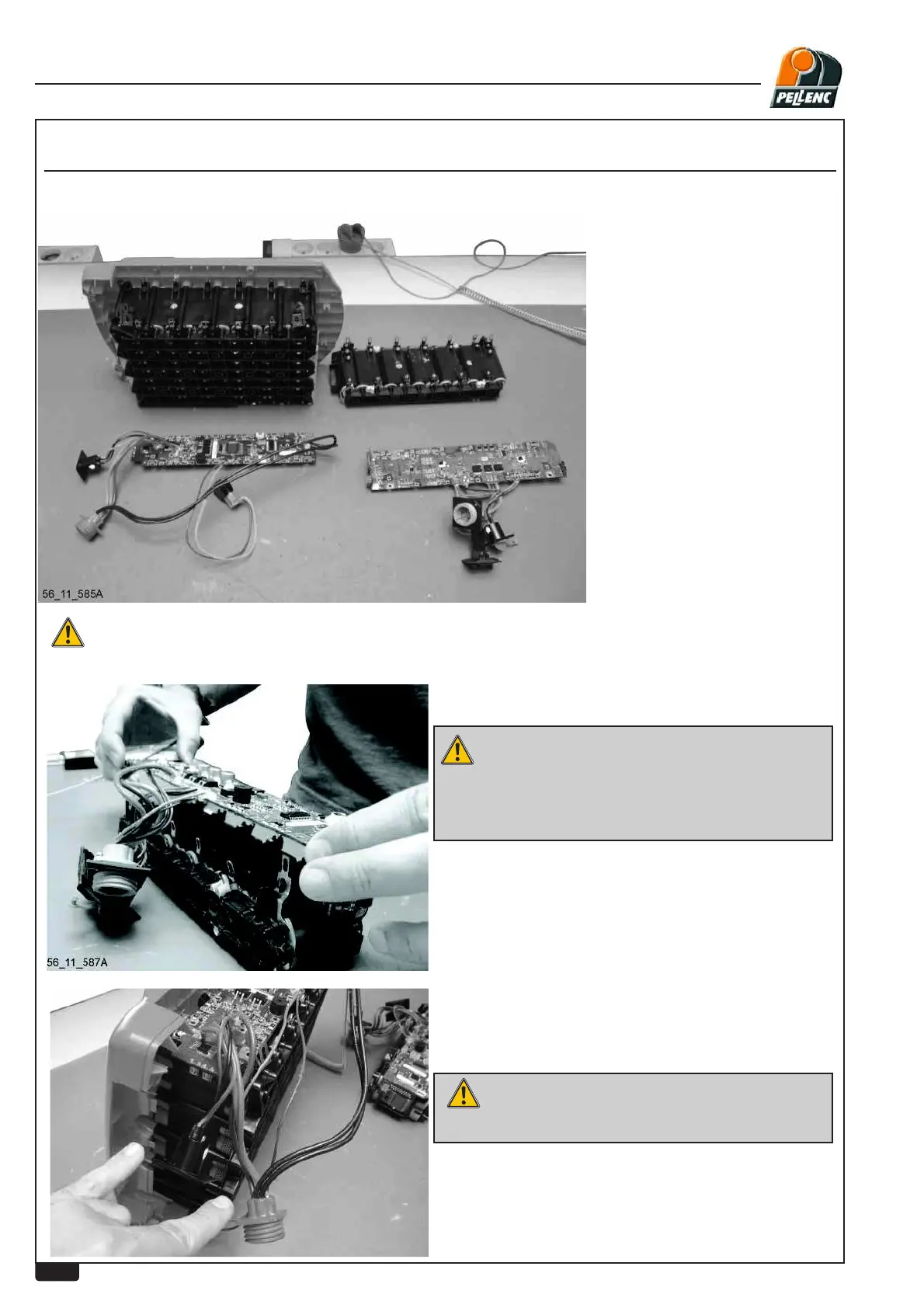

- Reinstall the board in its location, handling it by its
edge
-
To avoid a short circuit in case of contact with the board or the cells, remove the fuse from the new board
before installing the board.
- Verify the correct positioning of the board on the 2kW
batteries by noting the position of the connectors and
the switch relative to their locations in the casing.
-View of cell pack + board
LEVEL 4 - EXPERT LEVEL
REINSTALLING THE BOARD ON: BATTERIES 150 / 200 / 250 / 2KW / OLIVION BATTERY
DO NOT LET THE CARD COME INTO CON-
TACT WITH THE CELLS.
1. DO NOT PUT THE CARD BACK TO
FRONT
2. MAKE SURE THE TABS ARE NOT TOUCHING
THE CARD AS IT IS PUT IN PLACE
