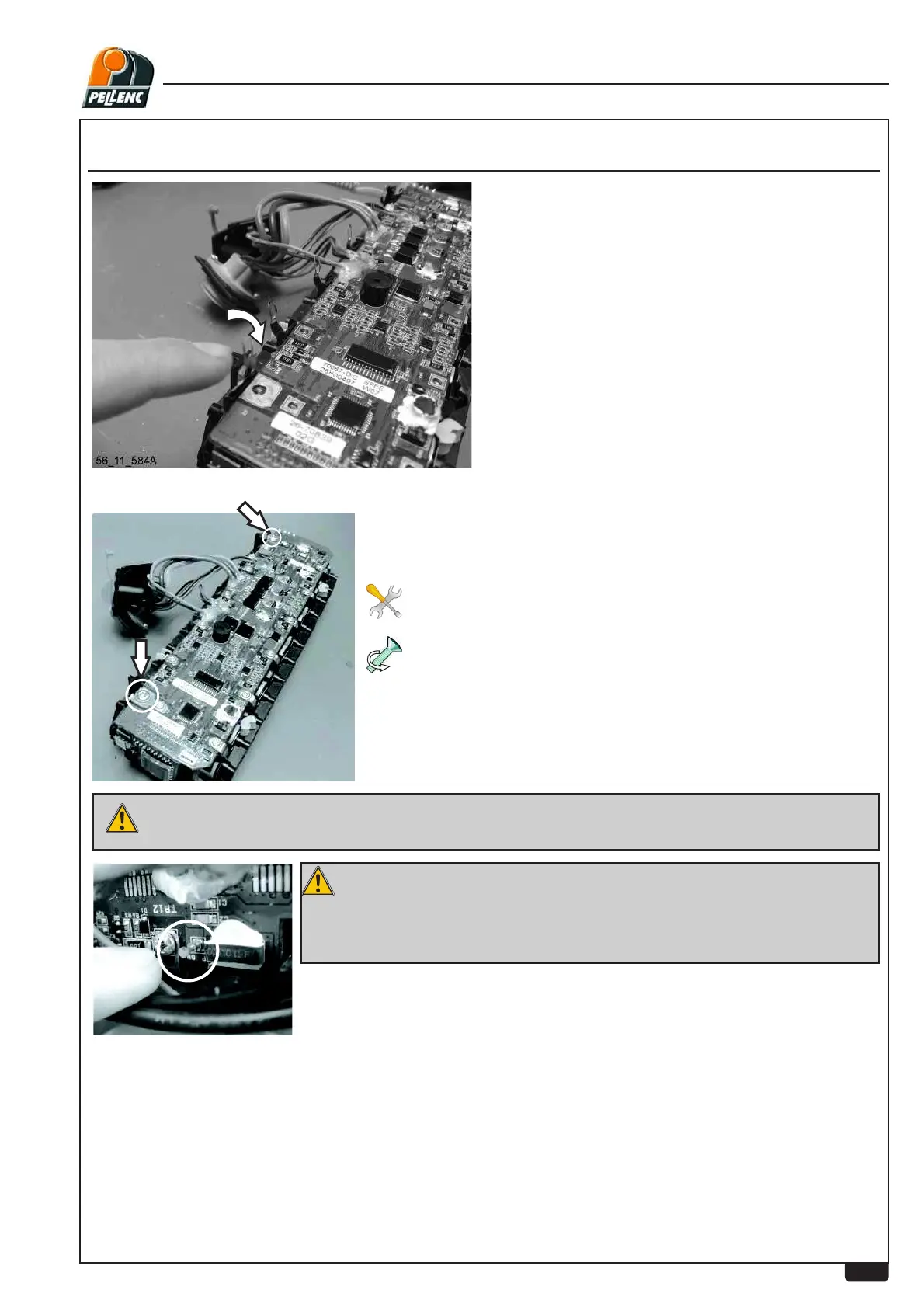

"- LEVEL EXPERT- PELLENC POWER TOOL BATTERY" Workshop document
Issue 11/2016 ref. : DOCUMENT ATELIER_BATTERIE_EXP_OUTILS_PELLENC_V2_2016_ENG
No. 20 Torx screwdriver
-
If there is a stripped thread, refer to the tab solder repair procedure
- Lower the board contact tabs
LEVEL 4 - EXPERT LEVEL
Caution! Locate the earth before tightening screws!
It can be found next to the location of the number 12 screw.
RISK OF SHORT CIRCUIT
Torque 1.20 Nm (with inserts)
Torque 1 Nm (with inserts)
- SCREW UP THE 2 POWER SCREWS (44V) STARTING WITH GROUND
TP1
