SGM700 Digitizer
Configuration Menu –422-
6.9 - - - 422 RS422 Port settings (SGM750 only)

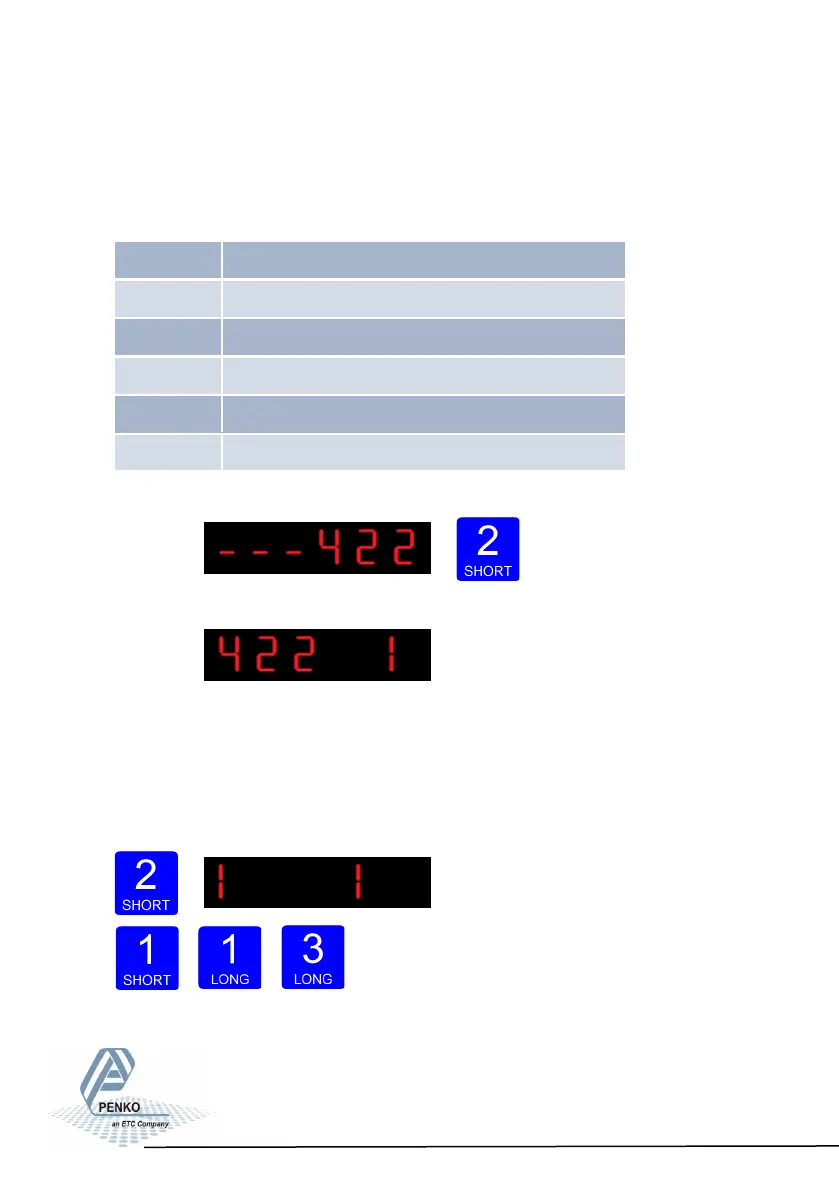

In this menu, the communication settings can be set for RS422 communication.
Options are:
Press key 2 <2 sec to
enter the RS422 port settings.
The following screen will be vissable:
In 422 1 you set the RS422 Protocol of the SGM750. Press key 2 <2 sec. to en-
ter 422 1. Set the Prot using key 1 and key 2 confirm by pressing key 3 >2 sec.
(options are: 1= None, 2= Printer, 3= ASCII, 4= NPV Slave, 5= Modbus-RTU, 6=
Modbus ASCII).For protocol descriptions please download PENKO Suite from
www.penko.com
Increase Decrease Confirm
56
422 1 Protocol
422 2 Address
422 3 Stopbits
422 4 Parity
422 5 Baudrate
422 6 Indicator
To Next Page
